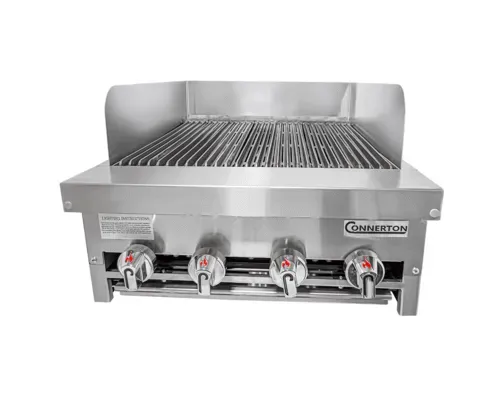

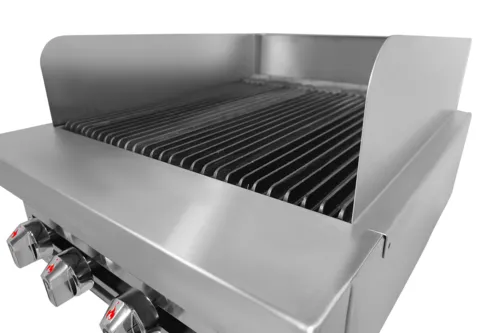

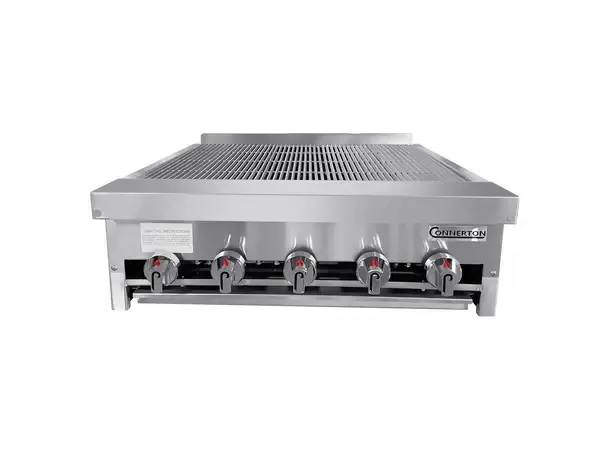

Connerton CRB-18-F Charbroiler
MPN#: CRB-18-F
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Description
Connerton CRB-18-F Description
Charbroiler, floor model, gas, 18"W x 29"D, cast iron radiants & top grates with grease flow channels, manual controls, 3/4" NPT rear gas connection, fully welded stainless steel body, fire box, front panel, drip pan, undershelf & adjustable feet, 3 Burners, 75,000 BTU, NSF, CSA
Standard Features:
- ¾ NPT Gas Inlet
- Heavy duty cast iron radiants
- 12,000 BTU Stainless Steel Burners
- Heavy Duty Charbroiler Brass Valves
- 18 Gauge #304 Stainless Steel Drip Pan
- 4.0” Natural, 11.0” Propane (Inches Water Column)
- 16 Gauge #304 Stainless Steel Body, Fully Welded
- Removable 18 Gauge #304 Stainless Steel Front Panel
- 14 Gauge #304 Stainless Steel Fire Box, Welded to Body
- Heavy Duty Cast Iron Top Grates w/ "Grease Flow Channels"
- 1-1/2” sq. X 16 Gauge #304 Stainless Steel Legs (Floor Model) tubing welded to body with Stainless Steel undershelf and adjustable feet
- Note: More Restaurant Equipment, Cooking Equipment & Commercial Grills are available.
Available Options
- 4” Legs (welded to body)
- Stainless Steel Plate Shelf
- 1/2" Steel Rolling Rod Glates
- 4" Removable Stainless Splash, sides and back
Options
Q & A
Connerton CRB-18-F Specifications
| Total BTU | 56000 - 104000 |
|---|---|
| Installation Type | Freestanding |
| Burner Style | Grates |
| Power Type | Natural or Propane Gas |
| Heating Source | Radiant |
| Brand | Connerton |
| Certifications | NSF |
| Number of Burners | 3 |
| BTU | 75,000 BTU |
| Heat | Gas |
| Usage | Heavy Duty |
| Width (in) | 180 |
| Height (in) | 360 |
| Depth (in) | 290 |
| Weight | 180 |
