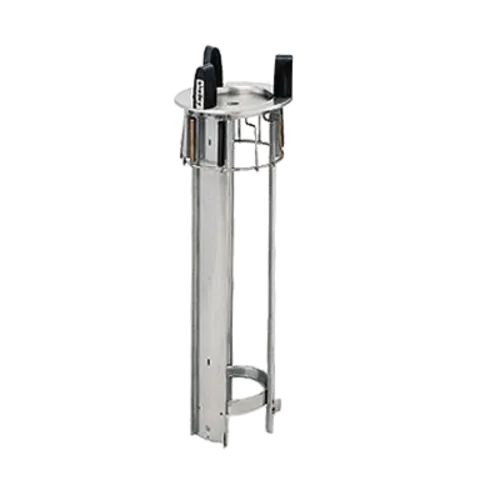

Delfield DIS-813-ET Dispenser

DIS-813-ET
Delfield DIS-813-ET Dispenser
Free Freight
Price $636

You will earn 906 Reward Points.

You will earn 636 Reward Points.


Delfield
More from Delfield
PayPal CREDIT
Specs
BrandDelfield
Height (in)28
Weight24
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Description
Dispenser, Even Temp Heated Dish, drop-in type, single self-elevating dish dispensing tube, maximum dish size 8-1/8" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter, 10-7/8", flange diameter 11-1/2", cUL, UL, NSF
Standard Features:
  • Spring supports to be stainless steel
  • High impact plastic guide posts mounted to flange
  • One year parts and 90 day labor standard warranty
  • Flange, channels and bottom to be integrally welded
  • Carrier head made of welded rods with a removable top plate
  • Top flange, bottom brace and vertical side channels are stainless steel
  • Self-leveling mechanism, field adjustable by adding or removing springs
DIS-ET/QT Series Only
  • 4’ cord and plug
  • Filtered air intake
  • Outer stainless steel jacket
  • QT- Shall have a stainless steel cover
  • On/off switch and adjustable thermostat
  • Convection heating module and fan motor
  • ET temperature range is 120-140°F (49-60°C)
  • QT temperature range is 150-170°F (66-77°C)
Options & Accessories:
  • Special voltages
  • Hold-down rod for dispenser tubes
  • Shorten dispenser tubes to special length
  • Stainless steel tube cover (500-725 sizes only)
  • Stainless steel outer jacket for dispenser tubes-non-heated (standard on ET or QT)
  • Non-marring adjustment rods for oval dishes and various dish diameters (813–1450 sizes only)
  • Stainless steel dome cover with access to dishes (813-1450 sizes only; standard on QT models)
  • 12.00” (30cm) dia. stainless steel dish dispenser tray (DIS-1200, DIS-1200-ET and DIS-1200-QT only)
Specifications:
Dispenser tube shall have three vertical side channels, bottom brace and top supporting flange of stainless steel. Flange, channels and bottom brace shall be integrally welded together. Flange shall have 3 guide posts molded from high impact plastic. Self-leveling mechanism shall be field adjustable by adding or removing stainless steel extension springs on perimeter of vertical side channels. The dish carrier head shall be stainless steel welded rods with a removable stainless steel top plate. Tube shall suspend in a 28.00” (71cm) high space. Capacity of tubes shall be approximately 72 dishes, with a maximum stacking height of 24.00” (61cm). Dis-Et even temp heated dispensers have a stainless steel outer jacket. Unit shall be supplied with 4’0” (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase. The tube shall have its own convection heating module consisting of a single 700 watt heating element and fan motor, located in the center of the interior bottom cavity. Air intake has a filter. The tube shall have an adjustable thermostat inside the motor housing and an ON/OFF switch on one of the dish guide posts. Unit requires a minimum of 1” (2.5cm) clearance at bottom for air circulation. Unit shall maintain temperature between 120°F–140°F (49°C–60°C). DIS-QT quick temp heated dispensers have a stainless steel outer jacket and cover. Unit shall be supplied with 4’ (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase. The tube shall have its own convection heating module consisting of a single 700 watt heating element and fan motor, located in the center of the interior bottom cavity. Air intake shall have a filter. The tube shall have an adjustable thermostat inside the motor housing and an ON/OFF switch on one of the dish guide posts. Unit requires a minimum of 1” (2.5cm) clearance at bottom for air circulation. Unit shall maintain temperature between 150°F–170°F (66°C–77°C).
