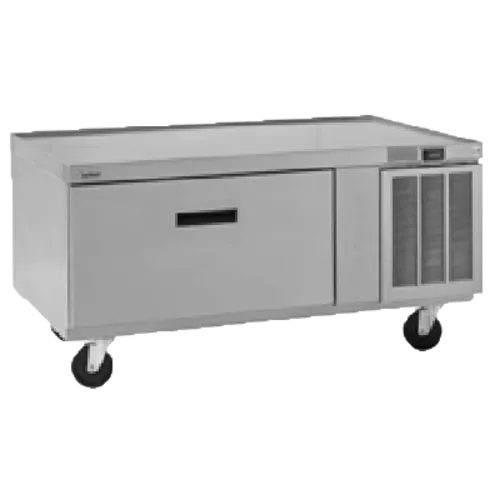

Delfield F2660CP Low-Profile 60.25" 1 Drawer Freezer Base, Stainless Steel with Marine Edge Top - 115 Volts

F2660CP
Stock Status
Updating. Please wait...
Free Freight
$13,874.50

Contact us for details

$11,044.17

You will earn 13875 Reward Points.

Product Protection
Coverage starting at
FINANCE

Monthly Payment *

Finance Payment Calculator
$237.34
* The above amount may vary depending on the applicant's credit history.
  • 2023 model, meets the newest EPA and DOE codes.

Delfield F2660CP Specifications

Width Range36 to 60 Inches
SeriesLow-Profile
Top StyleMarine Edge
ConstructionStainless Steel
BrandDelfield
Refrigerant TypeR-290
CertificationsNSF
Compressor LocationRemote
Number of Drawers1
Sections1
Voltage115 Volts
Width (in)60.25
Height (in)26
Depth (in)31.94
Weight418.00

Additional Information on Delfield F2660CP

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Delfield F2660CP Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

Delfield F2660CP Description

Freezer Low-Profile Equipment Stand, 60"W x 31-47/50"D x 26"H, single-section, (1) drawer holds (2) 12" x 20" pans (pans not included), stainless steel top & drawer fronts, front non-spill edge, ABS interior sides, 4" casters, side-mounted refrigeration system with electric condensate evaporator, R290 Hydrocarbon refrigerant, (2) 1/3 hp, cUL, UL, NSF

The F2660CP freezer low-profile commercial chef base with one (1) drawer and durable stainless steel top combines food storage and preparation station in one sturdy unit. Measuring 60" wide, 31 47/50" deep, and 26" tall, this freezer equipment stand can accommodate two (2) 12" x 20" pans (not included) and has a marine edge top to keep the mess off your kitchen floor.

The complete drawer system is stainless steel all the way to the fronts and ends to make this equipment stand sturdy and easy to clean! The Delrin-constructed drawer track rollers have high resistance to impact to withstand daily use rigors and support a fast-paced operation! ABS interior liners are installed on the drawers to help keep your products fresher for longer. The gaskets are simply snapped into place so they are easy to remove and clean.

This freezer equipment stand is powered by two (2) 0.35 hp compressors with R290 refrigerant that boasts zero ozone depletion potential. The base operates at  0º to -5º to meet NSF7 standards for safe and sanitary use. It is insulated with high-density foamed-in-place polyurethane, which is energy-efficient and environmentally friendly! A mullion-style coated blower coil installed in each drawer ensures proper air and temperature control.

This commercial chef base is cUL, UL, and NSF-certified and comes standard with four (4) casters measuring 4" so you can easily transport it during setup and cleaning. An 8' cord and plug are both supplied. You also get three (3) year parts and labor warranty and an additional two (2) years warranty for compressor parts.

Get the best commercial refrigerators & freezers at the best prices only here at CKitchen!

Delfield F2660CP Low-Profile 60.25

Freezer Low-Profile Equipment Stand, 60" W, single-section, (1) drawer holds (2) 12"x20" pans (pans not included), stainless steel top & drawer fronts, front non-spill edge, ABS interior sides, 6" casters, side-mounted refrigeration system with electric condensate evaporator, R290 Hydrocarbon refrigerant, (2) 1/3 hp, cUL, UL, NSF 7

Standard Features:
  • Electronic control
  • 8' cord and plug supplied
  • Standard stainless steel ends
  • Wall-mounted bracket to prevent tipping
  • Exterior drawer fronts are stainless steel
  • Snap-in drawer gaskets for easy removal
  • Environmentally friendly R290 refrigerant
  • Height of surface for setting equipment is 25.50"
  • Self-contained freezers are standard with a defrost timer
  • Top is heavy duty stainless steel, with full perimeter marine edge
  • Three year parts and labor warranty and an additional two year compressor parts warranty
  • When ordering, specify make, model and depth of cooking equipment sitting on the equipment stand
  • Base cabinet will maintain 0º to -5º temperatures at 100º ambient room temperature meeting NSF7 requirements
  • Base interior cabinet is cooled with mullion style coated blower coil(s) mounted between each door/drawer section for even air and temperature control
  • High density environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane foam insulation throughout unit
  • Full Extension Plus Drawer system is a complete drawer system. Drawer system is sized to hold 12" x 20" x 8" deep hotel pans (by others). The drawer system is all stainless steel construction for maximum durability
Options & Accessories
  • Casters
  • Drawer locks
  • Stainless steel back
  • Plastic laminate end
  • Plastic laminate front
  • Plastic laminate back
  • Mechanical housing left side
  • Celsius readout for electronic control
  • Remote refrigeration available in R404A (contact factory)
  • 8" deep clear polycarbonate pans in full, 1/2 and 1/3 size dimensions available
Specifications
Exterior top is 18-gauge stainless steel with full perimeter marine edge. Corners are fully welded with smooth radii corners for easy clean out. Interior subtop is 22-gauge stainless steel. Over two inches of environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) Polyurethane two-part foam provides insulation and rigidity. Refrigerated base has 22 gauge stainless steel interior back, bottom and sides. Base exterior back, bottom and sides are constructed of galvanized steel. Finished stainless steel ends are standard. Louver, coil panel and drawer faces are all standard with stainless steel construction. (Unit is supplied with a wall-mounted bracket and threaded rod to allow installation of the unit against a solid surface.) Units foundation is made of 14 gauge 1.50" tall x 3.25" galvanized leg rails with casters as standard. Unit comes standard with a stainless steel leg rail cover-up skin. Legs available on request. Full Extension Plus drawer system is a complete drawer system, which can operate independent of the unit it’s installed in. Drawer system is sized to hold 12" x 20" x 8“ deep hotel pans and smaller fractional pans. Drawer system is all stainless steel construction for maximum durability. Drawer track rollers are made of Delrin and do not require grease for operation. Intermediate tracks are removable without tools and house Delfield’s “anti-friction binary roller system". Drawer boxes are designed with “easy pan grip flanges". Tracks are designed with a stay shut feature that holds the drawer gasket tight to the base front on uneven floors. Exterior drawer fronts are made of stainless steel; and an interior made of ABS plastic with formed in channels to house the snap-in dart style santoprene gasket. A galvanized brace is foamed in place to be an integral part of the drawer front assembly. Each drawer front is injected with 1.87" of high density polyurethane foam between the exterior and interior. Handles are recessed black plastic and held in with a positive lock system.

Options for Delfield F2660CP

Lift gate option
Drawer warranty
Door & drawer options
Compressor location
Top options
Finish
What is included
  • Parts & Labor warranty: 3 year parts & labor warranty, standard
  • Voltages: 115v/60/1-ph, 7.6 amps, NEMA 5-15P, standard
