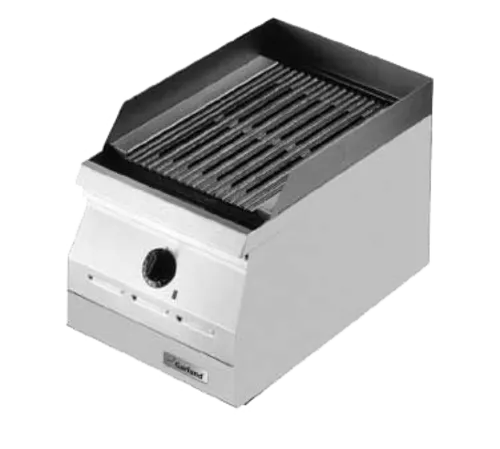

Garland US Range ED-15B Designer Series Charbroiler
MPN#: ED-15B
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Free Freight?
Quick Ship
$3,575.00
Contact us for details
Product Protection
Starting at
- Free after installation performance check
- Please see specification sheet for installation clearance requirements
Garland US Range ED-15B Accessories
Description
Garland US Range ED-15B Description
Designer Series Charbroiler, electric, 15" W x 17-1/4" D cooking area, countertop, grate lift handle, infinite controls, grease drawer, stainless steel front & sides, 4" legs, 2.7kW, NSF, CSA (Garland)
Designer Series Charbroiler, electric, 15" W x 17-1/4" D cooking area, countertop, grate lift handle, infinite controls, grease drawer, stainless steel front and sides, 4" legs, 2.7 kW, NSF, CSA, CE (Garland)
Standard Features:
Electric designer series broilers in three widths: models ED-15B, 15" (381mm) wide; ED-30B, 30" (706mm) wide and ED-42B, 42" (1067mm) wide. Each 12" (305mm)section controlled by an infinite switch. Designed as free standing or to be banked with other ED series equipment. 24" (610mm) deep x 13- 3/4" (349mm) high, easy clean design with stainless steel front and sides, concealed grease drawer behind lower hinged panel, grate lift handle and optional broiler splatter shield. Ribs in grate give distinct
Standard Features:
- Grate lift handle
- Heat-On indicator lamps
- Concealed grease drawer
- Stainless steel front and sides
- "CE" approved models have prefix EDU
- One-Year limited parts & labor warranty (USA & Canada only)
- Infinite switch controlled; one on ED-15B; two on ED-30B and three on ED-42B model
- Easy-clean design with recessed protected controls and ample space between elements and side splash walls
- Stainless steel back and bottom
- Broiler splatter guard, 15" (381mm), 30" (705mm) and 42" (1067mm) wide. S/S comes in 3 pieces which adds 10" to top section of broiler.
- 24" (610mm) wide nickel plated shelf to fit 30" (705mm) splatterguard or 36" (914mm) shelf to fit 42" (1067mm) splatter guard, please specify. Note : Stands are available see form # CS24/CSD
Electric designer series broilers in three widths: models ED-15B, 15" (381mm) wide; ED-30B, 30" (706mm) wide and ED-42B, 42" (1067mm) wide. Each 12" (305mm)section controlled by an infinite switch. Designed as free standing or to be banked with other ED series equipment. 24" (610mm) deep x 13- 3/4" (349mm) high, easy clean design with stainless steel front and sides, concealed grease drawer behind lower hinged panel, grate lift handle and optional broiler splatter shield. Ribs in grate give distinct
Options
Q & A
Garland US Range ED-15B Specifications
| Installation Type | Countertop |
|---|---|
| With Griddle | No |
| Heating Source | Radiant |
| Control Type | Recessed |
| Brand | Garland/US Range |
| Number of Burners | 1 |
| Certifications | NSF |
| Power Type | Electric |
| Controls | Infinite |
| Heat | Electric |
| Usage | Standard Duty |
| Voltage | 208 Volts |
| Width (in) | 15 |
| Height (in) | 13.75 |
| Depth (in) | 24 |
| Weight | 70.00 |
Additional Information on Garland US Range ED-15B
Garland US Range ED-15B Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
