Glastender GT-18+1L Glasswasher Station

GT-18+1L
Glastender GT-18+1L Glasswasher Station
Free Freight
Price $4,140

You will earn 4,140 Reward Points.

You will earn 4,140 Reward Points.


Glastender
More from Glastender
PayPal CREDIT
Specs
BrandGlastender
Width (in)36.00
Height (in)38.50
Depth (in)24.00
Weight175.00
You May Also Need


Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Description

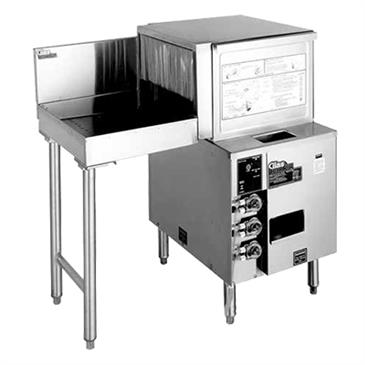

Glasswasher Station, front-to-side pass-thru, 36"W x 24"D O.A., 18"W door type glasswasher with 18"W drain table on left, low temperature chemical sanitizing, washes (720) 2-1/2" diameter glasses per hour, 10" maximum glass height, intelligent microprocessor control, automatic chemical pumps, digital temperature gauge, prime switch, removable top & side panels, external chemical storage, includes (2) 16" diameter polypropylene racks & (2) curtains, stainless steel construction, stainless steel legs with adjustable feet, 1/6 HP water pump, cETLus, ETL-Sanitation

Standard Features:
  • One curtain included
  • Prime Switch for quick chemical priming
  • Removable side panels for easy service access
  • Two 16" diameter polypropylene racks included
  • Drive Wheel and Glass Rack lift out for cleaning
  • Digital temperature gauge built into switch panel
  • 1/6 HP pump recirculates wash water and rinse water
  • Built-in drain table on one side to provide glass landing area and increase throughput
  • Fractional HP drive motor powers the belt-driven rotary rack and includes built-in slip clutch
  • Automatic peristaltic metering pumps accurately dispense detergent, sanitizer and rinse aid
  • Intelligent microprocessor control delays cycle start, up to two minutes, when incoming water is below 120°F (49°C)
  • Spray box unlatches for easy cleaning and visual inspection - 15 spray nozzles have been engineered for maximum soil removal
  • Removable top for easy cleaning access (GT-18, GT-18+1, GT-18+1L, GT-18+1R, GT-18+2, and GT-18+2-IC tops are interchangeable)
Specifications
  • Rinse Aid
    • Liquid Rinse Aid adjusted for proper sheeting
  • Drain
    • 1-1/2" tailpiece
    • Use open type floor drain for maximum drainage
  • Materials
    • 20 gauge stainless steel parts include: cabinet
    • 11 gauge stainless steel parts include: drive wheel
    • 18 gauge stainless steel parts include: floor and tanks
    • 16 gauge stainless steel parts include: leg mounting brackets and legs
  • Electrical
    • Power requirements - 3.5 amps
    • Dedicated 15 amp circuit recommended
    • 120V, single phase, 60Hz, 6-foot NEMA 5-15P grounded cord included
  • Sanitizer
    • Liquid chlorine bleach (sodium hypochlorite - 5.25% solution) adjusted to 50 ppm
  • Detergent
    • Consult local chemical supplier to match detergent with local water conditions
    • Extra heavy duty, non-foaming, commercial liquid dishwashing detergent is required - .30% concentration
  • Capacity
    • 2 minute cycle, 70 second wash and 22 second rinse exposure
    • 720 - 2-1/2" diameter or 600 - 2-3/4" diameter glasses per hour (maximum glass height 10" - including pitchers and wine carafes)
  • Installation Considerations
    • Front side service is essential
    • 1" clearance required to remove top
    • Detergent, Sanitizer, and Rinse Aid containers are stored externally - sixfoot lengths of tubing are provided. Storage for three one-gallon containers is required within five feet.
  • General Plumbing
    • Minimum water pressure is 25 PSI
    • Install separate water shut-off valve
    • Minimum temperature is 120°F (49°C)
    • Maximum temperature is 150°F (66°C)
    • Consumption is 2-1/2 gallons per cycle
    • Plumb with 1/2" water supply. Adapt to 3/8" FMPT
    • Unit has built-in air gap - vacuum breaker is not required
    • Maximum water pressure is 100 PSI. Install water pressure regulator if line pressure is over 100 PSI. Water valve on unit has built-in strainer and flow control to provide consistent volume between 25 and 100 PSI
