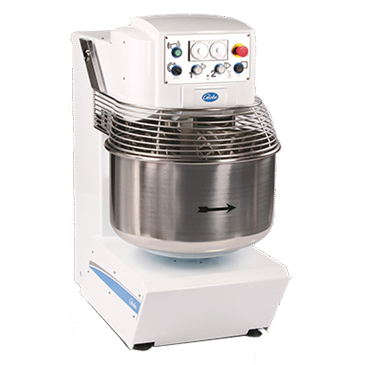

Globe GSM175 Spiral Dough Mixer with Dual Motors
Calculate
Globe GSM175 Specifications
| Speed | 1 |
|---|---|
| Weight Capacity | 175 lb. |
| Speeds | 2 |
| Horsepower | 6 HP |
| Volume Capacity | 84 qt. |
| Transmission Type | Gear-Driven |
| Lift Type | Manual |
| Type | Spiral Mixers |
| Brand | Globe |
| Certifications | 5-20P |
| Usage | Heavy Duty |
| Voltage | 208 Volts |
| Width (in) | 51 |
| Height (in) | 59 |
| Depth (in) | 32 |
| Weight | 837.76 |
Additional Information on Globe GSM175
enhancements-to-globe-warranty-program.pdf
globe-gsm130-gsm175-spiralmixer.pdf
middleby-financial-flyer.pdf
owner-s-manual.pdf
warranty-sheet.pdf
globe-gsm175.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Globe GSM175 Certifications
5-20P
Plug has the neutral blade rotated 90° and shifted so its inner edge is approximately 1⁄2 in (12.7 mm) from the hot blade
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
FDA
FDA
Globe GSM175 Description
Globe mixers are well known to be powerful, with gear-driven transmissions, custom motors, rugged construction, dependable operation, and offer the perfect mix of quality and value.
GSM130 Spiral Mixer is all metal construction with FDA approved white powder coat. This unit has 2 fixed speeds, manual and automatic controls with dual 20 minute electronic timer for automatic shifting from 1st to 2nd speed. It also has dual motors (¾ HP bowl per 35 rpms, dough hook with two speed- 1st speed 3.25 HP per 104 rpms; 2nd speed 6 HP per 208 rpms). The motors are high torque, ball bearing, totally enclosed and fan cooled.
This mixer comes standard with steel wire form interlocked bowl guard, stainless steel bowl and spiral dough hook. There are ball bearing mounted front and back casters included in this unit for mobility purposes. Now backed by the best warranty in the industry; 2-years parts and labor!
- Two fixed speeds
- Heavy-duty steel support bar
- Includes 10.5-foot power cord
- Front and rear casters for mobility
- Manual and automatic control functions
- Polished diamond finish stainless steel bowl
- All metal construction with cast aluminum top cover
- Stainless steel ball bearing bowl drive for extra durability
- Reinforced dough hook easily handles large, heavy batches
- Powerful dual high torque motors - for bowl and dough hook
- Reversible bowl drive for mixing smaller batches (1st speed only)
- Dual 20 minute electronic digital timers allow automatic shift from 1st to 2nd speed
- Bowl jog control allows easy removal of dough and bowl cleaning for a quicker batch turnaround
- Sturdy stainless steel bowl guard allows easy addition of ingredients and observation of mixing progress
- Stainless steel bowl
- Heavy-duty spiral dough hook
