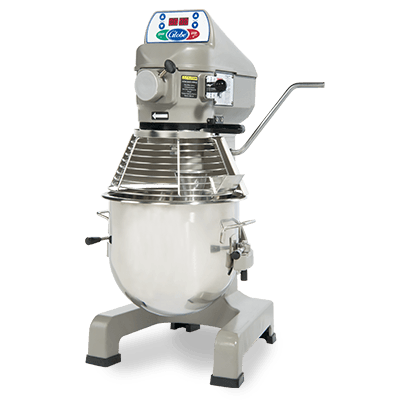

Globe SP20 Planetary Mixer
Calculate
Globe SP20 Specifications
| Speed | 3 |
|---|---|
| Speeds | 3 |
| Transmission Type | Gear-Driven |
| Type | Stand Mixers |
| Brand | Globe |
| Certifications | 5-15P |
| Capacity | 11-20 qt. |
| Color | Gray |
| Style | Lift |
| Usage | Heavy Duty |
| Voltage | 115 Volts |
| Width (in) | 22 |
| Height (in) | 41 |
| Depth (in) | 23.5 |
| Weight | 270.00 |
Additional Information on Globe SP20
parts-manual.pdf
wiring-diagram.pdf
globe-sp20-20-qt-planetary-bench-mixer.pdf
capacity-chart.pdf
enhancements-to-globe-warranty-program.pdf
middleby-financial-flyer.pdf
product-guide.pdf
owner-s-manual.pdf
globe-sp20.specsheet.pdf
warranty-sheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Globe SP20 Certifications
5-15P
Two-pole with ground pin plug
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Globe SP20 Description
The Globe SP20 Planetary Mixer is a 20 qt capacity bench model featuring a ½ HP motor. Power is reliably delivered via a high-torque gear-driven transmission with hardened, heat-treated steel alloy shafts and gears with permanent lubrication. The transmission features three fixed-gears: 104 RPM, 194 RPM, and 353 RPM. The transmission also powers a standard #12 PTO for additional attachments like a meat grinder. The PTO runs at 59 RPM, 110 RPM, and 201 RPM.
Included accessories with this model are an aluminum flat beater, 20 qt stainless steel bowl, aluminum spiral dough hook, and a stainless steel wire whip. The touchpad controls of this unit are located on the top front for convenience and include a 60-minute timer and last-batch recall. The rigid cast iron body is extremely durable and will last for many years of commercial use. The cast iron is coated with NSF approved gray enamel which will protect the body and maintain its looks for the lifetime of the device.
A 6-foot power cable is included for easily attaching this bench mixer to a standard 115v/60/1-ph power outlet compatible with its NEMA 5-15P plug.
- Three fixed speeds
- Interlocked bowl lift
- Rigid cast iron body
- 6-foot cord and ground plug
- Thermal overload protection
- NSF approved enamel gray paint
- Powerful 1/2 HP custom built motor
- Permanently lubricated transmission
- Gear-driven, high-torque transmission
- Industry standard #12 attachment hub
- Heat-treated hardened steel alloy gears & shafts
- Front-mounted touch pad controls with 60-minute digital timer and last-batch recall
- Removable stainless steel, interlocking bowl guard with built-in fully welded ingredient chute
- Non-slip rubber feet
- Aluminum flat beater
- Stainless steel wire whip
- Aluminum spiral dough hook
- 20 qt. stainless steel bowl (#304 series)
- Two years parts and labor
- 10 qt. adapter kit
- 12 qt. adapter kit
- Seismic flange kit
- Extended warranty
- Strip cutter for #12 hub
- Meat grinder for #12 hub
- Stainless steel flat beater
- Mixer table with undershelf
- Meat tenderizer for #12 hub
- Stainless steel spiral dough hook
- Slicer/shredder/grater for #12 hub
- Polycarbonate splash shield insert
| Features | |
|---|---|
| • : | 6 foot cord and ground plug High-quality stainless steel removable bowl guard with built-in ingredient chute Gear-driven, high torque transmission Non-slip rubber feet Rigid cast iron body Dish machine safe Three fixed speeds Heat-treated hardened steel alloy gears and shafts Powerful 1/2 HP custom built motor Thermal overload protection • Safety interlocked bowl guard and bowl lif Permanently lubricated transmission NSF approved enamel gray paint Interlocking guard is easy to attach and remove for cleaning Industry standard #12 attachment hub Front-mounted digital controls with 60 minute timer and last batch recall |
