Description

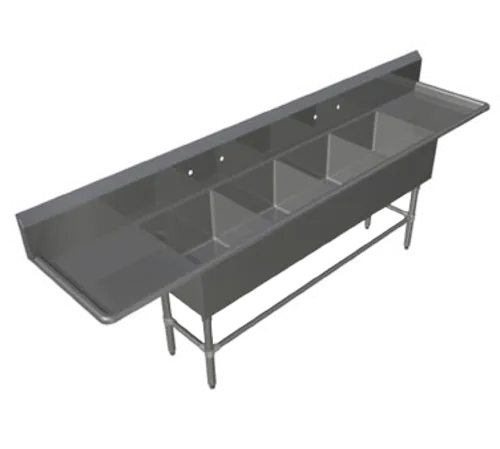

John Boos 4PB18-2D24 Description
Pro-Bowl Sink, 4-compartment, 123-1/4"W x 23-1/2"D x 44-1/16"H overall size, (4) 18"W x 18" front-to-back x 12" deep compartments, (2) 24" left & right drainboards, 10"H boxed backsplash with 45° top & 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
Standard Features:
- 1" Faucet Holes in Backsplash
- 2 Sets of Faucet Holes 8" On-Center
- 12" & 14" Deep Four Compartment Sink Bowls
- All Corners, both Vertical and Horizontal, Coved At 5/8" Radius
- Standard 16ga Type 300 Stainless Steel with #4 Polish, Satin Finish
- Bottoms of Bowls Formed for Drainage to 3-1/2" Diameter Die Stamped Opening
- All Outside Corners of Assembly are Bullnosed to Provide Safe, Clean and Polished Edge
- Solid Stainless Steel Commercial Sink Front Panel, Type 300 Stainless Steel with #4 Polish, Satin Finish
- Full Length 10" High Boxed Backsplash, with 2" return to wall at 45 Degree and 3/4" turned down Rear Lip
- Note: More Restaurant Equipment & Underbar Sinks are available.
Construction
- Base: Stainless Steel Bases, Standard K.D.
- Top: Stainless Steel Sinks are TIG Welded, Exposed welds are polished to match Adjacent Surface
Material
- Gussets: Stainless Steel
- Legs: 1-5/8" Round O.D. Stainless Steel
- Bracing: 1-1/4" Round O.D. Stainless Steel
- Feet: 1" Adjustable Stainless Steel Bullet Feet
- Bowls & Top: 16ga Type 300 Stainless Steel with #4 Polish, Satin Finish
Q & A
Certifications
John Boos 4PB18-2D24 Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
John Boos 4PB18-2D24 Specifications
| Brand | John Boos |
|---|---|
| Gauge | 16 Gauge |
| Number of Drainboards | 2 |
| Certifications | NSF |
| Number of Compartments | 4 |
| Width (in) | 123.25 |
| Height (in) | 44.06 |
| Depth (in) | 23.50 |
| Weight | 158.00 |
