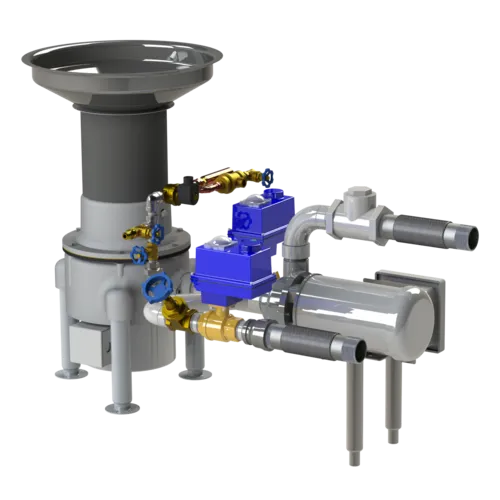

Somat D5+BUILDUP Waste Grinder 5HP

Somat D5+BUILDUP Description

• Food Grinder:
  • Foreign matter without special tools.
  • Stainless steel legs and feet, adjustable from 0" to 2".
  • Thermal overload protection with manual reset button.
  • 5 HP continuous duty motor with shaft extension, 3⁄4" wrench flats to externally de-jam
  • 8 1⁄4" throat opening with dual directional operation, doubling the life cycle of the cutting mechanism.
  • Grinder connects to Cone or Sink Assembly by means of a neoprene isolation sleeve and (2) stainless steel clamps.
  • Adjustable 10 5⁄8" diameter rotor/turntable beveled at a 45° angle with 6 integral impact breakers constructed of hardened ductile steel alloy for long life use. Matching 45° sizing ring with 24 grinding teeth.
• Valve Package:
  • Pre-piped valve package assemblies to include all valves required for proper operation.
• Som-A-Trol® (Electrical Control Panel):
  • UL approved Waste System, Includes all necessary power, control and water level components prewired to a terminal strip. Push button station in a NEMA 4 stainless steel enclosure

• 3 or 5 HP return pump
• Sink adapter w/ silver saver
