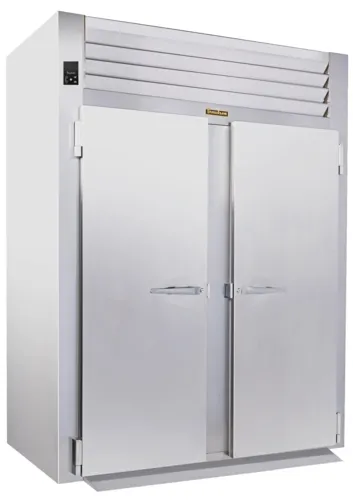

Traulsen RIF232L-FHS 68" Top Mounted 2 Section Roll-in Freezer with 2 Left/Right Hinged Solid Doors - 74.3 cu. ft.

Traulsen RIF232L-FHS 68" Top Mounted 2 Section Roll-in Freezer with 2 Left/Right Hinged Solid Doors - 74.3 cu. ft.

RIF232L-FHS
Stock Status
Updating. Please wait...
Free Freight
$30,214.31

Contact us for your price

Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET

Why don't we show the price for this item?

$28,840.93

Contact us for your price

Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET

Why don't we show the price for this item?

You will earn 30214 Reward Points.

Product Protection
Coverage starting at
FINANCE

Monthly Payment *

Finance Payment Calculator
$619.79
* The above amount may vary depending on the applicant's credit history.
  • 2023 model, meets the newest EPA and DOE codes.
  • Usually ships in 4-6 weeks
  • NOTE! Requires remote refrigeration system (not included)
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

Traulsen RIF232L-FHS Specifications

Freezer Capacity74.3 cu. ft.
Hinge LocationLeft/Right Hinged
Refrigerant TypeR-407A
ConstructionStainless Steel
BrandTraulsen
Number of Doors2
Capacity71 - 121 cu. ft.
Compressor LocationTop Mounted
Door TypeSolid
MaterialStainless Steel
Sections2
Temperature Range-10 Degrees F
Voltage115 Volts
Width (in)68
Height (in)83.25
Depth (in)35.58
Weight820

Traulsen RIF232L-FHS Description

Spec-Line Freezer, Roll-in, Two-Section, remote refrigeration, stainless steel exterior and interior, standard depth cabinet, full-height doors, for 66" high racks (by others) with microprocessor controls, unit can be programmed to operate at -10°F, unit can be programmed to operate at -10°F
Spec-Line Two-Section Roll-in Freezer, remote refrigeration, stainless steel exterior and interior, standard depth cabinet, full-height doors, for 66" high racks (by others) with INTELA-TRAUL™, unit can be programmed to operate at -10 degrees Fahrenheit, unit can be programmed to operate at -10 degrees Fahrenheit (more roll-in freezers and other commercial refrigerators and freezers also available)

Standard Features:
The R & A Series represent Traulsen's Top-of-the-Line product offering. The “L-Height” roll-in freezer models are all designed to offer convenient interior storage for 66" high racks. Each is supplied standard with such high-quality features as easy-to-operate microprocessor controls, balanced refrigeration systems, and stainless steel exteriors. Additionally, they offer the widest range of optional accessories to choose from, and can be specified for use with many different applications, including: Foodservice, Correctional, Institutional, Export, etc.
  • Biased Return Air Duct
  • 9' Cord & Plug Attached
  • Stainless Steel Breaker Caps
  • Magnetic Snap-In Door Gaskets
  • Five-Year Compressor Warranty
  • Scroll Blower Type Evaporator Fan
  • Gasket Protecting Metal Door Liner
  • One-Year Parts And Labor Warranty
  • Guaranteed For Life Cam-Lift Hinges
  • R-Series: Stainless Steel Exterior & Interior
  • Stainless Steel One-Piece Louver Assembly
  • Automatically Activated Incandescent Lights
  • Two-Year Control Warranty (parts and labor)
  • Full-Length Stainless Steel Doors With Locks
  • Thermostatic Expansion Valve Metering Device
  • Automatic Non-Electric Condensate Evaporator
  • INTELA-TRAUL® Microprocessor Control System
  • Controllable Anti-Condensate Door Perimeter Heaters
  • Stainless Steel Interior Rack Guides & Threshold Ramp(s)
  • Guaranteed For Life Horizontal Work Flow Door Handle(s)
  • Self-Closing Doors With Stay-Open Feature At 120 Degrees
  • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
  • Balanced, Self-Contained Refrigeration System Using R-404A
  • Accommodates Roll-In Racks Up To 66" High (provided by others)
  • Standard Door Hinging: 132L = Right, 232L = Left/Right, 332L = Left/Right/Right (other hingings available)
Options & Accessories:
  • Recessed Installation
  • Export 220/50/1 Voltage
  • Re-Hinging Feature For Door(s)
  • Additional Wire Shelves For Above
  • Kool Klad Exterior Laminate Decor
  • Prison/Correctional Facilities Options
  • Two Year Service/Labor Warranty Available
  • Additional Stainless Steel Shelves For Above
  • Locking Hasps (padlocks supplied by others)
  • Stainless Steel Finished Back With Rear Louvers
  • Remote Applications (see form TR35837 for more details)
  • Water Cooled Self-Contained Condenser Suitable for Connection To Glycol
  • Wire Shelf Package For Roll-In Models (includes three wire shelves per section)
  • Stainless Steel Shelf Package For Roll-In Models (includes three stainless steel shelves per section)
Specifications:
Construction, Hardware, and Insulation
  • Cabinet exterior front, one-piece sides, louver assembly, and doors are constructed of 20-gauge stainless steel with a #4 finish. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back, and bottom are constructed of heavy-gauge aluminized steel. The interior floor is constructed of stainless steel and insulated with 3⁄4" of resilient cork. A readily attachable stainless steel ramp is provided to facilitate loading/unloading. Doors are equipped with a heavy-duty, extruded wiper gasket for sealing to bottom ramp, removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a concealed switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handles are mounted horizontally over recess in door which limits protrusion from door face into aisleways. Doors have seamless, polished metal corners. Easily removable for cleaning, vinyl magnetic door gasket assures tight door seal. Both the cabinet and door(s) are insulated with an average of 2" thick high-density, non-CFC, foamed-in-place polyurethane.
Refrigeration System
  • A top-mounted, self-contained, balanced refrigeration system using R-404A refrigerant is conveniently located behind the one-piece louver assembly. It features an easy-to-clean front-facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone, and a top-mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug are provided. Standard operating temperature is 0 to -5°F.
Controller
  • The easy-to-use water-resistant INTELA-TRAUL® microprocessor control system is supplied standard. Unit is NAFEM Data Protocol communication (NDP) ready. Optional hardware required to be NDP compliant. Third-party software required for network connection. It includes a 3-Digit LED Display, Fahrenheit or Celsius Temperature Scale Display Capability, Defrost Lockouts, and an RS485 data port. In addition, it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.
Interior
  • Readily removable, interior-mounted, stainless steel guides for rack are provided for protection. Maximum rack size with wheels inboard of frame is 27" wide by 29" deep by 66" high. Racks supplied by others.
Warranties
  • Both a one-year parts and labor warranty and a five-year compressor warranty (self-contained models only) are provided standard. An optional 2nd year extended parts and labor warranty is also available. In addition, the INTELA-TRAUL® control is warranted by a two-year parts and labor warranty

Options for Traulsen RIF232L-FHS

Thermal expansion valve
Options for remote models
Shelf packages
Locking devices
Correctional options
Options & accessories
Voltage
What is included
  • Warranty: 6-year parts & labor, standard. Visit www.traulsen.com for details
Door hinging
