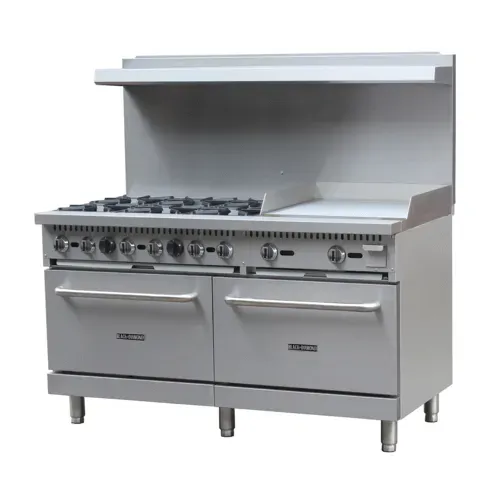

Admiral Craft BDGR-6024G/NG Restaurant Gas Range, 60" W with 6 Burners (1) 24" Griddle and (2) Standard Ovens - 280,000 BTU
MPN#: BDGR-6024G/NG
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Free Freight?
Quick Ship
$3,383.30
Product Protection
Starting at
- Please see specification sheet for installation clearance requirements
Description
Admiral Craft BDGR-6024G/NG Description
Black Diamond Range with Griddle, natural gas, 60", (6) 12" x 12" 30,000 BTU top burners, removable cast iron top grates, individual pilot lights & controls, (2) standard ovens, 150°F to 550°F temperature range, (2) adjustable racks per oven, backriser with shelf, removable crumb tray, griddle 24"W x 21"D cook top, 3/4" thick griddle plate, stainless steel, 6" adjustable legs, 3/4" NPT, 280,000 BTU, cETLus, ETL-SanitationStandard Features:
Construction
- LPG conversion kit included
- 3/4” rear NPT gas connection
- 6” adjustable stainless steel legs
- Individual pilot light for each burner
- Stainless steel front, backriser and shelf
- 12” x 12” cast iron removable top grates
- Removable crumb tray for easy cleaning
- 30,000 BTU/hr top burners with lift-off heads
- Spring loaded door with cool to touch s/s handle
Oven Features
- 30,000 BTU/hr total output
- Flame failure safety device
- Cool to touch stainless steel oven door handle
- Adjustable thermostat ranges from 250°F-550°F
- Steel liner on door and sides with a porcelain oven liner
- Includes 2 removable and adjustable oven racks per oven
Top Burners
- Cast iron burners each giving off 30,000 BTU/hr
- Each burner has an individual standing pilot light and control knob
- 12” x 12” cast iron top grates are removable for easy cleaning and maintenance
- Extra 2” ledge between the burners and backsplash provides more room for bigger pots and pans during use
Griddle / Broiler
- 24”W x 21”D cooking area
- 3/4” thick polished steel griddle plate
- 3” high sides and backsplash are fully welded
- Includes removable crumb and drip trays for easy cleaning
- Each burner has an individual standing pilot light and control knob
- Raised griddle/broiler on the FMGR-6024GB model has an 8.25” high opening and has a built-in broiler rack that slides in and out and has an adjustable height
Options
Q & A
Admiral Craft BDGR-6024G/NG Specifications
| Total BTU | 225000 - 325000 |
|---|---|
| Burner Type | 30,000 BTU top burners |
| Number of Burners | 6 - 8 |
| Quantity of Burners | 6 Burners |
| Burner Style | Grates |
| Control Type | Individual |
| Range Base Style | Standard Oven |
| Brand | Admiral Craft |
| Certifications | ETL, ETL-Sanitation |
| Oven Type | Standard |
| BTU | 30,000 BTU |
| Heat | Gas |
| Range Configuration | (1) 24" Griddle |
| Width (in) | 32.5 |
| Height (in) | 60 |
| Depth (in) | 32.5 |
| Weight | 865 |
Additional Information on Admiral Craft BDGR-6024G/NG
Admiral Craft BDGR-6024G/NG Certifications
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
