Beverage Air BM23HC-C-B 1 Tap 1/2 Barrel Draft Beer Cooler - Black, 1 Keg Capacity, 115 Volts
Calculate
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air BM23HC-C-B Specifications
| Number of Kegs | 1 Keg |
|---|---|
| Number of Taps | 1 Tap |
| Amps | 4 Amps |
| Installation Type | Portable |
| Construction | Stainless and Galvanized Steel |
| Brand | Beverage Air |
| Refrigerant Type | R-290 |
| Number of Doors | 1 |
| Made in | USA |
| Type | Beer Dispensers |
| Certifications | cULus |
| Exterior Finish | Black |
| Door Type | Solid |
| Sections | 1 |
| Style | 1/2 Barrel |
| Voltage | 115 Volts |
| Width (in) | 24 |
| Height (in) | 53.25 |
| Depth (in) | 30.13 |
| Weight | 180.00 |

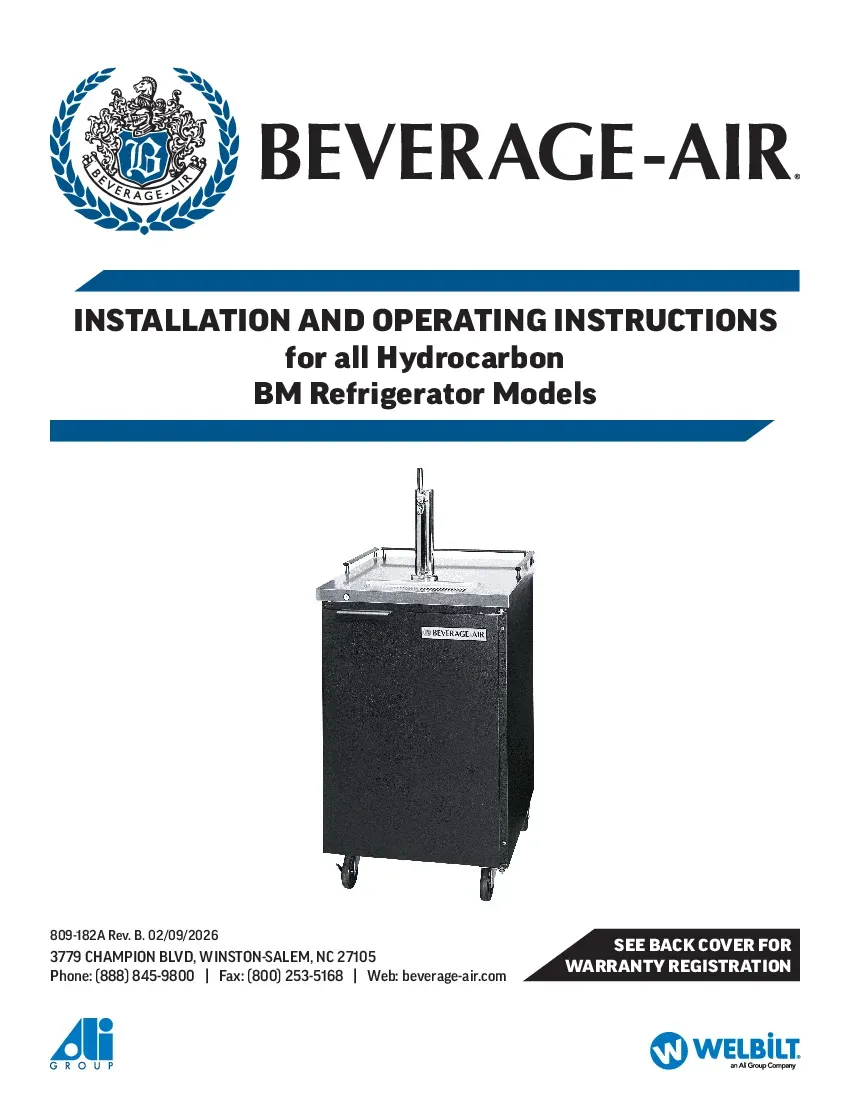

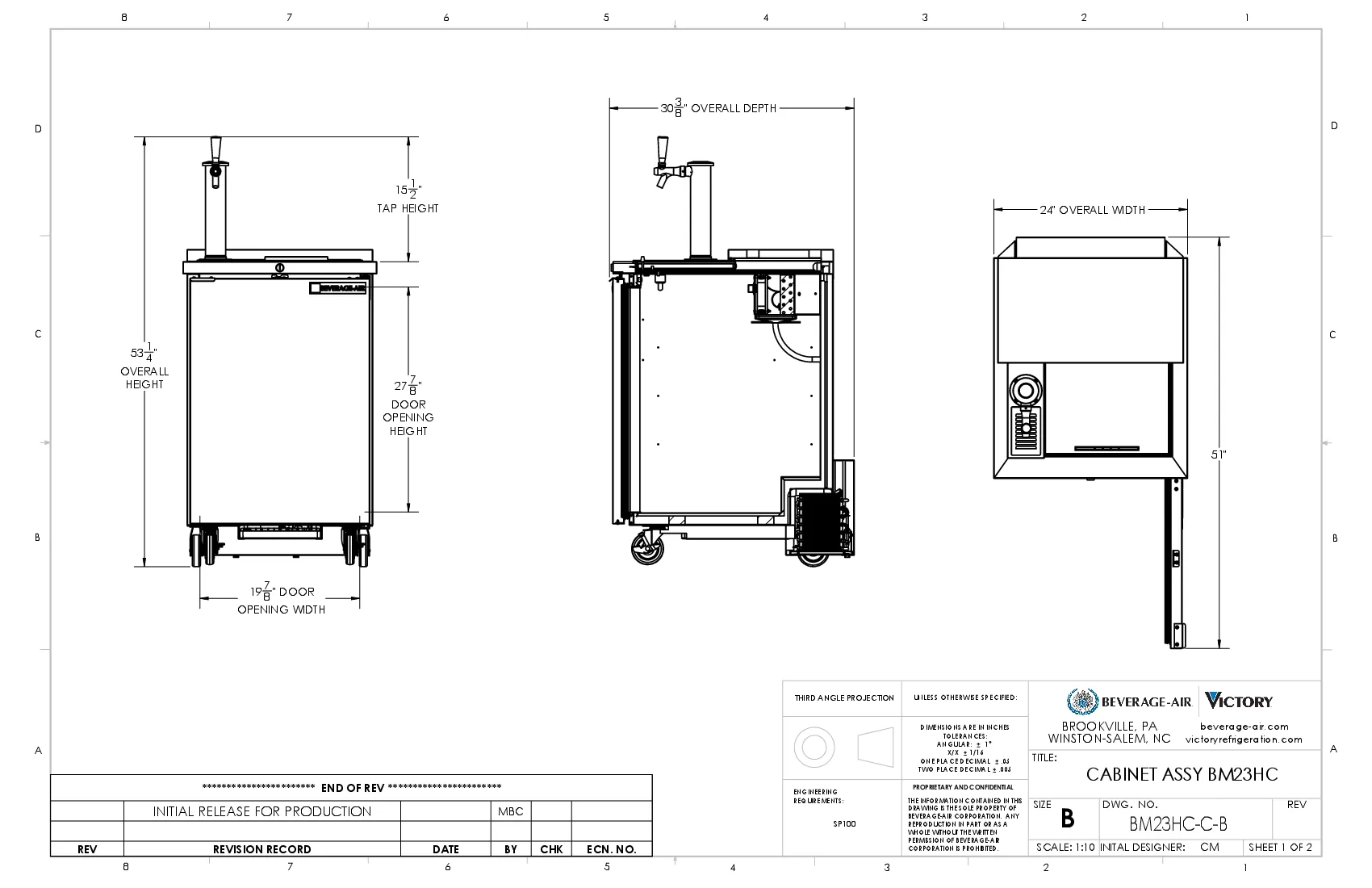

Additional Information on Beverage Air BM23HC-C-B
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air BM23HC-C-B Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air BM23HC-C-B Description
If you need a compact beer dispenser that can be easily moved around the BM23HC-C-B Draft Beer Cooler is a great option. The club top on this model makes serving ice-cold beer convenient. This dispenser has 7.66 cu. ft. to store a single ½ keg, two ¼ kegs, or four ⅙ kegs.
The interior features galvanized steel construction for the walls and ceiling and a reinforced stainless steel floor and door sill for durability. The door is self-closing to keep it from being left ajar and features a magnetic gasket for a positive seal. The keg stored inside is kept secure with a standard door lock. The durable stainless steel top provides the ideal place to serve beverages and comes with a built-in drip tray that connects to a bottle inside the unit to hold waste beer for later disposal. To prevent foaming and make sure beer is always nice and cool the 3” dispensing tower made from stainless steel is insulated. This unit has a 3-in-1 draft solution that allows a single tap to be used for different beverages. This is made possible with silver-lined tubing that is 100% effective against the top four beverage spoiling bacteria.
This unit has a self-contained refrigeration system that provides efficient cooling with a ⅙ HP compressor that produces 1094 BTU/hr of cooling. The unit's epoxy-coated evaporator keeps the interior between 36ºF and 38ºF reliably with minimal maintenance while fully electronic controls keep power consumption and stress on the refrigeration system to a minimum. An automatic non-electric defrost system keeps the interior from frosting over while keeping downtime to a minimum. The refrigeration system utilizes R290 refrigerant which is an eco-friendly hydrocarbon that has a markedly reduced impact on the environment for safe, sustainable refrigeration.
Power is provided to the unit with the 8’ power cord that comes prewired from the factory with a NEMA 5-15P plug set for use with a standard outlet with 115v/60/1-ph power at 2.0 amps.
Standard Features:
- Cabinet Construction
- Club top
- Field reversible door
- Full electronic control
- Four inch heavy duty casters
- Self-closing doors with locks, standard
- Tower has continuous source of cold air
- Beer waste bottle to capture beer from drain
- Magnetic door gaskets for positive door sealing
- Three-inch (3”) insulated tower with single faucet
- Top is made from heavy-duty stainless steel including drip tray
- Exterior is wear resistant vinyl on steel in black or stainless steel finish
- Balanced, forced-air refrigeration system keeps beer in kegs ice cold for dispensing
- Interior construction utilizes galvanized steel on walls and ceiling, doorsill is stainless steel, reinforced floor made from heavy duty stainless steel
- Refrigeration System
- Epoxy coated evaporator coil
- Heavy-duty forced air refrigeration
- Automatic, non-electric evaporator
- Refrigeration system uses R290 refrigerant to comply with all environmental concerns
- Options & Accessories
- Wine tap
- 1- 4 faucet
- Glass rinser
- Outdoor models
- Leg accessory kit
- Wine models available
- 2, 3, or 4-way manifold
- Dial/digital thermometer
- Stainless steel or black exterior club models available
