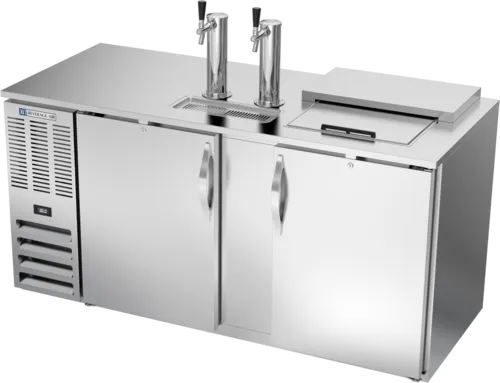

Beverage Air DD68HC-1-C-S 2 Taps 1/2 Barrel Draft Beer Cooler - Stainless Steel, 3 Kegs Capacity, 115 Volts
Calculate
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air DD68HC-1-C-S Specifications
| Number of Taps | 2 Taps |
|---|---|
| Number of Kegs | 3 Kegs |
| Amps | 7.4 Amps |
| Installation Type | Freestanding |
| Construction | Stainless and Galvanized Steel |
| Brand | Beverage Air |
| Refrigerant Type | R-290 |
| Made in | USA |
| Type | Beer Dispensers |
| Certifications | cULus |
| Number of Doors | 2 |
| Exterior Finish | Stainless Steel |
| Door Type | Solid |
| Style | 1/2 Barrel |
| Voltage | 115 Volts |
| Width (in) | 69 |
| Height (in) | 52.5 |
| Depth (in) | 29 |
| Weight | 382.00 |
Additional Information on Beverage Air DD68HC-1-C-S
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air DD68HC-1-C-S Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air DD68HC-1-C-S Description
The Beverage Air DD68HC-1-C-S Draft Beer Cooler is a fully-featured draft beer serving station complete with a club top. This unit offers 25.93 cu. ft. of cold storage to hold three ½ kegs.
The kegs inside are kept safe with self-closing doors with locks for security. Magnetic door gaskets are included to provide a secure seal. The interior walls and ceiling are made from galvanized steel while the floor and door sill feature reinforced stainless steel construction. With two towers, this draft beer dispenser provides options. Each tower is 3” in diameter and features insulation to prevent foaming and keep beer nice and cool. A drip tray is built into the durable stainless steel top to catch any spills.
Beverage Air uses silver-lined tubing that is 100% effective against the top 4 beverage spoiling bacteria. This allows for a 3-in-1 draft solution that allows a single tap to be used for different beverages. This unit comes with two stainless steel lids that easily glide to provide access to convenient cold storage for glasses, cans or bottles for fast service.
2392 BTU/hr of cooling potential is provided by the self-contained refrigeration system with a ⅓ HP compressor. The refrigeration system can be mounted on either the left or right. The internal temperature is kept from 36ºF to 38ºF with fully electronic controls. The refrigeration system features an epoxy-coated evaporator for durability and reliability. Defrosting is accomplished automatically with a non-electric system to reduce downtime while keeping the interior free of frost. The refrigerant used is R290, an environmentally-friendly hydrocarbon that meets all environmental regulations.
An 8’ power cord comes factory-wired on this unit with a NEMA 5-15P plug set to connect it to a standard 115v/60/1-ph power outlet that can safely deliver 5.5 amps.
Standard Features:
- Cabinet Construction
- Full electronic control
- Field reversible doors
- Self-closing doors with locks
- 3” Insulated dispensing tower(s)
- Magnetic gaskets provide positive door seal
- Top and drip tray are heavy-duty stainless steel
- Compressor available on left or right, specify at time of unit order
- Exterior is wear resistant vinyl on steel in black or stainless steel finish
- Drain tube located at bottom front of cooler or connection to floor drain
- Two (2) draft arms, one (1) with single faucet and one (1) with dual faucets
- Interior is galvanized steel on walls and ceiling, reinforced floor and doorsills are heavy duty stainless steel
- Refrigeration System
- Epoxy coated evaporator coil
- Automatic, non-electric evaporator
- Models feature forced air refrigeration to keep beer in kegs ice cold for dispensing
- Refrigeration system uses R290 refrigerant to comply with all environmental concerns
- Options & Accessories
- Wine taps
- Turbo taps
- Glass rinser
- Faucet locks
- Wine models
- 1-5 Tap tower
- Low profile casters
- 2,3 & 4 way manifolds
- Foot pedal door opener
- Special 6 tap/pan option
- No draft/hole cover option
- Club top models available
- Epoxy coated wire shelves kit
- Stainless steel exterior & interior available
- 3”-6” casters or 6” legs with adjustable plate
NOTE! This is a general product line video and does not necessarily reflect the listed model.
