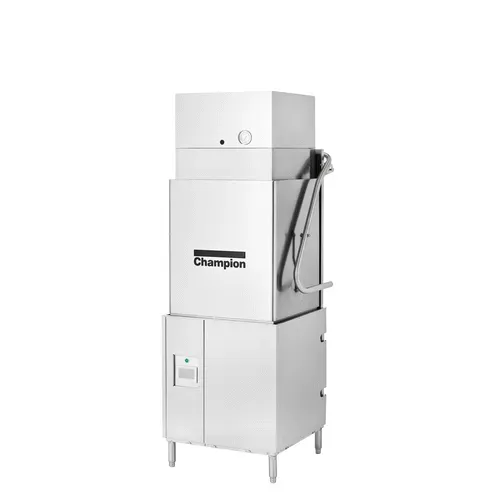

Champion DH-6000T-VHR Genesis Dishwasher

Genesis Dishwasher, door type, extended hood (27" opening for trays), ventless heat recovery, high temperature sanitizing with built-in stainless steel electric booster for (40°-70° rise), (40) racks/hour capacity, auto start, single point electrical connection, door interlock switch, on-board service diagnostics, Rinse Sentry feature, auto-fill, detergent & chemical connections, interchangeable upper & lower spray arms, automatic drain valve, vent fan control, bottom mounted HMI controls, mounted water PRV, stainless steel construction, electric tank heat, peg rack, flat rack, 2 HP self draining pump, NSF, cULus, ENERGY STAR®

The DH6000T-VHR Genesis Dishwasher from Champion is designed to handle taller items with an internal vertical clearance of 27” giving it versatility and efficiency. This high-temperature Door Type Dishwasher comes with a booster designed to sanitized and wash dishes at a rate of 60 racks per hour while only using 39 gallons of water qualifying it for ENERGY STAR® certification.

The unit features durable stainless steel enclosure panels to make sure it’s up to the task of daily use in commercial kitchens. A 180°F rinse cycle is ensured by an electric booster. For added efficiency, this dishwasher features a ventless heat recovery system that transfers water vapor and heat to the booster reducing the need for electrical heating

Aside from its normal 1-minute cleaning cycle for dishes, this unit features a pot & pan mode with three cycle lengths: 2, 4 and 6 minutes to make sure cookware comes out squeaky clean. These settings are easy to set with the HMI operator touch screen interface.

The automatic tank fill and automatic drain valve make running this unit very simple. Water pressure is regulated by a valve to ensure appropriate pressure is delivered while washing.

This dishwasher can be ordered in a variety of different voltages make sure to select the one that matches your establishment’s configuration.

• Automatic tank fill
• Self draining pump
• 4 selectable cycles
• Ventless Heat Recovery
• Factory authorized startup
• High efficiency 2 HP pump
• On-Board Service Diagnostics
• Single point electrical connection
• 27" [686mm] extended clearance
• HMI - Operator Touch Screen Interface
• Rinse Sentry - ensures 180°F final rinse
• PRV (Mounted Pressure Reducing Valve)
• Auto start - starts unit when hood is closed
• Built-in booster configured to ensure 180° rinse
• Field convertible from straight to corner operation
• Dual NSF listed as both a dishwasher and potwasher
• Sleep Mode - All internal heaters shut off after 4 hours idle
• Field Convertible - single to three, or three to single phase
• Door Interlock - locks door closed during the vent fan cycle
• Automatic drain valve - drains wash tank when power is off

• Racks ( Peg / Flat)
• Corner operation splash baffle
• Drain Water Tempering Kit (unmounted)
• NEW Built in detergent and rinse aid pumps
• NEW Champion ION scale prevention system
• Two point electrical connection (field installed)
