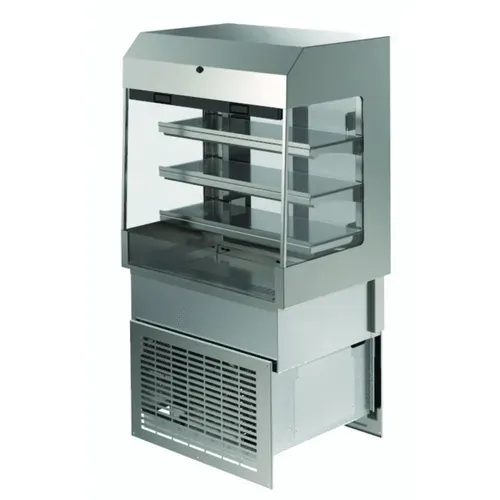

Delfield ASM-36P Air Screen Refrigerated Merchandiser
MPN#: ASM-36P
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Free Freight?
Quick Ship
$26,562.50
Contact us for details
Product Protection
Starting at
- 2025 model, meets the newest EPA and DOE codes.
Compressor warranty
1 year compressor warranty, standard
5 year compressor warranty (NET priced – no further discount)
Description
Delfield ASM-36P Description
Air Screen Refrigerated Merchandiser, drop-in, 36-1/4" L, (4) LED lights, bottom shelf, (3) 1/4" adjustable glass shelves, includes (2) louvers, sliding rear doors, security night cover, self-contained bottom mounted refrigeration, R290a, 1/3 HP, 115/208-240v/60/1, 3.7 amps, NEMA 14-20P, (35.13" x 25.50" cutout required), cUL, UL, NSF
Air Screen Drop-In Refrigerated Display Case Merchandiser, 36-1/4" L, (4) LED lights, bottom shelf, (3) 1/4" adjustable glass shelves, includes (2) louvers, sliding rear doors, security night cover, self-contained bottom-mounted refrigeration, R290a, 1/3 HP, 115/208-240v/60/1, 3.7 amps, NEMA 14-20P, (35.13" x 25.50" cutout required), cUL, UL, NSF (more refrigerated display cases and display cases available)
Options
Q & A
Delfield ASM-36P Specifications
| Refrigerant Type | R-290A |
|---|---|
| Brand | Delfield |
| Certifications | NSF, UL |
| Number of Shelves | 4 |
| Capacity | 8.2 cu. ft. |
| Design | Straight |
| Voltage | 115/208-240 Volts |
| Width (in) | 36.25 |
| Height (in) | 63.48 |
| Depth (in) | 26.00 |
| Weight | 350.00 |
Delfield ASM-36P Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
