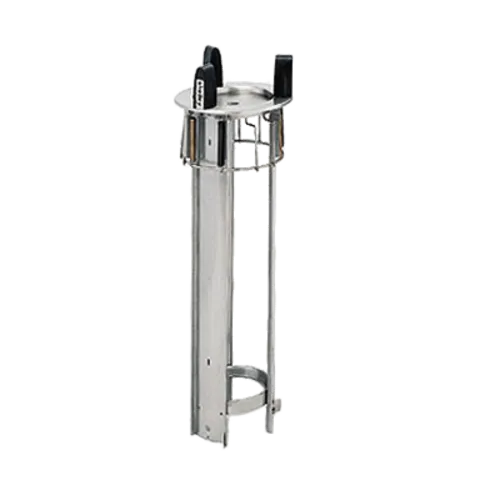

Delfield DIS-1200 Unheated Open Round Drop-In Dish Dispenser for 10-1/8 to 12" Dishes
MPN#: DIS-1200
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Call us for price
1-800-555-0666
Delfield DIS-1200 Accessories
Delfield DIS-SL Shorten dispenser tubes to special length
Call for price
Delfield DIS-NMR Non-marring rods for oval dishes & diameter
Call for price
Delfield DIS-HDR Hold-down rod for dispenser tubes
Call for price
Description
Delfield DIS-1200 Description
Dispenser, Plate, drop-in type, single self-elevating dish dispensing tube, maximum dish size approximately 12" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 14-3/4", flange diameter 15.38, cUL, UL, NSF (contact factory for price)
Dispenser, Plate, drop-in type, single self-elevating dish dispensing tube, maximum dish size approximately 12" diameter, steel frame, stainless steel tubes and exterior, cut-out diameter 14-3/4", flange diameter 15.38, cUL, UL, NSF
Standard Features:
Standard Features:
- Spring supports to be stainless steel
- High impact plastic guide posts mounted to flange
- One year parts and 90 day labor standard warranty
- Flange, channels and bottom to be integrally welded
- Carrier head made of welded rods with a removable top plate
- Top flange, bottom brace and vertical side channels are stainless steel
- Self-leveling mechanism, field adjustable by adding or removing springs
- DIS-ET/QT Series Only
- 4’ cord and plug
- Filtered air intake
- Outer stainless steel jacket
- QT- Shall have a stainless steel cover
- On/off switch and adjustable thermostat
- Convection heating module and fan motor
- ET temperature range is 120-140°F (49-60°C)
- QT temperature range is 150-170°F (66-77°C)
Options & Accessories
- Special voltages
- Hold-down rod for dispenser tubes
- Shorten dispenser tubes to special length
- Stainless steel tube cover (500-725 sizes only)
- Stainless steel outer jacket for dispenser tubes-non-heated (standard on ET or QT)
- Non-marring adjustment rods for oval dishes and various dish diameters (813–1450 sizes only)
- Stainless steel dome cover with access to dishes (813-1450 sizes only; standard on QT models)
- 12.00” (30cm) dia. stainless steel dish dispenser tray (DIS-1200, DIS-1200-ET and DIS-1200-QT only)
Specifications
Dispenser tube shall have three vertical side channels, bottom brace and top supporting flange of stainless steel. Self-leveling mechanism shall be field adjustable by adding or removing stainless steel extension springs on perimeter of vertical side channels. Dis-Et even temp heated dispensers have a stainless steel outer jacket. Unit shall be supplied with 4’0” (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase. DIS-QT quick temp heated dispensers have a stainless steel outer jacket and cover. Unit shall be supplied with 4’ (1.2m) cord and NEMA 5-15P plug. Electrical connections shall be 120 volt, 60 hertz, single phase.
Options
Q & A
Delfield DIS-1200 Specifications
| Brand | Delfield |
|---|---|
| Certifications | NSF |
| Type | Unheated |
| Dish Diameter | for 10-1/8 to 12" Dishes |
| Shape | Round |
| Style | Open |
| Height (in) | 28 |
| Weight | 15 |
