Glastender DI-FR Ice Cream Freezer

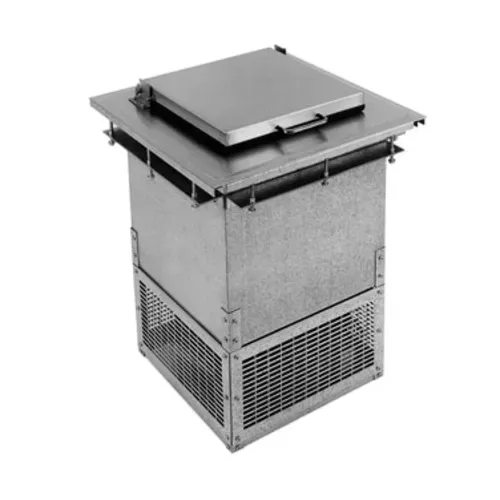

Photo of the Glastender DI-FR Ice Cream Freezer
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
- CFC Free foamed-in-place insulation
- Six foot grounded cord and plug provided
- Refer to reverse side for mounting instructions
- Available sizes for one or two 3-gallon containers
- All faucets are NSF/ANSI 372 low lead compliant
- Available with integral 6″ diameter draining dipper well and faucet
- Stainless steel work surface, lid, and interior liner with galvanized steel exterior wrap
- Special angle brackets, U-channels, and mounting bolts provided for easy installation and allows unit to be removed if necessary
- NOTE: The standard top lifts up and the special hinges allow the lid to remain open while dipping. A special “flip lid” is available on the models that hold two 3-gallon containers. The flip lid is hinged in the middle and opens from each end. The flip lid models are specified with the suffix ‘-FL’ on the end of the model number.
- 1/4 HP, R404A refrigerant
- 1,945 BTU/hr heat rejection
- Operating Range
- -5°F (-20°C) to 10°F (-12°C)
- Inside Dimensions
- DI-FR models- 10-1/8″ x 10-1/8″ x 12 1/2″
- DI-FR36 models- 10-1/8″ x 20-1/8″ x 12 1/2″
- 120V, 1 phase, 60 Hz, 4.75 full load amps
- Dedicated 15 amp circuit is recommended
- Includes 6 foot NEMA 5-15P grounded cord and plug
- DI-FR models holds one 3-gallon container
- DI-FR36 models holds two 3-gallon containers
- Accepts 3/8″ cold water leads (when ordered with dipper well)
- Stainless steel parts include: work surface, interior liner, lid, and dipper well
- Galvanized steel parts include: exterior wrap and condensing unit base plate
- 1-1/2″ I.P.S. (when ordered with dipper well) Threaded drain will fit Dearborn part #8033 slipnut and part #W-573P washer.
