Glastender GT-18+2-IC Glasswasher Station

Glastender GT-18+2-IC Glasswasher Station
Free Freight
Price $4,622

You will earn 4,622 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $115.92/mo.

Width (in)42.00
Height (in)38.50
Depth (in)19.00
You May Also Need

Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

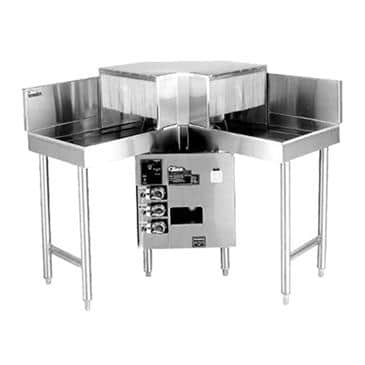

Glasswasher Station, corner pass-thru, 42"W x 19"D O.A., 18"W glasswasher with built-in corner drain tables, low temperature chemical sanitizing, washes (720) 2-1/2" diameter glasses per hour, 10" maximum glass height, intelligent microprocessor control, automatic chemical pumps, digital temperature gauge, prime switch, removable top & side panels, external chemical storage, includes (2) 16" diameter polypropylene racks & (2) curtains, stainless steel construction, stainless steel legs with adjustable feet, 1/6 HP water pump, cETLus, ETL-Sanitation

Standard Features:
  • Set of two end curtains included
  • Prime Switch for quick chemical priming
  • Removable side panels for easy service access
  • Two 16" diameter polypropylene racks included
  • Drive Wheel and Glass Rack lift out for cleaning
  • Digital temperature gauge built into switch panel
  • 1/6 HP pump recirculates wash water and rinse water
  • Built-in drain tables on each side to provide glass landing area and increase throughput
  • Automatic peristaltic metering pumps accurately dispense detergent, sanitizer and rinse aid
  • Fractional HP drive motor powers the belt-driven rotary rack and includes built-in slip clutch
  • Intelligent microprocessor control delays cycle start, up to two minutes, when incoming water is below 120°F (49°C)
  • Spray box unlatches for easy cleaning and visual inspection - 15 spray nozzles have been engineered for maximum soil removal
  • Removable top for easy cleaning access (GT-18, GT-18+1, GT-18+1L, GT-18+1R, GT-18+2, and GT-18+2-IC tops are interchangeable)
  • Drain
    • 1-1/2" tailpiece
    • Use open type floor drain for maximum drainage
  • Rinse Aid
    • Liquid Rinse Aid adjusted for proper sheeting
  • Materials
    • 20 gauge stainless steel parts include: cabinet
    • 11 gauge stainless steel parts include: drive wheel
    • 18 gauge stainless steel parts include: floor and tanks
    • 16 gauge stainless steel parts include: leg mounting brackets and legs
  • Electrical
    • Power requirements - 3.5 amps
    • Dedicated 15 amp circuit recommended
    • 120V, single phase, 60Hz, 6-foot NEMA 5-15P grounded cord included
  • Sanitizer
    • Liquid chlorine bleach (sodium hypochlorite - 5.25% solution) adjusted to 50 ppm
  • Detergent
    • Consult local chemical supplier to match detergent with local water conditions
    • Extra heavy duty, non-foaming, commercial liquid dishwashing detergent is required - .30% concentration
  • Capacity
    • 2 minute cycle, 70 second wash and 22 second rinse exposure
    • 720 - 2-1/2" diameter or 600 - 2-3/4" diameter glasses per hour (maximum glass height 10" - including pitchers and wine carafes)
  • Installation Considerations
    • Front side service is essential
    • 1" clearance required to remove top
    • Detergent, Sanitizer, and Rinse Aid containers are stored externally - sixfoot lengths of tubing are provided. Storage for three one-gallon containers is required within five feet.
  • General Plumbing
    • Minimum water pressure is 25 PSI
    • Install separate water shut-off valve
    • Minimum temperature is 120°F (49°C)
    • Maximum temperature is 150°F (66°C)
    • Consumption is 2-1/2 gallons per cycle
    • Plumb with 1/2" water supply. Adapt to 3/8" FMPT.
    • Unit has built-in air gap - vacuum breaker is not required
    • Maximum water pressure is 100 PSI. Install water pressure regulator if line pressure is over 100 PSI. Water valve on unit as built-in strainer and flow control to provide consistent volume between 25 and 100 PSI
