Globe SP25 Planetary Mixer
Calculate
Globe SP25 Specifications
| Speed | 3 |
|---|---|
| Speeds | 3 |
| Transmission Type | Gear-Driven |
| Type | Stand Mixers |
| Brand | Globe |
| Certifications | 5-15P |
| Capacity | 21-40 qt. |
| Color | Gray |
| Style | Lift |
| Usage | Heavy Duty |
| Voltage | 115 Volts |
| Width (in) | 22 |
| Height (in) | 42 |
| Depth (in) | 25 |
| Weight | 325.00 |
Additional Information on Globe SP25
capacity-chart.pdf
wiring-diagram.pdf
enhancements-to-globe-warranty-program.pdf
parts-manual.pdf
globe-sp25-25-qt-planetary-bench-mixer.pdf
middleby-financial-flyer.pdf
product-guide.pdf
warranty-sheet.pdf
globe-sp25.specsheet.pdf
owner-s-manual.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Globe SP25 Certifications
5-15P
Two-pole with ground pin plug
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Globe SP25 Description

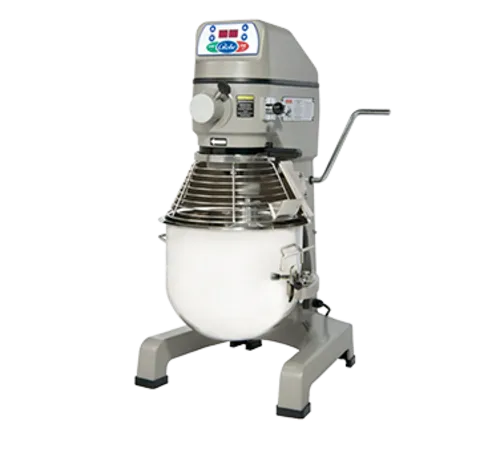

The SP25 Planetary Mixer from Globe is a bench model featuring a 25-quart stainless steel bowl and a ¾ HP custom-built motor. Power is efficiently delivered through a high-torque transmission with heat-treated hardened steel alloy shafts and gears. The transmission is permanently lubricated for extended reliability. To prevent the motor from damage, thermal overload protection will shut the unit down if it begins to overheat. The mixer has three fixed agitator speeds: 101 RPM 185 RPM and 355 RPM.
For convenience, a standard #12 PTO hub is included at the front of accessories such a vegetable slicer. The PTO runs off the same three-speed transmission and runs at 57 RPM, 105 RPM, and 202 RPM. The front-mounted control panel features touchpads and includes last-batch recall and a 60-minute timer.
The removable bowl guard is easy to clean and features an interlock for safety and a welded ingredient chute makes adding extra ingredients simple without stopping operation.
This bench mixer uses standard 115v/60/1-ph power at 11.0 amps and comes with a 6-foot power cord that terminates in a NEMA 5-15P plug.
- Three fixed speeds
- Interlocked bowl lift
- Rigid cast iron body
- 6-foot cord and ground plug
- Thermal overload protection
- NSF approved enamel gray paint
- Powerful 3/4 HP custom built motor
- Permanently lubricated transmission
- Industry standard #12 attachment hub
- Gear-driven, high-torque transmission
- Heat-treated hardened steel alloy gears & shafts
- Front-mounted touch pad controls with 60-minute digital timer and last-batch recall
- Removable stainless steel, interlocking bowl guard with built-in fully welded ingredient chute
- Non-slip rubber feet
- Aluminum flat beater
- Stainless steel wire whip
- Aluminum spiral dough hook
- 25-qt. stainless steel bowl (#304 series)
- Two years parts and labor
- Seismic flange kit
- 10-qt. adapter kit
- Extended warranty
- Strip cutter for #12 hub
- Meat grinder for #12 hub
- Stainless steel flat beater
- Mixer table with undershelf
- Meat tenderizer for #12 hub
- Stainless steel spiral dough hook
- Slicer/shredder/grater for #12 hub
- Polycarbonate splash shield insert
| Features | |
|---|---|
| • : | Gear-driven, high torque transmission Powerful 3/4 HP custom built motor Thermal overload protection Front-mounted digital controls with 60 minute timer and last batch recall 6 foot cord and ground plug Industry standard #12 attachment hub Non-slip rubber feet Interlocking guard is easy to attach and remove for cleaning Heat-treated hardened steel alloy gears and shafts Rigid cast iron body Permanently lubricated transmission NSF approved enamel gray paint Three fi xed speeds Safety interlocked bowl guard and bowl lift Dish machine safe High-quality stainless steel removable bowl guard with built-in ingredient chute |
