Hatco HWBLIBRT-FUL Built-In Heated Well

Hatco HWBLIBRT-FUL Built-In Heated Well
Free Freight
Price $347.05

You will earn 347.05 Reward Points.

You will earn 347.05 Reward Points.

More from Hatco
Width (in)14.00
Height (in)9.50
Depth (in)22.00
You May Also Need
Hatco ST PAN 2 Food Pan
Hatco ST PAN 4 Food Pan
Hatco 4QT-LID Lid
Hatco 4QT-LID-1 Lid
Hatco 7QT-LID Lid
Hatco 7QT-LID-1 Lid
Hatco 11QT-LID Lid
Hatco 11QT-LID-1 Lid
Hatco HWB-3-4Q Adapter
Hatco HWB-2-7Q Adapter

Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

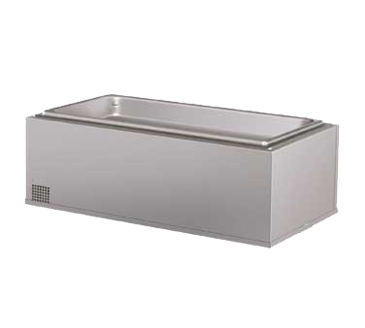

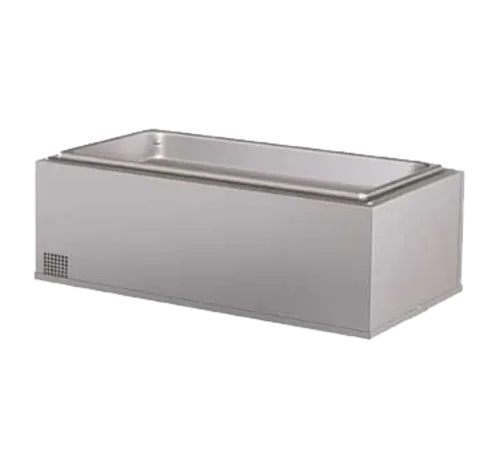

(Fabricator component only) Built-In Heated Well, rectangular, insulated, bottom mounted, full size pan, thermostatic controls with lit rocker switch & leads, stainless steel construction (low watt), cURus
Standard Features:
Hatco's Built-In Full-Size Insulated UR and C-UR Heated Wells are recognized as having UL components that hold hot food products at safe serving temperatures, plus have the added benefit of allowing fabricators the freedom to design their own steam tables. The rugged, quality construction ensures that Hatco Heated Wells will last through the rigors of commercial use.
  • With or without drains
  • Thermostatic controls available
  • EZ locking hardware for quick installation
  • Low (120V only), Standard and High Watt
  • Without conduit and control box enclosure
  • Easy service access to heating elements and thermostats
  • Mounting kits for combustible or thicker countertops available
  • Accessory adapters to convert full-size wells to hold round pans
  • Rectangular Full-Size Insulated Heated Well in top or bottom mount
  • Thicker stainless steel construction and solid brazed joints for durability
  • 50% larger drain with flat screen simplifies cleaning and holds pans level
  • Superior thermostat controls that read the actual temperature of the well and add heat only if needed
  • Fully insulated wells on sides and bottom ensure better heat retention, and cooler surrounding surfaces for customer safety
  • Thermostatic controls feature a separate lighted ON/OFF switch and temperature dial, allowing preset temperatures to be maintained
  • Rectangular Full-Size Stainless Steel Food Pans:
    • Full-Size (4" [101 mm] H)
    • Full-Size (6" [152 mm] H)
    • Full-Size (2.5" [64 mm] H)
    • Half-Size (2.5" [64 mm] H)
    • Third-Size (2.5" [64 mm] H)
  • Round Food Pans:
    • 4-Quart (4-Liter)
    • 7-Quart (7-Liter)
  • Hinged Lid for Round Pans:
    • 4-Quart (4-Liter)
    • 7-Quart (7-Liter)
  • Notched Lid for Round Pans:
    • 4-Quart (4-Liter)
    • 7-Quart (7-Liter)
  • Stainless Steel Wire Trivets:
    • Full-Size
    • Half-Size
  • Adapter to convert warmers to hold Round Pans
    • Holds two 7-Quart (7-Liter) Inserts
    • Holds three 4-Quart (4-Liter) Inserts
  • Support Bars:
    • 12" (305 mm)
    • 20" (508 mm)
  • Mounting Kit for:
    • Thicker countertops
    • Combustible countertops
  • ¾" Ball Valve for unit with Drains
  • ¾" Gate Valve for unit with Drains
  • Heated Well Remote Handle for ¾" Drains (requires a Ball or Gate Valve)
Controls & leads
What is included
  • Voltage: 120v/60/1, 750w, 6.3 amps
  • Warranty: One year on-site parts and labor warranty, plus one additional year parts only warranty on the metal sheathed elements
