Lakeside Manufacturing Manufacturing S4011 Dish Dispenser

Made in USA
Lakeside Manufacturing Manufacturing S4011 Dish Dispenser
Regularly Stocked
Free Freight
Price $649

You will earn 649 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

Request a Quote

  • There is a $375 min. order requirement from this manufacturer

BrandLakeside Manufacturing
Made inUSA
Dish Diameter10.5 - 11.3 Inches
Width (in)14.50
Height (in)31.00
Depth (in)14.50
Length (in)14 1/2 Inches
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

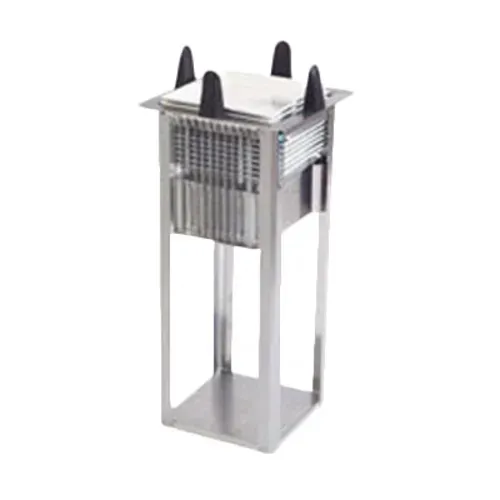

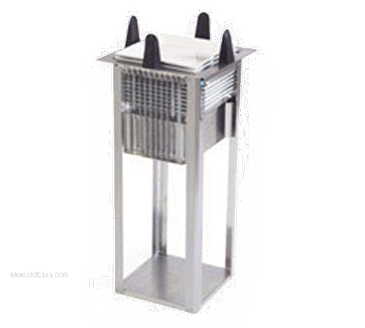

Dish Dispenser, open frame, drop-in, single self-leveling dish dispensing tube, Easy-Glideā„¢ design, square plate size 10-1/2" to 11-1/4", stainless steel construction, NSF, UL, Made in USA
Standard Features:
Dispensing level is easily adjusted by attaching or detaching springs. No tools required.
  • All models have a 25” stacking capacity.
  • High-strength welded stainless steel frame
  • Models available to fit plates from 5” to 12”.
  • Easy-Glide ™ design provides quiet, non-stick operation.
  • Heated dispensers feature thermostatic control. Thermostat minimum 100°F (38°C) - maximum 175°F (79°C).
Optional Accessories:
  • 220 VAC 50 Hz (heated models)
  • 208/240 VAC 60Hz (heated models)
Unit shall be of welded stainless steel construction to dispense square dishes. Dispensers shall hang from surface opening by a 14-gauge flange rim and feature four each 18-gauge vertical corner supports welded to 18-gauge bottom plate. Self-leveling dish carriage shall be of welded stainless steel construction and shall travel vertically in dispenser tube with nylon roller guides for smooth operation. Carriage shall have 20-gauge removable dish platform. Unit shall feature flange mounted extension springs on two sides, which are detachable from the dish carriage to provide adjustment without tools for different weight dishes. Unit shall have a vertical stacking capacity of 25" (635 mm). Shielded and heated models shall have a 24-gauge skin enclosure Unit shall be NSF listed.
Heated Models Only: Unit shall be 120 VAC 60 Hz and shall have 5´ (1524 mm) power supply cable with L15-5R NEMA twist lock plug for 120 VAC. Dispenser tubes shall be fully enclosed in 24-gauge stainless steel, and have a circular bottom mounted 450 watt heater element to provide convection heat. Heating system shall feature thermostatic control in a tamper protective location with safe highend shut-off. Control shall have infinite settings between low and high temperature cut-outs. Thermostat shall be field adjustable for average interior air temperature between 100° F (38° C) and 175° F (79° C) at middle adjustable thermostatic setting. On-off switch and power indicator light shall be mounted on top flange of dispenser. Average dish temperature rise of 40° F (22° C) above ambient shall be achieved within one hour of initial heating cycle at middle adjustable thermostatic setting. Unit shall be UL listed.


This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.



UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
