Name: Magikitch'n FM-RMB-624CR Radiant Charbroiler
Brand: Magikitch'n
SKU: FM-RMB-624CR
Price: 10364.0 USD
Availability: InStock

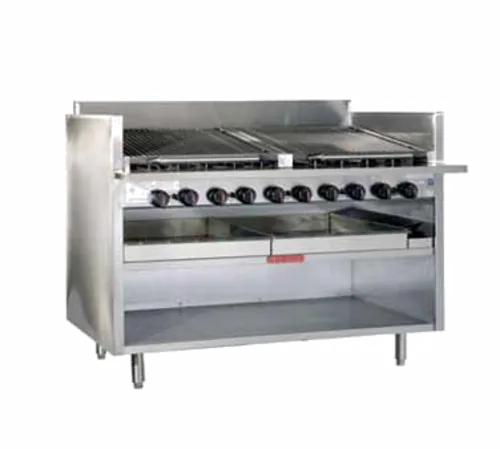

Magikitch'n FM-RMB-624CR Radiant Charbroiler

MPN#: FM-RMB-624CR

Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).

Magikitch'n FM-RMB-624CR Accessories

Magikitch'n 6M-MAGGRDL624 Charbroiler, Parts & Accessories 6M-MAGGRDL624

$1,990.00

Magikitch'n 5125-1541002 12.5" Griddle Insert for Cast Iron Top Grid 6M-BLKPLT-12

$1,190.11

Details
Options
Q & A (0)

Description

Magikitch'n FM-RMB-624CR Description

Radiant Charbroiler, floor model, gas, 24" wide, 39.5" high, free floating round rod top grate with EZ tilt to front grease trough, cast iron radiants, standing pilot, 95% stainless steel unit, 6" service shelf with utility bar, water tubs, open cabinet base, 6" adjustable legs, top grid scraper

Standard Features:

Water Tubs
Top Grid Scraper
6” adjustable legs
Runner tube pilot system
Single ¾” gas connection
MEA Approved Charbroiler
Towel bar for utensil storage
Stainless steel on all four sides
FM-SMB-600 - Ceramic coal screen
6” (15.2 cm) stainless service shelf
All stainless steel burners for long life
Convertible Radiant design to Coal style
Fully Insulated double walled outer cabinet
E-Z Tilt top grid drains grease into front trough
FM-RMB-600 - V-shaped radiant for each burner
Individual front burner controls for precise regulation
Round top grid with standard spacing with quick lift handle
Charbroiler Burners are 15Kbtu or optional High output 20Kbtu
Free floating top grid ½” (1.3 cm) steel rods allows expansion and contraction without warping
Note: More Restaurant Equipment, Cooking Equipment & Commercial Grills are available.

Options & Accessories: (Additional Cost)

6” casters
Back Shelf
Lower Rack
Smoker Box
Slip On Covers
Fajita Rack Inserts
Round Rod Top Grid
MagiKrome Top Grids
Divider for Pan cutouts
Scround Rod Top Grids
Cooking Mode Conversion Kits
MagiGriddle (Replaces top grid)
Service Shelf with towel bar towel bar
Cutting Boards (10” or 12” shelves only)
Quick Disconnect gas hose and lanyard kit
Side and Back Extensions (N/A with back shelf)
Pan Cutouts in Service Shelf (specify with order)
Safety Pilot (supervised pilot system, see gas installation requirements)
6" Cast Iron Top Grids (3 independent adjustable positions with reversible wide and thin marking)

Options for Magikitch'n FM-RMB-624CR

Gas flex hose with quick disconnect

36" x 3/4" Flexible gas hose with quick disconnect, restraining device & shut-off (Dormont) +$498.46

Steel & chrome grids

MagiChrome Grid, 3/16" fish spacing between rods +$885.46

MagiChrome Grid, 5/16" standard spacing between rods +$622.18

Replacement Steel Grid, 5/16" standard spacing between rods +$740.90

Scround Grid, 3/16" fish spacing between rods +$885.46

Scround Grid, 5/16" standard spacing between rods +$766.27

Steel Grid, 3/16" fish spacing between rods +$697.85

Steel Grid, 5/16" standard spacing between rods, standard (n/c)

Lower rack

With lower rack, for use as a cheesemelter +$665.68

Safety pilot

Safety pilot shutoff +$703.29

Export note

NOTE: For application or installation outside of the U.S. (Contact factory for quote)

Startup program

Startup program, for first serial number (submit on request at least 5 business days in advance) +$537.42

Startup program, for each additional serial number at same location (submit on request at least 5 business days in advance) priced per each +$174.90

Cast-iron grids

Cast-Iron diamond grates, (3) 6-1/4" sections +$396.50

Cast-Iron top grids, (3) 6-1/4" sections, reversible, 3/16" fish spacing between rods +$860.08

Cast-Iron top grids, (3) 6-1/4" sections, reversible, 5/16" standard spacing between rods +$860.08

Back shelf

Back shelf (24") +$947.99

Burner options

High output burners, 80,000 BTU +$463.57

Standard output burners 60,000 BTU

Accessories

Blackening plate, per 6" (requires cast iron top grid option) +$401.49

MagiCoals - ceramic briquettes, box of 100 +$271.43

Smoke box shovel +$458.13

Smoke box upgrade (requires water tubs & service shelf), quantity (1), each +$596.35

Side & back extensions, stainless steel (cannot be used if Cast Iron Grid options are selected) (for the 24" Wide unit) +$566.89

Slip-On Covers 2ft (For Use On A 24" Unit) +$338.96

Coal screen (24" unit) +$534.26

Gas type

LP gas, specify elevation if over 2000 feet

Natural gas, specify elevation if over 2000 feet

Shelves

Stainless steel service shelf, 10" deep +$820.65

Stainless steel service shelf, 12" deep +$884.09

Stainless steel service shelf, 8" deep +$602.24

Stainless steel service shelf, 6" deep, standard

Mounting options

Additional Legs, 6" stainless steel (set of 4) +$306.33

Casters, set of 4 (2 locking, 2 non-locking) (used on 24" Wide to 60" Wide units) +$501.19

What is included

Standard warranty: 2 year limited parts and labor warranty, standard

Q & A

Magikitch'n Magikitch'n FM-RMB-624CR Radiant Charbroiler

Magikitch'n FM-RMB-624CR Specifications

Total BTU	12000 - 55000
BTU	15,000 BTU
Power Type	Convertible Gas
Installation Type	Freestanding
Heating Source	Radiant
Brand	Magikitch'n
Number of Burners	4
Control Type	Manual
BTU per Burner	15,000 BTU
Heat	Gas
Usage	Standard Duty
Width (in)	240
Height (in)	39.50
Depth (in)	33.50
Weight	240
