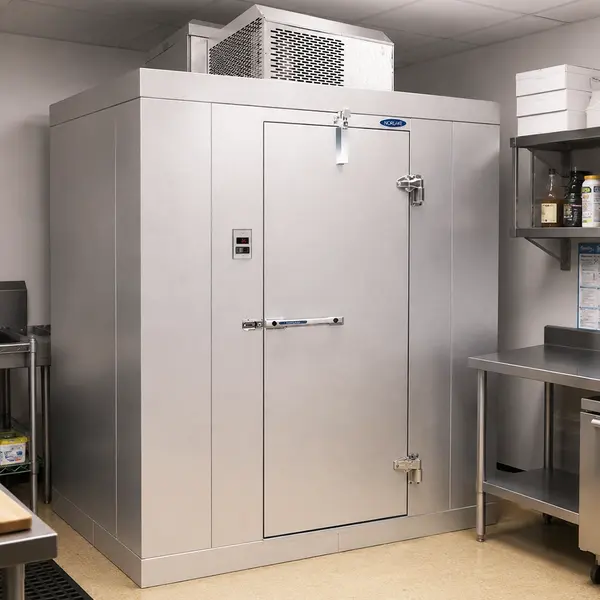

Nor-Lake KLB7788-C Walk-In Cooler & Top Mounted Compressor

(1)
KLB7788-C
Made in USA
Stock Status
Updating. Please wait...
Free Freight
$15,401.93

for more information

$10,384.42

You will earn 15402 Reward Points.

Product Protection
Coverage starting at
FINANCE

Monthly Payment *

Finance Payment Calculator
$223.16
* The above amount may vary depending on the applicant's credit history.
  • A refrigeration Technician is not required.
  • 2023 model, meets the newest EPA and DOE codes.
  • Our Exclusive FREE extras:
  • Stainless Steel 30'' x 36'' door kick-plate
  • Standard features
  • Full 4” thick panels foamed-in-place with HFC-245fa polyurethane insulation which is CFC and HCFC free
  • Free electronic controls and digital thermometer
  • Note! Refrigeration systems weigh 175lbs to 350lbs. and may require a hoist. The electrical hook-up may require a licensed electrician.

Nor-Lake KLB7788-C Specifications

Nominal Depth8 Feet
Nominal Width8 Feet
BrandNor-Lake
Refrigerant TypeR-290
Refrigeration MountedTop
Made inUSA
ShippingQuick Ship Model
CategoryWalk In Cooler, Modular, Self-Contained
Compressor LocationTop Mounted
With FloorFloor Included
UsageIndoor
Voltage115 Volts
Width (in)96
Height (in)91
Depth (in)96
Weight1511.00

Nor-Lake KLB7788-C Description

Kold Locker™, Indoor +35°F Cooler, 8' x 8' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, self-closing door, locking deadbolt handle, KL2 QUALIFIER, CPB075PC-S-0, R290 Capsule Pak Refrigeration, 115v/60/1-ph

For operations that require a large amount of refrigerated space, a walk-in unit like the KLB7788-C 8' x 8' x 7'-7" H Kold Locker from NorLake is a great option. This walk-in coolers with top mounted compressor has a height of 7’7” providing additional vertical space and in total the interior offers 372 cu. ft. of refrigerated space.

This cooler is made up of 4” thick panels featuring foamed-in-place polyurethane insulation to keep the heat where it belongs, outside. Both sides of the panel have 26 gauge corrosion-resistant stucco embossed coated steel. Assembly is easy since each panel has female and male rails that overlap for a mechanically air-tight design. Foamed-in-place cam locking fasteners ensure that panels lock together tightly for a secure seal. The corners are protected by a continuous panel gasket that goes around the outer perimeter without any cuts or breaks. The ceiling panels feature foamed-in-place edge caps that will stay in place for the life of the cooler.

The door that ships standard with this walk-in unit is 26” wide and comes with a stepped profile providing a barrier against airflow. This door comes with two hinges both of which are cam-lift and adjustable. This allows the door to be easily adjusted over the lifetime of the walk-in as it settles. The door also comes with a spring-assisted door closer to make sure it’s never left ajar. The 4-foot wide door panel comes with the door pre-hung and includes a vapor-proof LED lighting fixture activated by a switch connected to an external indicator light, replaceable heating wire, stainless steel trim, and a digital thermometer. To keep items inside secure, an NL 9800 deadbolt handle is included with an independent key/padlock feature. To prevent lock-ins there is a safety release inside.

The interior temperature is efficiently maintained between 35°F and 38°F by the RCPB075JC-S-4-EV Capsule Pak Refrigeration System in the ceiling that produces 6250 BTU/hr of heat rejection. The Capsule Pak unit comes with the Enviro-Control™ electronic control system to adjust the temperature and set the timing for automatic defrosting. To remove the need for drain lines an automatic condensate vaporizer is shipped loose and needs to be wired in the field.

Nor-Lake KLB7788-C Walk-In Cooler & Top Mounted Compressor

Kold Locker *Walk-In Coolers with Top Mounted Compressor*
Standard Features:
  • STANDARD MODELS SHIP THE SAME DAY
  • DOE compliant
  • USDA accepted
  • Magnetic gasket
  • 15 year panel warranty
  • Cooler or freezer models
  • Indoor or outdoor models
  • 26" wide, self-closing door
  • CN UL flame spread listed
  • Perimeter door heater wire
  • Floor double sweep gasket
  • Spring actuated door closer
  • Sizes from 4' x 6' to 10' x 14'
  • Two temperatures: +35°F, -10°F
  • 18 months parts & labor warranty
  • Digital thermometer and light switch
  • Heavy duty adjustable cam-lift hinges
  • Three heights: 6'7" & 7'7" with floor; 7'4" floorless
  • Air-cooled condensing unit (wall mount - 10 day ship)
  • Smooth aluminum interior floor (on models with floor)
  • Floorless models supplied with NSF listed vinyl sealers
  • Oregon State listed, City of Houston listed & California State listed
  • Automatic condensate vaporizer. No drain line required on indoor units
  • Capsule Pak™ refrigeration system (ceiling or wall mount) (ordered separately)
  • Full 4" thick panels foamed-in-place with EPA-compliant polyurethane insulation
  • Deadbolt locking handle with independent key/padlock feature and inside safety release
  • Time clock or electronic control provided for automatic defrost on both coolers and freezers
  • 26 gauge corrosion resistant stucco embossed coated steel on all surfaces except interior floor
  • NSF, UL flame spread 25 or less on all foam cores; UL and CSA electrical listing on door sections
  • UL, C-UL listing on complete Capsule Pak™ refrigeration systems (see page 11 for listed components)
  • High output low profile LED light positioned above the door to prevent interference with shelving or product
Indoor Models
  • Hot gas condensate vaporizer available on many models
Outdoor Models
  • Refrigeration hood
  • -20°F ambient controls
  • White membrane roof and trim
Optional Features
  • Exterior ramp
  • Electric vaporizer
  • Floor tread plate kit
  • U-shaped shelving system
  • Door hood (outdoor models)
  • Five year compressor warranty
  • Condensing unit air deflector kit
  • Heights: 8'7" with floor, 8'4" without floor
  • Leak detector/alarm (may be a requirement in some areas)
  • Heater kit for outdoor use where ambient conditions may go below 32°F
  • Note: (Most options are available two weeks from receipt of order. Please contact us for specific questions)

Options for Nor-Lake KLB7788-C

Door width
Celsius thermometer, lights & trim
Door ramp & non-skid strips
Flat freight program
Lift gate delivery
NOTE:
Capsule Pak refrigeration
What is included
  • Temperature NOTE:: NOTE: Coolers are designed for +35 degree room temperature with 90 degree ambient and 100 degree temperature at condensing unit. Less floor coolers assumed no insulation under floor slab.
  • Install note: NOTE: A licensed electrician and refrigeration installer may be required to make all necessary refrigeration and electrical connections
  • Panel warranty: 15 year original equipment panel warranty
  • Manufacturer Note: Pricing is valid for 60 days upon receipt of purchase order AND approved drawing (if applicable). Order must ship per our current standard lead time or pricing will be subject to change. All shipments will be FOB Hudson, WI or New Albany, MS.
  • Capsule Pak NOTE:: Capsule Pak™ refrigeration is sized for holding duty only. If the ambient is higher than 100 degrees F or pull down capacity is required, a regular (non-Quick Ship) quote will be needed.
  • Compressor warranty: 18 Month Labor/Service and original equipment parts warranty
  • NOTE:: This model may be applicable for our KL2 2-day leadtime program. **Program applies to models with R290 or R449A Capsule Paks, 26” doors and no additional accessories (30" & 36" doors available with a 10-day leadtime). Contact your Inside Sales Specialist for details and qualification requirements.
