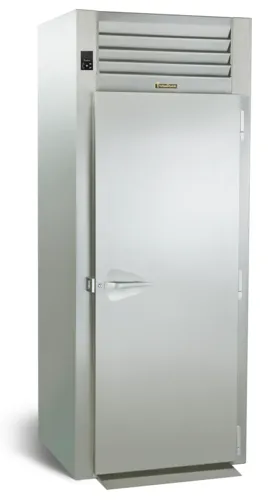

Traulsen AIH132L-FHS Spec-Line Heated Cabinet

AIH132L-FHS
Traulsen AIH132L-FHS Spec-Line Heated Cabinet
Free Freight
Price $8,530.83

Call Us For Pricing

LIVE CHAT

800-555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET

You will earn 8,530.83 Reward Points.

You will earn 8,143 Reward Points.

FINANCEFOR $204.23/mo.

Traulsen
More from Traulsen
PayPal CREDIT
  • Usually ships in 4-6 weeks
Specs
BrandTraulsen
Energy EfficiencyEnergy Star
ControlsINTELA-TRAUL"
Sections1
Width (in)35.5
Height (in)83.25
Depth (in)35.56
Weight390
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Description
Spec-Line Heated Cabinet, Roll-in, one-section, stainless steel exterior, aluminum interior, standard depth cabinet, full-height doors, accepts 66" high racks (by others) with INTELA-TRAUL™, cULus, NSF

Standard Features:
Traulsen dependable roll-in hot food holding cabinets are built using our high performance ducted fan air distribution system. Unlike designs which simply radiate heat, this minimizes temperature stratification inside the cabinet, while providing for quicker daily start-up, lower energy usage, and reduced lifetime service costs. Each is supplied standard with easy to operate microprocessor controls, stainless steel exteriors, and are communications capable.
  • Stainless Steel Door Liner
  • Stainless Steel Breaker Caps
  • Stainless Steel Threshold Ramp(s)
  • Ducted Fan Air Distribution System
  • Stainless Steel Interior Rack Guides
  • Guaranteed For Life Cam-Lift Hinges
  • Three Year Parts And Labor Warranty
  • ON/OFF Switch Located On Control Face
  • R-Series: Stainless Steel Exterior & Interior
  • Magnetic Snap-In EZ-Clean Door Gasket(s)
  • Stainless Steel One-Piece Louver Assembly
  • Automatically Activated Incandescent Lights
  • Two Year Control Warranty (parts and labor)
  • Full Length Stainless Steel Doors With Locks
  • INTELA-TRAUL® Microprocessor Control System
  • 9' Cord & Plug Attached (one section models only)
  • One-Time Start-Up Temperature Adjustment Feature
  • Standard Operating Temperature Range 140 to 180°F
  • Guaranteed For Life Horizontal Work Flow Door Handle(s)
  • Self-Closing Doors With Stay Open Feature At 120 Degrees
  • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
  • Accommodates Roll-In Racks Up To 66" High (provided by others)
  • Standard Door Hinging: 132L = Right, 232L = Left/Right, 332L = Left/Right/Right (other hingings available)
Options & Accessories:
  • Fluorescent Lights
  • Export 220/50/1 Voltage
  • Re-Hinging Feature For Door(s)
  • Kool Klad Exterior Laminate Decor
  • Additional Wire Shelves For Above
  • Prison/Correctional Facilities Options
  • Additional Stainless Steel Shelves For Above
  • Locking Hasps (padlocks supplied by others)
  • 115/60/1 Voltage (single section models only)
  • Stainless Steel Finished Back With Rear Louvers
  • Clear Glass Door(s) In Place Of One Or More Solid Door(s)
  • Wire Shelf Package For Roll-In Models (includes three wire shelves per section)
  • Stainless Steel Shelf Package For Roll-In Models (includes three stainless steel shelves per section)
Specifications:
Construction, Hardware and Insulation
  • Cabinet exterior front, one piece sides, louver assembly and doors are constructed of 20 gauge stainless steel with #4 finish. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back and bottom are constructed of heavy gauge aluminized steel. The interior floor and exterior bottom are constructed of stainless steel and insulated with 3 ⁄4" of resilient cork. A readily attachable stainless steel ramp is provided. Doors are equipped with a heavy-duty, extruded wiper gasket for sealing to bottom ramp, removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a concealed switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handles are mounted horizontally over recess in door which limits protrusion from door face into aisleways. Doors have seamless, polished metal corners. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Both the cabinet and door(s) are insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane.
Heating System
  • A low watt density, serpentine style, heater is employed for the generation of electric heat. Low velocity air is forced across its large surface area to efficiently move heat radiating away from these through a down-air distribution duct, where it is then evenly distributed throughout the cabinet, assuring the proper holding environment for hot food product, without drying. A vent, located at the top of the cabinet, is included for positive humidity control.
Controller
  • The easy to use water resistant INTELA-TRAUL® microprocessor control system is supplied standard. RS485 data port enables data communications for remote monitoring such as NAFEM Data Protocol, E-Control Systems® and others. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.
Interior
  • Readily removable, interior-mounted, stainless steel guides for rack are provided for protection. Maximum rack size with wheels inboard of frame is 27" wide by 29" deep by 66" high. Racks supplied by others.
Warranties
  • A three year parts and labor warranty is provided standard.

Options
Export crating
Shelf packages
Door hinging
Options & accessories
Voltages
Features
Standard Product Features: • R-Series: Stainless Steel Exterior & Interior • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior • INTELA-TRAUL® Microprocessor Control System • Ducted Fan Air Distribution System • Standard Operating Temperature Range 140 to 180°F • One-Time Start-Up Temperature Adjustment Feature • ON/OFF Switch Located On Control Face • Full Length Stainless Steel Doors With Locks • Self-Closing Doors With Stay Open Feature At 120 Degrees • Guaranteed For Life Cam-Lift Hinges • Guaranteed For Life Horizontal Work Flow Door Handle(s) • Standard Door Hinging: 132L = Right, 232L = Left/Right, 332L = Left/Right/Right (other hingings available) • Automatically Activated Incandescent Lights • Stainless Steel Breaker Caps • Accommodates Roll-In Racks Up To 66" High (provided by others) • Magnetic Snap-In EZ-Clean Door Gasket(s) • Stainless Steel Door Liner • Stainless Steel Interior Rack Guides • Stainless Steel Threshold Ramp(s) • Stainless Steel One-Piece Louver Assembly • 9' Cord & Plug Attached (one section models only) • Three Year Parts And Labor Warranty • Two Year Control Warranty (parts and labor)
Warranties: A three year parts and labor warranty is provided standard.
Options & Accessories: • Stainless Steel Finished Back With Rear Louvers • Re-Hinging Feature For Door(s) • Wire Shelf Package For Roll-In Models (includes three wire shelves per section) • Additional Wire Shelves For Above • Stainless Steel Shelf Package For Roll-In Models (includes three stainless steel shelves per section) • Additional Stainless Steel Shelves For Above • Locking Hasps (padlocks supplied by others) • 115/60/1 Voltage (single section models only) • Export 220/50/1 Voltage • Kool Klad Exterior Laminate Decor • Clear Glass Door(s) In Place Of One Or More Solid Door(s) • Fluorescent Lights • Prison/Correctional Facilities Options
Controller: The easy to use water resistant INTELA-TRAUL® microprocessor control system is supplied standard. RS485 data port enables data communications for remote monitoring such as NAFEM Data Protocol, E-Control Systems® and others. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption
Construction, Hardware and Insulation: Cabinet exterior front, one piece sides, louver assembly and doors are constructed of 20 gauge stainless steel with #4 finish. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back and bottom are constructed of heavy gauge aluminized steel. The interior floor and exterior bottom are constructed of stainless steel and insulated with 3 ⁄4" of resilient cork. A readily attachable stainless steel ramp is provided. Doors are equipped with a heavy-duty, extruded wiper gasket for sealing to bottom ramp, removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a concealed switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handles are mounted horizontally over recess in door which limits protrusion from door face into aisleways. Doors have seamless, polished metal corners. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Both the cabinet and door(s) are insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane.
Heating System: A low watt density, serpentine style, heater is employed for the generation of electric heat. Low velocity air is forced across its large surface area to efficiently move heat radiating away from these through a down-air distribution duct, where it is then evenly distributed throughout the cabinet, assuring the proper holding environment for hot food product, without drying. A vent, located at the top of the cabinet, is included for positive humidity control.
Interior: Readily removable, interior-mounted, stainless steel guides for rack are provided for protection. Maximum rack size with wheels inboard of frame is 27" wide by 29" deep by 66" high. Racks supplied by others.
