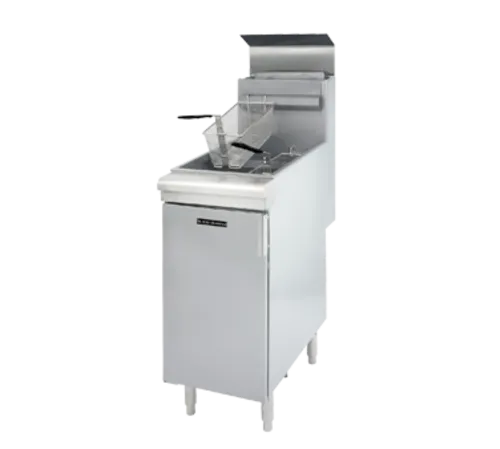

Admiral Craft BDGF-120/NG Black Diamond 15 - 50 lb. Gas Floor Model Full Pot Fryer with Thermostatic Controls - 120,000 BTU
SKU#: BDGF-120/NG
Free Freight?
Quick Ship
$823.34
Product Protection
Starting at
Admiral Craft BDGF-120/NG Specifications
| Total BTU | 120,000 BTU |
|---|---|
| Series | Black Diamond |
| Installation Type | Floor Model |
| Construction | Galvanized and Stainless Steel |
| Burner Style | Tube |
| Brand | Admiral Craft |
| Certifications | ETL |
| BTU | 120,000 BTU |
| Power Type | Gas |
| Control Type | Thermostatic |
| Controls | Thermostatically |
| Capacity | 15 - 50 lb. |
| Heat | Natural Gas |
| Width (in) | 15.5 |
| Height (in) | 53.5 |
| Depth (in) | 30.25 |
| Weight | 180.00 |
Additional Information on Admiral Craft BDGF-120/NG
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Admiral Craft BDGF-120/NG Certifications
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Admiral Craft BDGF-120/NG Description
Black Diamond Commercial Deep Fryer, floor standing, natural gas, 45-50 lbs. capacity, thermostatically controlled, automatic shut off, stainless steel tank, includes (2) baskets, built-in integrated flue deflector, stainless steel front & door with galvanized sides & back, adjustable legs, 120,000 BTU, cETLus, ETL-Sanitation
Standard Features:
Construction
- Standing pilot light design provides a ready flame when heat is required
- Cabinet is constructed with a stainless steel front and door with galvanized sides and back
- Welded 16 gauge stainless steel tank with a super smooth machine finish ensures easy cleaning
- Long lasting baffl es are mounted in the heat exchange tubes to provide maximum heating and combustion efficiency
Controls
- Includes Robert Shaw components that are made in the USA
- Thermostat maintains temperature between 200° (93°C) and 400°F (204°C)
- Temperature limit automatically shuts off all gas flow if the fryer temperature exceeds 450°F (232°C)
- Integrated gas control valve acts as a manual and pilot valve, automatic pilot valve, gas filter, pressure regulator and automatic main valve
- Gas control valve prevents gas flow to the main burner until pilot is established and shuts off gas flow automatically if the pilot flame goes out
Operation
- Front 1-1/4” drain for quick draining
- Standing pilot and thermostat maintain temperature automatically at the selected temperature (between 200°F (93°C) and 400°F (204°C))
Standard Accessories
- 6” adjustable legs
- One drain extension
- Built-in heat deflector
- One nickel plated tube rack
- Two nickel plated oblong wire mesh baskets
Available Accessories (Sold separately)
- Casters
- Joiner Strips
- Splash Guard
- Stainless Steel Cover
