Beverage Air DD24HC-1-B 1 Tap 1/2 Barrel Draft Beer Cooler - Black, 1 Keg Capacity, 115 Volts
Calculate
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air DD24HC-1-B Specifications
| Number of Kegs | 1 Keg |
|---|---|
| Number of Taps | 1 Tap |
| Amps | 4 Amps |
| Installation Type | Built-In |
| Construction | Stainless and Galvanized Steel |
| Brand | Beverage Air |
| Refrigerant Type | R-290 |
| Number of Doors | 1 |
| Made in | USA |
| Type | Beer Dispensers |
| Certifications | cULus |
| Exterior Finish | Black |
| Door Type | Solid |
| Sections | 1 |
| Style | 1/2 Barrel |
| Voltage | 115 Volts |
| Width (in) | 24 |
| Height (in) | 53 |
| Depth (in) | 30.13 |
| Weight | 174.00 |
Additional Information on Beverage Air DD24HC-1-B

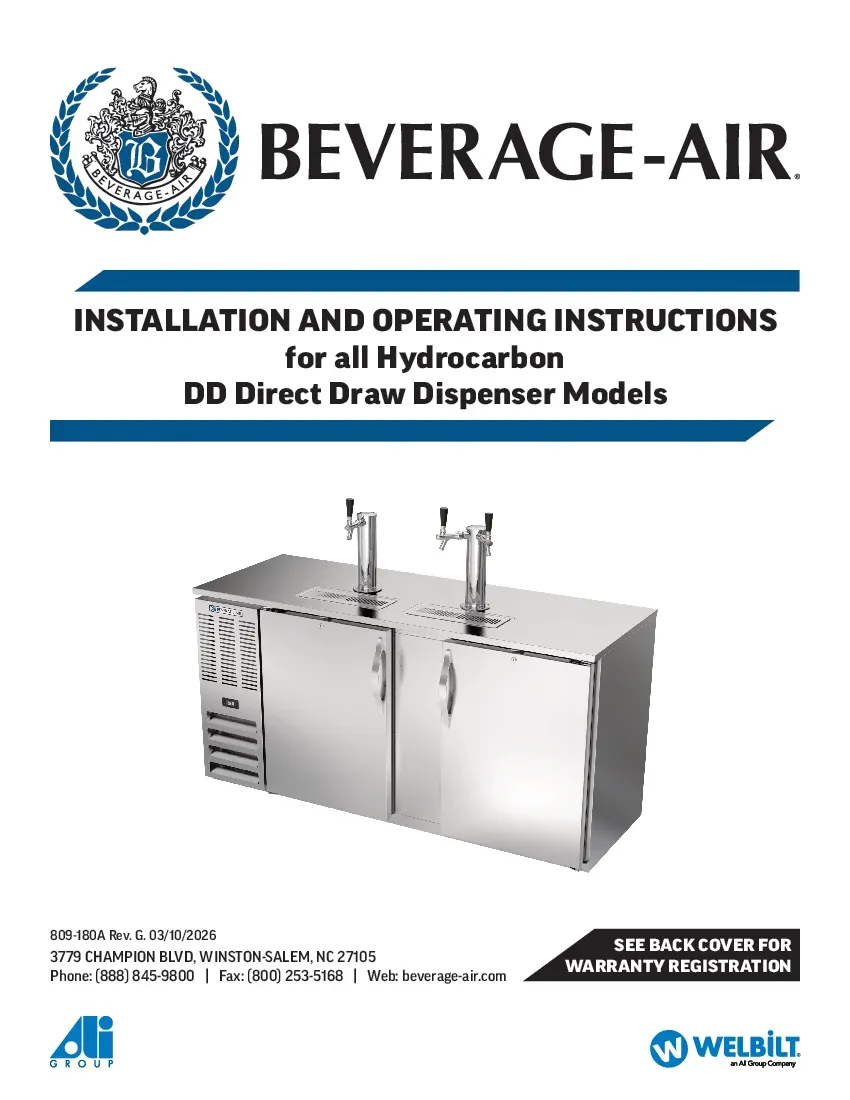

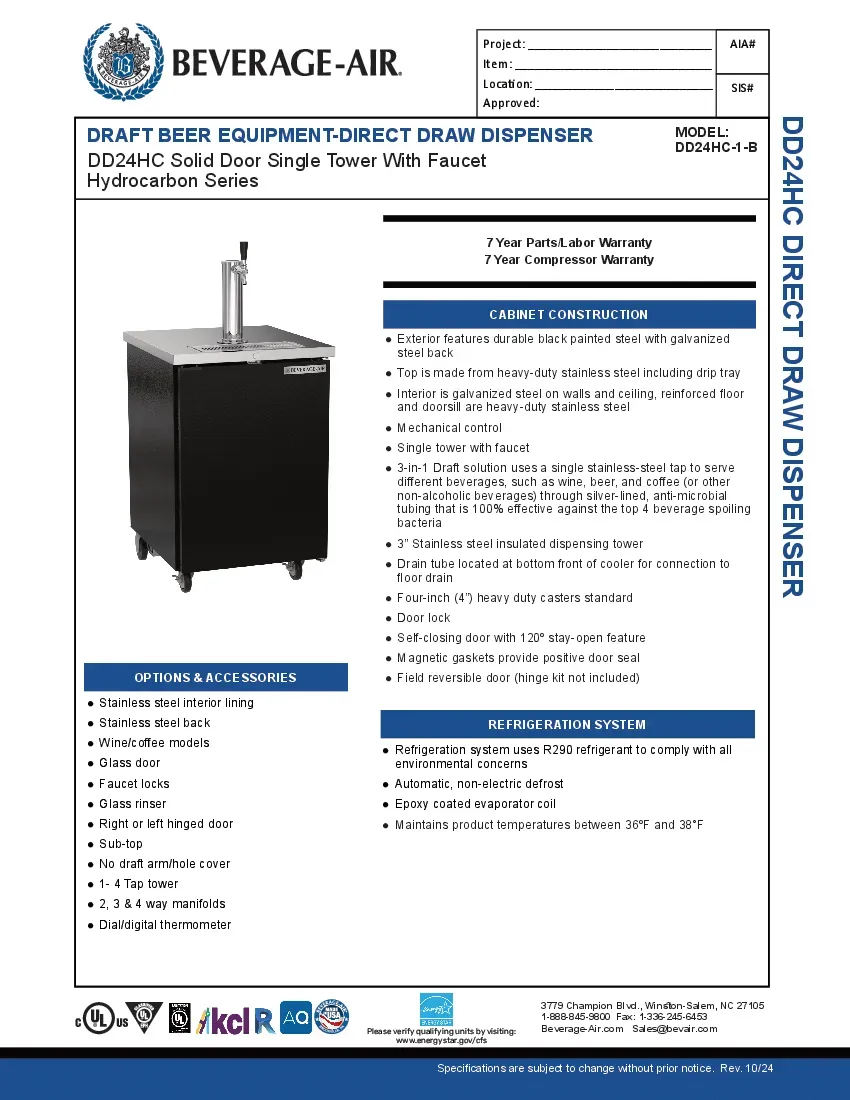

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air DD24HC-1-B Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air DD24HC-1-B Description
Does your business need a compact draft beer dispenser that can be easily moved? The DD24HC-1-B Draft Beer Cooler from Beverage Air comes on heavy-duty 4” casters making it convenient to move to where it’s needed. This unit offers 7.66 cu. ft. of cold storage and can hold a single ½ keg.
The interior features galvanized steel construction for the walls and ceiling and a reinforced stainless steel floor and door sill for durability. The door is self-closing to keep it from being left ajar and features a magnetic gasket for a positive seal. The keg stored inside is kept secure with a standard door lock. The heavy-duty stainless steel top provides a secure platform to serve beer. A built-in drip tray catches any spills and routes it down to a drain tube to connect to a floor drain. A 3” insulated dispensing tower made from stainless steel keeps beer cool and prevents foaming. This unit features a 3-in-1 draft solution that allows a single tap to serve different beverages like beer, coffee, and wine through silver-lined tubing. The silver is ant-microbial and 100% effective against the top 4 beverage spoiling bacteria.
The self-contained refrigeration system provides efficient cooling with its 1/6 HP compressor producing 1094 BTU/hr of heat rejection. The unit's epoxy-coated evaporator keeps the interior between 36ºF and 38ºF reliably with minimal maintenance while fully electronic controls keep power consumption and stress on the refrigeration system to a minimum. This unit defrosts automatically with a non-electric system to reduce downtime while maintaining peak efficiency. To meet all environmental regulations R290 hydrocarbon refrigerant is used.
An 8’ power cord is provided with a NEMA 5-15-P plug set to connect it to a standard outlet with 115/60/1-ph power at 2.0 amps.
Standard Features:
- Cabinet Construction
- Single draft arm
- Field reversible door
- Full electronic control
- Self-closing door with lock
- 3” Insulated dispensing tower(s)
- Four-inch (4”) heavy duty casters standard
- Magnetic gaskets provide positive door seal
- Top is made from heavy-duty stainless steel including drip tray
- Compressor available on left or right, specify at time of unit order
- Exterior is wear resistant vinyl on steel in black or stainless steel finish
- Drain tube located at bottom front of cooler or connection to floor drain
- Interior is galvanized steel on walls and ceiling, reinforced floor and doorsill are heavy duty stainless steel
- Refrigeration System
- Epoxy coated evaporator coil
- Automatic, non-electric evaporator
- Models feature forced air refrigeration to keep beer in kegs ice cold for dispensing
- Refrigeration system uses R290 refrigerant to comply with all environmental concerns
- Options & Accessories
- Wine taps
- Turbo taps
- Glass rinser
- Faucet locks
- Wine models
- 1-4 Tap tower
- Leg accessory kits
- 2, 3 & 4 way manifolds
- Dial/digital thermometer
- Club top models available
- Stainless steel interior available
NOTE! This is a general product line video and does not necessarily reflect the listed model.
