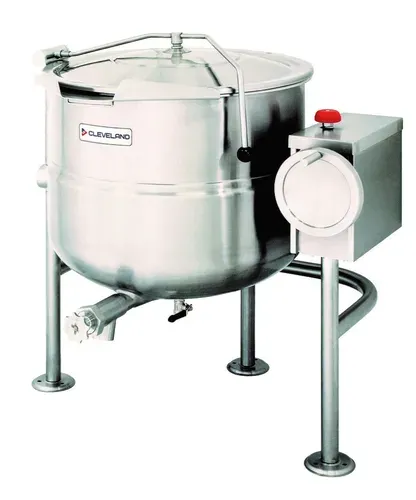

Cleveland Range KDL25T Kettle

Cleveland Range KDL25T Description

Kettle, direct steam, tilting, 25-gallon capacity, 2/3 steam jacket design, mounted on open tri-leg base, flanged feet, steam control valve, 50 psi rating, stainless steel exterior finish with 316 series stainless steel liner

• High Capacity Pouring Lip
• 50 psi Steam Jacket Rating
• 50 psi chrome plated Safety Valve
• Steam Control Valve mounted on console
• Typical approvals include NSF and ASME
• Condensate Drain Valve with insulated handle
• Type 304 Stainless Steel construction, with #4 finish on kettle and supports
• Tilting Mechanism with permanently lubricated, self-locking, Worm Drive of space saving design
• Kettle legs of 1 5⁄8˝ OD, type 304 Stainless Steel, with 3 level adjustable feet, with three-bolt flanges for floor bolting

• Pan Carrier
• Flow Diverter
• Food Strainer
• Lift-off Covers
• Drain Strainers
• Gallon Markings
• Measuring Strips
• Water Meter Stand
• Heat Deflector Shield
• Correctional Packages
• Automatic Water Meter
• Swing Funnels for drain
• Faucet Mounting Bracket
• 3" diameter Butterfly Valve
• Pre-Rinse Spray Head and Hose
• Cooking Baskets and Tri-Basket Supports
• Alternate Mounting Systems - Console Mounting
• Hot and cold, or cold only, Kettle Filler with 60" Hose
• Hot and Cold Water Faucet, comes with Swing Spout
• Type 316 Stainless Steel Kettle Liner for high acid food products
• Spring-assisted, hinged, rotatable, domed Stainless Steel Cover
• Automatic Water Cooling (AWC-1) requires Console Mounting Option
• Pressure Reducing Valve for regulating incoming steam pressure of over 45 psi
• Kettle Accessory Kit (KAK) includes: Clean-up Brush, 36˝ Kettle Paddle, 6˝ Kettle Whip, 36˝ Kettle Brush, Draw-off Brush and 24 oz. Ladle
• Steam Control Kit includes: Steam Trap, Condensate Strainer, Check Valve, nipples and fittings, factory assembled and mounted on kettle
