Garland/US Range Garland US Range E24-24G E24 Series Griddle
E24-24G

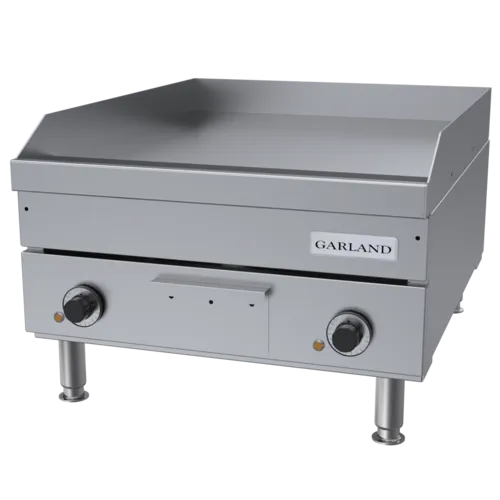

Garland US Range E24-24G E24 Series Griddle
- Please see specification sheet for installation clearance requirements
Description
E24 Series Griddle, electric, 24" W, countertop, 23-5/8" W x 24" D cooking surface, 3/4" thick smooth polished steel griddle plate, thermostatic controls, stainless steel front and sides, 4" legs, 8.0 kW (Garland)
Heavy duty electric griddles available in five (5) widths; 24" (610mm), 36" (914mm), 48" (1219mm), 60" (1524mm) and 72" (1829mm). High performance, high volume production with even, consistent, controlled temperatures. 3/4" (19mm) thick griddle plate complete with grease trough and splashguard. Optional grooved griddle tops in 12" (305mm) wide sections. All models are designed as freestanding units or bank with other E24 series equipment or with G24 series gas counter. Stainless steel front and sides. 100°F (35°C) to 450° F (235° C) hydraulic thermostats with pilot lights are provided for each 12" (305) width of griddle surface. Even frying temperatures are assured by specially designed pressure clamped tubular heat elements.
Standard Features:
- Recovery signal light
- 4" (102mm) Sanitary legs
- Stainless steel front and sides
- One-Year limited parts & labor warranty (USA & Canada only)
- 100°F (35°C) to450°F (235°C) hydraulic thermostat with indicator light per each 12" width of griddle
- Stainless steel back
- Grooved griddle plate, in 12" (305mm) sections
- 460 volt (for complete amperage draws contact factory)
- Note: Stands are available see form # CS24/CSD
Heavy duty electric griddles available in five (5) widths; 24" (610mm), 36" (914mm), 48" (1219mm), 60" (1524mm) and 72" (1829mm). High performance, high volume production with even, consistent, controlled temperatures. 3/4" (19mm) thick griddle plate complete with grease trough and splashguard. Optional grooved griddle tops in 12" (305mm) wide sections. All models are designed as freestanding units or bank with other E24 series equipment or with G24 series gas counter. Stainless steel front and sides. 100°F (35°C) to 450° F (235° C) hydraulic thermostats with pilot lights are provided for each 12" (305) width of griddle surface. Even frying temperatures are assured by specially designed pressure clamped tubular heat elements.
| Specifications | |
|---|---|
| Brand | Garland/US Range |
| Griddle Plate Finish | Smooth Steel |
| Control Type | Thermostatic |
| Exterior Finish | Stainless Steel |
| Controls | Thermostatic |
| Heat | Electric |
| Width (in) | 24 |
| Height (in) | 12.81 |
| Depth (in) | 29.25 |
| Weight | 200.00 |
