Garland US Range MST42-6S-E Master Sentry Series Heavy Duty Range
SKU#: MST42-6S-E
Free Freight?
Quick Ship
$7,757.00
Contact us for details
Calculate
Product Protection
Starting at
Attention!
Order by 10/15/2023 to save before the price increases!
Order by 10/15/2023 to save before the price increases!
- Please see specification sheet for installation clearance requirements
- Additional required flue riser sold separately
Garland US Range MST42-6S-E Specifications
| BTU | 35,000 BTU |
|---|---|
| Number of Burners | 1 - 2 |
| Total BTU | 16000 - 130000 |
| Burner Type | 35,000 BTU open burners |
| Installation Type | Freestanding |
| Burner Style | Hot top |
| Range Base Style | Storage Base |
| Brand | Garland/US Range |
| Certifications | CE |
| Exterior Finish | Stainless Steel Front & Sides |
| Base | Storage |
| Gas Type | LP |
| Heat | Gas |
| Number of Ovens | None |
| Range Configuration | Burners |
| Width (in) | 34 |
| Height (in) | 36.38 |
| Depth (in) | 38 |
| Weight | 420.00 |
Additional Information on Garland US Range MST42-6S-E
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Garland US Range MST42-6S-E Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

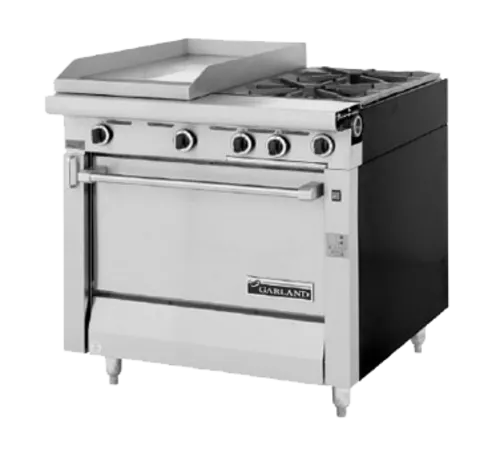

Garland US Range MST42-6S-E Description
Master Series Heavy Duty Range, gas, 34", (2) 35,000 BTU open burners, (1) 17" even heat hot top, storage base, electric ignition & flame fail all burners, stainless steel front & sides, 6" legs, 100,000 BTU, CE, CSA Flame, CSA Star, NSF (Garland)
With a pair of 35,000 BTU open burners, a 17" cast-iron even-heat hot top, and a storage base, this heavy-duty commercial gas range has all you need to significantly boost your production capacity. This commercial range is designed to be extra durable and easy to clean, with its stainless steel front and sides. The burners come with electric ignition and flame fail protection to make the operation safer. There is a 7.5" rail on the front so you can do quick prep work or plating. The cast-iron gates on the open burners are removable for easy cleaning.
This heavy-duty range is mounted on 6" chrome legs that can be set to various working heights to fit your space. This unit meets CSA Flame, CSA Star, and NSF standards.
Check out more top-quality restaurant and heavy-duty ranges and commercial cooking equipment only here at CKitchen!
This heavy-duty range is mounted on 6" chrome legs that can be set to various working heights to fit your space. This unit meets CSA Flame, CSA Star, and NSF standards.
Check out more top-quality restaurant and heavy-duty ranges and commercial cooking equipment only here at CKitchen!
Standard Features:
- Cast iron top grates
- Piezo Spark ignition for oven
- Stainless steel front and sides
- Fully porcelainized oven interior
- 6" (152mm) chrome steel adj. legs
- 7-1/2" (191mm) stainless steel front rail
- Stainless steel drip tray under open burners
- Sentry total flame failure protection for all burners
- Removable ring grates over each open top burner
- Electric Spark ignition on all pilots Suffix -E models
- Heavy gauge aluminized steel radiation baffle shield
- 40,000 BTU (11.72kW) natural gas, 35,000 BTU (10.25kW propane gas cast iron oven burner
- 17" (432mm) wide even heat plate on left, w/ one 27,000 BTU (7.90kW) "H" type burner controlled by Hi-lo valve
- Two (2), 2-piece Starfire open burners w/removable heads rated 30,000 BTU (8.78kW) CE approved or 35,000 BTU (10.25kW) CSA approved models, (natural or propane gas)
- Additional oven rack
- Stainless steel main back
- Gas regulator 3/4" or 1-1/4"
- Stainless steel oven interior
- End caps and cover (NC, specify)
- 6" (152mm) stainless steel adj. legs
- Celsius dial for oven thermostat (NC)
- Corner columns for banking - specify
- Dais base (not for use with "RC" oven)
- Gas shut off valve; 3/4", 1" or 1-1/4" NPT
- Rear gas connection, 3/4", 1" or 1-1/4" NPT
- Storage base shelf of aluminized or stainless steel
- Stainless steel tubular high shelf, single or double deck
- Convection oven base, add C to model #, e.g. M42-6RC
- Stainless steel backguard: 10" (354mm), 17" (432mm) or 33" (838mm)
- 230 volt, 50 cycle components, RC motor and/or electric ignition (export)
- Set of (4) Polyurethane non-marking swivel casters w/front brakes. casters w/ front brakes
- Stainless steel common front rail up to 102" (2591 mm) wide, (two or more units in a battery)
- Gas flex hose & quick disconnect (3/4", 1" or 1-1/4" NPT x 5') w/restraining device, please specify
Heavy-duty gas range with oven, Model MST42-6R, combination top. One 17" (432mm) wide even hot top, 27,000 BTU (7.90kW) on left and two 30,000 BTU (8.78kW) Starfire open burners. Sentry total flame failure protection for all burners Heavy duty cast iron top grates/ring grates 34" (864mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with 40,000 BTU (11.72kW) cast iron oven burner. Stainless steel front and sides. Natural or propane gas available. Also available with storage base w/ doors, suffix S, and modular top, suffix T. NOTE: Ranges supplied with casters must be installed with an approved restraining device.
