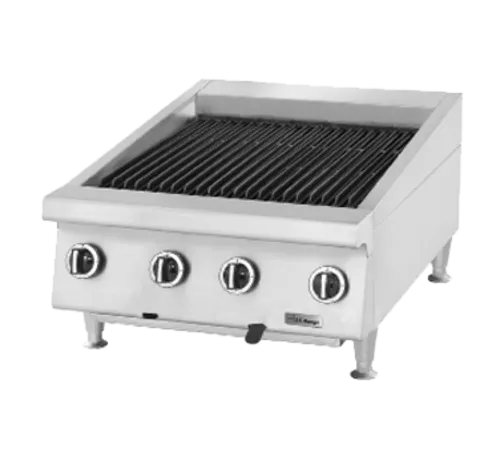

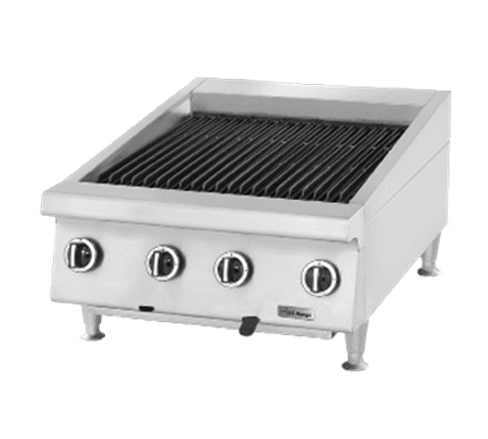

Garland/US Range Garland US Range UTBG72-NR72 Charbroiler
Garland US Range UTBG72-NR72 Charbroiler
- Free after installation performance check
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
- 4” SS adjustable legs
- SS front, sides and back
- SS large capacity crumb tray
- 21-1/2” (546mm) broiling grid depth
- One two position hi/lo valve control for each burner
- 2-position adjustable broiler grates or fixed-position nonadjustable grates
- SS front rail; 4” (102mm) deep overall with 3 1/2” (89mm) top work surface
- Reversible cast iron broiler racks in 3” wide sections with 1/8” and 3/16” brand marks.
- One cast iron radiant over a 18,000 BTU stainless steel burner for every 6” of broiler width
- 3/4” NPT gas regulator on all 24” to 60” wide models with “T” gas manifold connection for straight through rear or flush-mount gas connections
- 1” NPT gas regulator for GTBG72-NR72 model only. Has “T” gas manifold connection for straight through or nearly flush-mount gas connections
- SS spatter-guard
- Broiler grate cleaning tool
- Stainless stand with solid top and holding shelves, and adjustable feet
- Stainless stand with solid top and holding shelves, and casters, (locking front)
- Removable wire holding shelf for spatter guards available for 24” and 36” models
- Set of reversible cast iron broiler racks with 4 brand marks per 3” section. Brand 3/16” wide.
- SS skirt for dais/counter surface mounting. The stainless steel skirt will reduce overall unit height by 1 3/4” (44.45mm)
- Fajita broiling grate: 9” wide, replaces 3 standard grate sections on the left or right end of the broiler. Limit one per broiler
- Removable stainless steel attachment condiment rail with universal 1/9 or 1/3 food pan cut outs (pans supplied by others)
US Range gas radiant broilers are available with adjustable or non-adjustable cooking racks, in five nominal imperial widths from 24”(600mm) to 60”(1500mm) and with model UTBG72-NR72 only 72”(1800mm), 13” (330mm) high and 32” (814mm) deep. Reversible cast iron grates in 3” (76mm) wide sections overall cooking area depth 21 1/2” (546 mm). One 18,000 BTU burner with individual valve control per 6” of broiler width. Large stainless steel catch tray, stainless steel front, sides, and back.
