Glastender RDBA-18S Recessed Drainboard
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

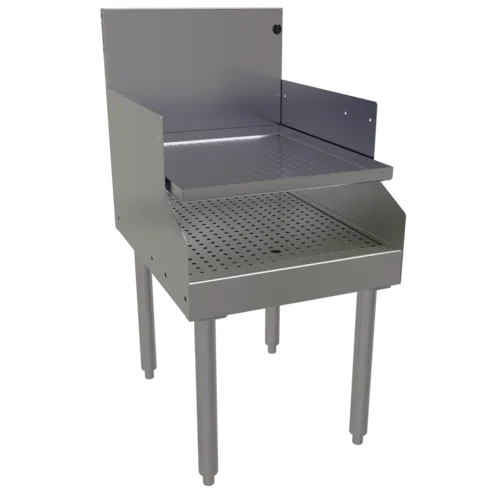

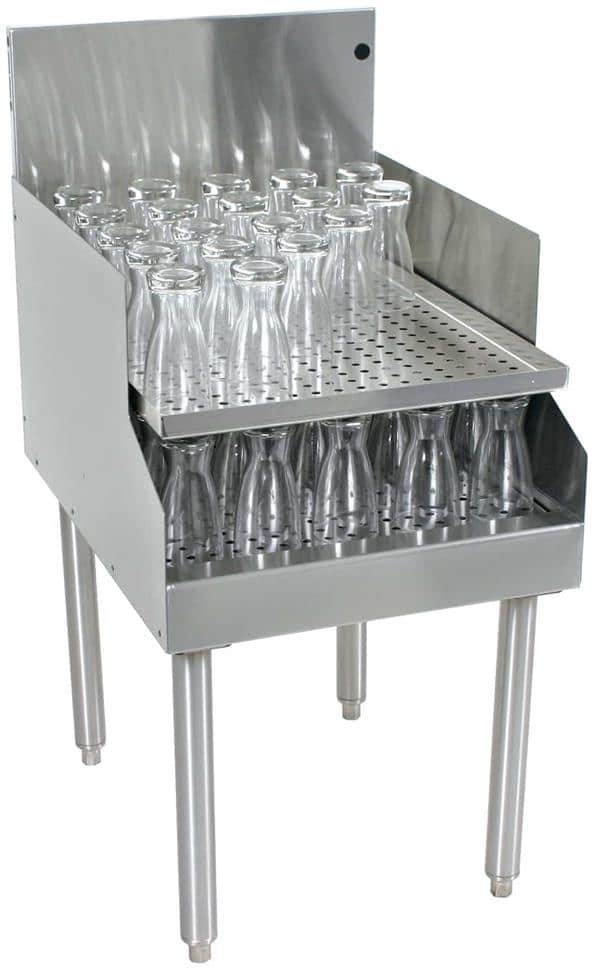

The Glastender RDBA-18S Recessed Drainboard is an underbar glassware storage unit designed to fit flush with 19” front-to-back Glastender underbar units equipped with a single speed rail mounted. This is the perfect place to put clean glasses and keep them ready for service.
This unit comes with two perforated stainless steel inserts. One insert is placed on top of the drainboard at the base of the unit and the other is placed on top of glassware to provide the second level of storage. The drain pan uses a 1-½” I.P.S. threaded drain to remove water.
The backsplash, drain pan, perforated inserts, and bottom of the unit are made from durable 20 gauge stainless steel. To support the weight of the glassware, the sides of this unit are made from thicker 18 gauge stainless steel. 16” long legs are included with this unit and are 1-⅝” in diameter and made from 16 gauge stainless steel. Keeping the unit level is simple with four adjustable bullet feet.
Overall, the unit is 37” in height (this includes the backsplash), 18” in width, and 24” front-to-back.
The Glastender RDBA-18S Recessed Drainboard is ETL-Sanitation certified.
- All stainless steel construction
- Adjustable stainless steel bullet feet
- Lift-out stainless steel perforated shelf for stacking glassware
- Exclusive design with drain pan and separate perforated insert for better air circulation
- One piece, seamless top and backsplash featuring 1/4″ radius corners for easy cleaning
- Specially designed side profiles to align with four different equipment mounting situations
The ETL Mark is proof of product compliance to North American safety standards.
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
