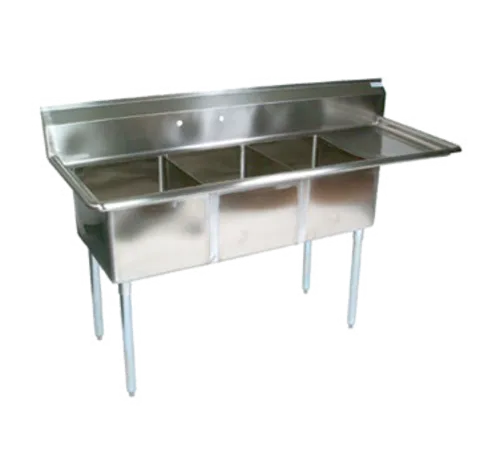

John Boos E3S8-18-12R18 Commercial Sink, (3) Three Compartment, 18 Gauge Stainless Steel Construction with Galvanized Steel Legs and With Right-hand Drainboard - 74.5" W

SKU#: E3S8-18-12R18
John Boos E3S8-18-12R18 Commercial Sink, (3) Three Compartment, 18 Gauge Stainless Steel Construction with Galvanized Steel Legs and With Right-hand Drainboard - 74.5" W
Free Freight?
Quick Ship
$3,028.00
$1,155.48
or enjoy small payments $24.83/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 3028

John Boos E3S8-18-12R18 Specifications

Leg ConstructionGalvanized Steel Legs
Drainboard TypesRight
ConstructionStainless and Galvanized Steel
BrandJohn Boos
Number of Drainboards1
CertificationsNSF
Number of Compartments3
DrainboardsWith Right-hand Drainboard
Gauge18 Gauge
MaterialStainless Steel
Width (in)74.5
Height (in)43.75
Depth (in)23.50
Weight88.00

Additional Information on John Boos E3S8-18-12R18

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

John Boos E3S8-18-12R18 Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

John Boos E3S8-18-12R18 Description

E-Series Sink, 3-compartment, 74-1/2"W x 23-1/2"D x 43-3/4"H overall size, (3) 18"W x 18" front-to-back x 12" deep compartments, (1) 18" right drainboard, 9-3/4"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" diameter die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation

Standard Features:
  • 18ga Stainless Steel
  • 1 1/8" Faucet Holes in Backsplash
  • 14" Deep Three Compartment Sink Bowls
  • Standard Stainless Steel Legs 1-5/8" Diameter
  • Type 300 Stainless Steel With #4 Polish, Satin Finish
  • All Corners, both Vertical and Horizontal, Coved at 3/4" Radius
  • All Outside Corners of Assembly are Bullnosed to Provide Safe, Clean, and Polished Edge
  • Full Length 9 3/4" High Boxed Backsplash, with 2" Return to Wall at 45 Degree & 1" Tile Edge
  • Bottoms of Commercial Sink Bowls Formed for Drainage to 3-1/2" Diameter Die Stamped Opening
  • Note: More Restaurant Equipment, Compartment Sinks & Underbar Sinks are available
Construction
  • Base: Galvanized Base
  • Top: Stainless Steel Sinks are TIG Welded, Exposed welds are Polished to Match Adjacent Surface
Material
  • Gussets: Galvanized Steel
  • Feet: 1" AdjustablePlastic Bullet Feet
  • Legs: 1-5/8" Round O.D. Galvanized Steel
  • Bowls & Top: 18ga Type 300 Stainless Steel with #4 Polish, Satin Finish
