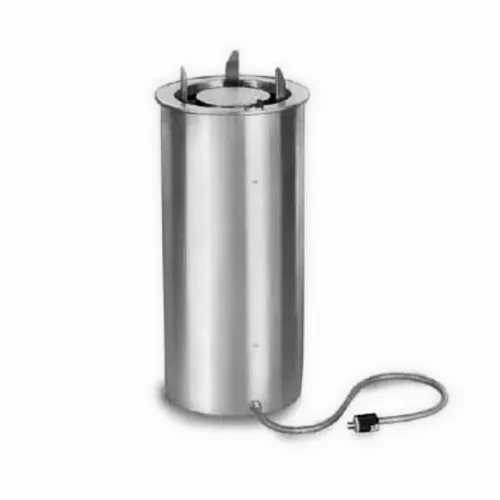

Lakeside Manufacturing 194425 Adjust-a-Fit® Heated Shielded Round Drop-In Dish Dispenser for 10" to 13 1/4" Dishes
SKU#: 194425
Free Freight?
Quick Ship
$1,941.50
Login or add to cart to see our price!
Calculate
Product Protection
Starting at
Lakeside Manufacturing 194425 Specifications
| Series | Adjust-a-Fit® |
|---|---|
| Brand | Lakeside Manufacturing |
| Made in | USA |
| Certifications | 5-15P |
| Type | Heated |
| Dish Diameter | for 10" to 13 1/4" Dishes |
| Shape | Round |
| Style | Shielded |
| Voltage | 120 Volts |
| Weight | 35.00 |
Additional Information on Lakeside Manufacturing 194425
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Lakeside Manufacturing 194425 Certifications
5-15P
Two-pole with ground pin plug
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
Lakeside Manufacturing 194425 Description
Adjust-a-Fit® Plate Dispenser, heated, enclosed drop-in style, maximum dish size approximately 13-1/4" diameter, stainless steel construction, 5' cord with NEMA L5-15P, NSF,NSF, UL (ADA compliant counter height), Made in USA
Adjust-a-Fit® Plate Dispenser, heated, enclosed drop-in style, maximum dish size approximately 13-1/4" diameter, stainless steel construction, 5' cord with NEMA L5-15P, NSF,NSF, UL (ADA compliant counter height), Made in USA
Standard Features:
Adjustable Diameter And Dispensing Height Adjustments Without Tools
- All models have a 22” plate stacking capacity
- Five tube sizes, each with a 3 ¼” diameter adjustment range.
- Overall height allows for fit into ADA height compliant counters.
- Heated dispensers feature thermostatic control. Thermostat minimum 100°F (38°C) - maximum 175°F (79°C).
Optional Accessories:
- Stainless steel dispenser covers
- 220 VAC 50 Hz (heated models)
- 208/240 VAC 60Hz (heated models)
Specifications:
Unit shall be of welded stainless steel construction. Dispensers shall hang from surface opening by an 18-gauge flange ring and feature three each 22-gauge vertical side supports welded to 20-gauge bottom plate. Overall height from flange ring to base of 25” shall allow for fit into ADA height-compliant counters. Self-leveling dish carriage shall be of welded stainless steel construction and shall travel vertically in dispenser tube with 3 sets of nylon roller guides for smooth operation. Carriage shall have 22-gauge removable dish platform. Unit shall feature flange mounted perimeter extension springs, which are detachable from the dish carriage to provide adjustment without tools for different weight dishes. Unit shall also feature three stainless steel dish guides running the entire height of the dispenser. Dish guides shall pivot to provide diameter adjustability of 3-1/4” (83 mm) without tools or removing components to accommodate various diameter dishes. Unit shall have a vertical plate stacking capacity of 22” (559 mm). Unit shall be NSF listed.
Heated Models Only: Unit shall be 120 VAC 60 Hz and shall have 5´ (1524 mm) power supply cable with L15-5P NEMA twist lock plug for 120 VAC. Dispenser tubes shall be fully enclosed in 22 gauge stainless steel, and have a circular bottom mounted 300 or 450 watt heater element to provide convection heat. Heating system shall feature thermostatic control in a tamper protective location with safe high-end shut off. Control shall have infinite settings between low and high temperature cut-outs. Thermostat shall be field adjustable for average interior air temperature between 100° F (38° C) and 175° F (79° C) at middle adjustable thermostatic setting. On-off switch and power indicator light shall be mounted on top flange of dispenser. Average dish temperature rise of 40° F (22° C) above ambient shall be achieved within one hour of initial heating cycle at middle adjustable thermostatic setting. Unit shall be UL listed.
