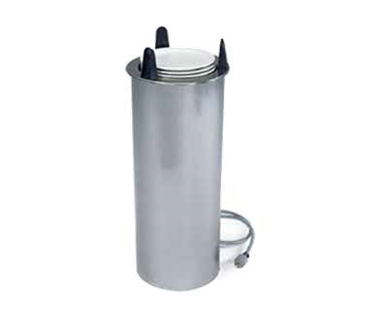

Lakeside Manufacturing Manufacturing 6007 Dish Dispenser

6007
Made in USA
Lakeside Manufacturing Manufacturing 6007 Dish Dispenser
Free Freight
Retail Price $842
Price $795


PayPal CREDIT
  • There is a $375 min. order requirement from this manufacturer
Specs
BrandLakeside Manufacturing
Made inUSA
TypeHeated
Cutout Diameter9 3/4 Inches
Diameter10 1/2 Inches
Dish Diameter6.6 - 7.3 Inches
ShapeRound
StyleShielded
Voltage120 Volts
Wattage450 Watts
Weight21.00
You May Also Need


Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Description
Dish Dispenser, heated, tubular drop-in style, single self-leveling dish dispensing tube, Easy-Glideā„¢ design, maximum dish size 7-1/4" diameter, stainless steel construction, 5' cord with NEMA L5-15P, NSF, UL listed
Standard Features:
Dispensing level is easily adjusted by attaching or detaching springs. No tools required.
  • Benefits
    • Reduces breakage
    • Plates are concealed from view
  • Features
    • 26" high stack capacity
    • Open Shielded and heated versions available
    • Dispensing height is easily field adjustable without tools
    • Accommodate plates from 5" to 12 ¼" in 9 dispenser sizes
    • Heated models feature thermostatic control, 100°F - 180°F (38°C - 82°C)
Options:
  • 220 VAC 50 Hz (heated models)
  • 208/240 VAC 60 Hz (heated models)
  • Stainless steel dispenser tube covers
Specifications:
Unit shall be of welded stainless steel construction. Dispensers shall hang from surface opening by an 18- gauge flange ring and feature three each 22-gauge vertical side supports welded to 20-gauge bottom plate. Self-leveling dish carriage shall be of welded stainless steel construction and shall travel vertically in dispenser tube with nylon guides for smooth operation. Carriage shall have 22-gauge removable dish platform. Unit shall feature flange mounted perimeter extension springs, which are detachable from the dish carriage to provide adjustment without tools for different weight dishes. Unit shall have a vertical stacking capacity of 25” (635 mm). Unit shall be NSF listed.
Heated Models Only: Unit shall be 120 VAC 60 Hz and shall have 5´ (1524 mm) power supply cable with L5- 15P NEMA twist lock plug for 120 VAC. Dispenser tubes shall be fully enclosed in 22-gauge stainless steel, and have a circular bottom mounted 300 or 450 watt heater element to provide convection heat. Heating system shall feature thermostatic control in a tamper protective location with safe high-end shut-off. Control shall have Infinite settings between low and high temperature cut-outs. Thermostat shall be field adjustable for average interior air temperature between 100° F (38° C) and 175° F (79° C) at middle adjustable thermostatic setting. On-off switch and power indicator light shall be mounted on top flange of dispenser. Average dish temperature rise of 40° F (22° C) above ambient shall be achieved within one hour of initial heating cycle at middle adjustable thermostatic setting. Unit shall be UL listed.
Options
Voltages
