Lakeside Manufacturing Manufacturing 600725 Dish Dispenser
You May Also Need
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

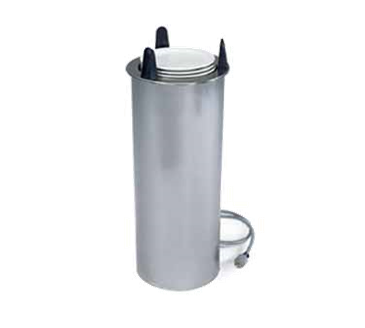

Dish Dispenser, heated, tubular drop-in style, single self-leveling dish dispensing tube, Easy-Glide™ design, maximum dish size 7-1/4" diameter, stainless steel construction, 5' cord with NEMA L5-15P, NSF, UL listed (ADA compliant counter height)
Dispensing level is easily adjusted by attaching or detaching springs. No tools required.
- High-strength stainless steel uprights.
- All models have a 22” stacking capacity.
- Models available to fit plates from 5” to 12 1/4”.
- Easy-Glide™ design provides quiet, non-stick operation.
- Overall height allows for fit into ADA height compliant counters.
- Heated dispensers feature thermostatic control. Thermostat minimum 100°F (38°C) - maximum 180°F (82°C).
- 220 VAC 50 Hz (heated models)
- 208/240 VAC 60Hz (heated models)
- Stainless steel dispenser tube covers
Unit shall be of welded stainless steel construction. Dispensers shall hang from surface opening by an 18-gauge flange ring and feature three each 22-gauge vertical side supports welded to 20-gauge bottom plate. Overall height from flange ring to base of 25” shall allow for fit into ADA height-compliant counters.Self-leveling dish carriage shall be of welded stainless steel construction and shall travel vertically in dispenser tube with nylon guides for smooth operation. Carriage shall have 22-gauge removable dish platform. Unit shall feature flange mounted perimeter extension springs, which are detachable from the dish carriage to provide adjustment without tools for different weight dishes. Unit shall have a vertical stacking capacity of 22". Unit shall be NSF listed.
Heated Models Only: Unit shall be 120 VAC 60 Hz and shall have 5´ power supply cable with L15-5P NEMA twist lock plug for 120 VAC. Dispenser tubes shall be fully enclosed in 22-gauge stainless steel, and have a circular bottom mounted 300 or 450 watt heater element to provide convection heat. Heating system shall feature thermostatic control in a tamper protective location with safe high-end shut-off. Control shall have Infinite settings between low and high temperature cut-outs. Thermostat shall be field adjustable for average interior air temperature between 100° F (38° C) and 175° F (79° C) at middle adjustable thermostatic setting. On-off switch and power indicator light shall be mounted on top flange of dispenser. Average dish temperature rise of 40° F (22° C) above ambient shall be achieved within one hour of initial heating cycle at middle adjustable thermostatic setting. Unit shall be UL listed.
