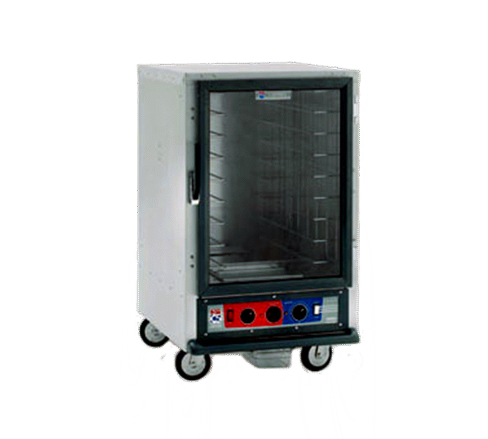

Metro C515-PFC-U C5™ 1 Series Proofing Cabinet
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
- Reliability: Reliability and durability are designed into every C5. High quality components provide a long life of worry-free use.
- Performance: All modules provide fast heat-up and recovery through a thermostatically controlled, forced air heating system.
- Doors: Clear polycarbonate doors provide visibility of the contents of the cabinet without the heat loss associated with opening the door.
- Removable Module: All modules are removable, without tools, for easy cleaning of the cabinet interior. Future module upgrades or changes can occur without cabinet body replacement.
- Control: Three holding modules are available. All feature an easy-to-read digital thermometer, recessed control dials, a master on/off switch, and power indicator lights.
- Proofing Module: For proofing applications only. Individual analog controls for temperature and humidity levels.
- Holding Module: For heated holding applications. Analog temperature control and a passive humidity generation system.
- Combination Module: At the flip of a switch change from heated holding mode to proofing mode. Individual analog controls for temperature and humidity levels.
- Travel Latch (C5-TRVL)
- 6" Casters (C5-6CASTER)
- Small Item Shelf (C5-SHELF-S)
- Rear Push Handle (C5-RHANDLE)
- Stainless Steel Legs (C5-SSLEGS)
- Factory Left-Hand Hinging (DD3768)
- Rear Rigid Casters (C5-5RDGCSTR)
- Perimeter Bumper (C5-PERMBUMP-1)
- Flush Door Latch (C5-LATCHFLUSH-1)
- Stainless Steel Universal Slides (please call)
- Straight Plug, 20 Amp, 120V (C5-STRPLG-20)
- Straight Plug, 15 Amp, 120V (C5-STRPLG-15)
- Universal Slide Pair, Chrome (C5-USLIDEPR-C)
- Drip Trough: Smooth polymer drip trough with catch pan.
- Gaskets: High temperature, door mounted, Santoprene gaskets.
- Latches: Polymer, high-strength, magnetic pull latch with leveraction release.
- Hinges: Field reversible, double hinged, 180° swing, with longlife nylon bearings.
- Clear Doors: Extruded aluminum powder coated frame with .090" (2.3mm) polycarbonate window.
- Casters: Four casters with 5" (127mm) donut neoprene wheel, double ball bearing swivel, ball bearing axel, nickel plated, two with brake.
- Holding Modules: Removable without tools, digital thermometer, recessed control dials, master on/off switch, “Power On” light, water pan and ball bearing blower forced air system.
Two-pole with ground pin plug
UL (Underwriters Laboratories) approval for the US and Canada
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
