Metro C517-PFC-4A C5™ 1 Series Proofing Cabinet

Made in USA
Metro C517-PFC-4A C5™ 1 Series Proofing Cabinet
Regularly Stocked
Free Freight
Price $1,899

You will earn 1,899 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $47.63/mo.

Request a Quote

Made inUSA
Width (in)25.13
Height (in)57.75
Depth (in)30.25
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

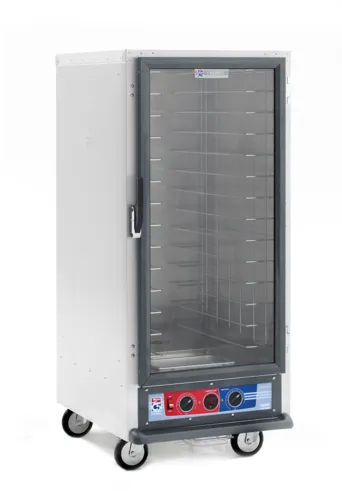

C5™ 1 Series Proofing Cabinet, mobile, 3/4 height, non-insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 120°F, fixed wire slides on 3" centers (14) 18" x 26" or (26) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF

Standard Features:
  • Reliability: Reliability and durability are designed into every C5. High quality components provide a long life of worry-free use.
  • Performance: All modules provide fast heat-up and recovery through a thermostatically controlled, forced air heating system.
  • Doors: Clear polycarbonate doors provide visibility of the contents of the cabinet without the heat loss associated with opening the door.
  • Removable Module: All modules are removable, without tools, for easy cleaning of the cabinet interior. Future module upgrades or changes can occur without cabinet body replacement.
  • Control: Three holding modules are available. All feature an easy-to-read digital thermometer, recessed control dials, a master on/off switch, and power indicator lights.
    • Proofing Module: For proofing applications only. Individual analog controls for temperature and humidity levels.
    • Holding Module: For heated holding applications. Analog temperature control and a passive humidity generation system.
    • Combination Module: At the flip of a switch change from heated holding mode to proofing mode. Individual analog controls for temperature and humidity levels.
  • Travel Latch (C5-TRVL)
  • 6" Casters (C5-6CASTER)
  • Small Item Shelf (C5-SHELF-S)
  • Rear Push Handle (C5-RHANDLE)
  • Stainless Steel Legs (C5-SSLEGS)
  • Factory Left-Hand Hinging (DD3768)
  • Rear Rigid Casters (C5-5RDGCSTR)
  • Perimeter Bumper (C5-PERMBUMP-1)
  • Flush Door Latch (C5-LATCHFLUSH-1)
  • Stainless Steel Universal Slides (please call)
  • Straight Plug, 20 Amp, 120V (C5-STRPLG-20)
  • Straight Plug, 15 Amp, 120V (C5-STRPLG-15)
  • Universal Slide Pair, Chrome (C5-USLIDEPR-C)
  • Drip Trough: Smooth polymer drip trough with catch pan.
  • Gaskets: High temperature, door mounted, Santoprene gaskets.
  • Latches: Polymer, high-strength, magnetic pull latch with leveraction release.
  • Hinges: Field reversible, double hinged, 180° swing, with longlife nylon bearings.
  • Clear Doors: Extruded aluminum powder coated frame with .090" (2.3mm) polycarbonate window.
  • Casters: Four casters with 5" (127mm) donut neoprene wheel, double ball bearing swivel, ball bearing axel, nickel plated, two with brake.
  • Holding Modules: Removable without tools, digital thermometer, recessed control dials, master on/off switch, “Power On” light, water pan and ball bearing blower forced air system.
Hinging options
Plug options
Latch options in lieu of standard
Casters & legs
