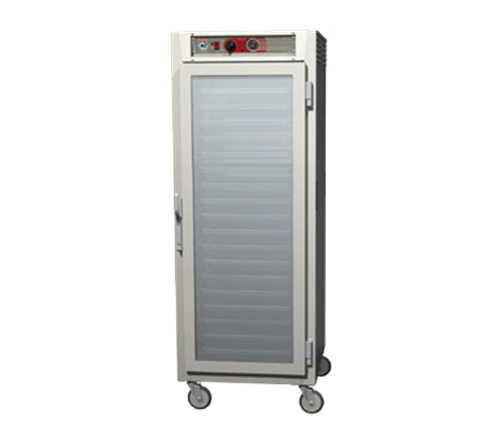

Metro C569-SFC-LPFC C5™ 6 Series Clear Door Mobile Pass-Thru Heated Holding Cabinet, 120 Volts

Metro C569-SFC-LPFC C5™ 6 Series Clear Door Mobile Pass-Thru Heated Holding Cabinet, 120 Volts

C569-SFC-LPFC
Made in USA
Stock Status
Updating. Please wait...
Free Freight
$7,821.00

Contact us for your price

Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET

Why don't we show the price for this item?

$7,532.00

Contact us for your price

Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET

Why don't we show the price for this item?

You will earn 7821 Reward Points.

Product Protection
Coverage starting at
FINANCE

Monthly Payment *

Finance Payment Calculator
$161.86
* The above amount may vary depending on the applicant's credit history.

Metro C569-SFC-LPFC Specifications

SeriesC5в„ў 6 Series
Door SizeFull Height
SizeFull Height
TypeHolding Cabinets
Cabinet TypeHolding cabinets
Product LineMetro C5™ 6 Series
ConstructionStainless Steel
Interior ConstructionUniversal Slides
InsulatedYes
BrandMetro
Made inUSA
Certifications5-20P
Control TypeThermostatic
Door TypeClear
Sections1
StylePass-Thru
Voltage120 Volts
Width (in)29.13
Height (in)74.75
Depth (in)32.63
Weight390.00

Additional Information on Metro C569-SFC-LPFC

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Metro C569-SFC-LPFC Certifications

5-20P

5-20P

Plug has the neutral blade rotated 90° and shifted so its inner edge is approximately 1⁄2 in (12.7 mm) from the hot blade

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Metro C569-SFC-LPFC Description

C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated, double pane tempered glass doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, lip load (35) 18" x 26" pan capacity, 1-1/2" wire slides, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 2000 watts, 16 amps, NEMA 5-20P, cULus, NSF
C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated, double pane tempered glass doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, lip load (36) 18" x 26" pan capacity, 3" OC, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

Standard Features:
  • Performance: Rapid heat-up and recovery times are achieved with a thermostatically controlled ducted heating system.
  • Passive Humidity: An integral water pan system can be used to add humidity to the cabinet environment, improving food quality.
  • Top-Mounted Controls: Ergonomic user-friendly controls are mounted at the top of the cabinet for easier access, better readability, to prevent damage, and to simplify cleaning.
  • Reliability: Reliability and durability are designed into C5 from the ground up. High-quality components and robust construction provide a long life of service and worry-free use.
  • ENERGY STAR: Full Height, 3/4 Height, and 1/2 Height Stainless Steel reach-in models with solid doors, and 1 /2 Height Stainless Steel reach-in models with clear doors are ENERGY STAR rated.
  • Control: The 6 Series provides control of temperature for safe and hot food. Temperature is displayed on an “always-on” analog thermometer for continuous monitoring of the cabinet temperature, even when turned off or unplugged.
  • Configurations:
    • Materials: Stainless Steel and Aluminum.
    • Sizes: Full Height, 3 /4 Height, 1 /2 Height, and Under Counter.
    • Reach-In or Pass-Thru (not available on under counter and 3 /4 height).
    • Doors: Full Length Solid, Full Length Clear, Dutch Solid, Dutch Clear. All are lift off and field reversible.
  • 6 Series Controller:
    • Temperature: The easy-to-use dial puts you in control of cabinet temperature.
    • Analog Thermometer: An “always-on” thermometer makes it ideal for transport applications.
    • Reliable Readout: Measures and displays actual cabinet temperature even when the cabinet is off.
Options/Accessories
  • 6" Casters (C5-6CASTER)
  • Small Item Shelf (C5-SHELF-S)
  • Rear Push Handle (C5-HANDLE)
  • Control Panel Cover (C5-COVER)
  • Factory Left Hand Hinging (DD3768)
  • Flush Door Latch (C5-LATCHFLUSH)
  • 6" Stainless Steel Legs (C5-SSLEGS)
  • 5" Rear Rigid Casters (C5-5RDGCSTR)
  • Bumper & Drip Trough (C5-BUMPDRIP)
  • Full Perimeter Bumper (C5-PERMBUMP)
  • Key Locking Door Latch (C5-LATCHLOCK)
  • Twist Locking Door Latch (C5-LATCHTWST)
  • Straight Plug, 20 Amp, 120V (C5-STRPLG-20)
  • Straight Plug, 15 Amp, 120V (C5-STRPLG-15)
  • Universal Slide Pair, Chrome (C5-USLIDEPR-C)
  • Twist Lock Plug, 20 Amp, 120V (C5-RTWSTPLG
  • Universal Slide Pair, Stainless (C5-USLIDEPR-S)
  • Twist Lock Plug, 15 Amp, 120V (C5-RTWSTPLG-15)
  • Factory Same-Side Pass-thru Door Hinging (C5-SAMESIDE)
  • Stainless Steel Universal Slide Upgrades
    • 3/4 Height (C5-USLIDE-7S)
    • 1/2 Height (C5-USLIDE-5S)
    • Full Height (C5-USLIDE-9S)
    • Under Counter (C5-USLIDE-3S)
Specifications
  • Handles: Four built-in polymer handles.
  • Thermal Performance: 200° F maximum temperature.
  • Insulation: Full perimeter, 2.5" thick, high-density fiberglass.
  • Gaskets: High temperature, cabinet mounted, Santoprene gaskets.
  • Hinges: Self-closing, lift-off, double hinged, with long-life nylon bearings.
  • Latches: Chrome plated, high-strength magnetic pull latch with lever-action release.
  • Display and Controls: Analog cabinet thermometer with independent thermostat control knob.
  • Heat Generation System: Thermostatically controlled 1950 Watt heating element, ball bearing blower motor, and ducted air system.
  • Cabinet Material: Type 304 stainless steel; 20-gauge polished exterior; 22-gauge interior, or .063” aluminum, brushed exterior, natural interior.
  • Doors: Solid doors are fully insulated, double-panel construction and Clear doors are double-pane, tempered glass. Argon filled with Low-E coating.
  • Casters: Four casters with 5" donut neoprene wheel, double ball bearing swivel, ball bearing axle, nickel plated, two with brake. 3" rubber casters on Under Counter models.

Options for Metro C569-SFC-LPFC

Notes
What is included
  • Warranty: 1 year warranty against manufacturing defects
