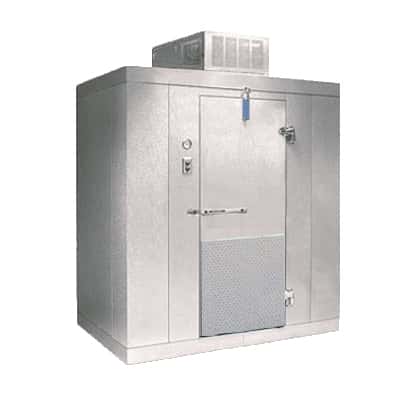

Nor-Lake KLB77610-C Walk-In Cooler & Top Mounted Compressor

(2)
KLB77610-C
Made in USA
Stock Status
Updating. Please wait...
Free Freight
$15,162.00

for more information

$10,222.65

You will earn 15162 Reward Points.

Product Protection
Coverage starting at
FINANCE

Monthly Payment *

Finance Payment Calculator
$219.68
* The above amount may vary depending on the applicant's credit history.
  • 2023 model, meets the newest EPA and DOE codes.
  • A refrigeration Technician is not required.
  • Our Exclusive FREE extras:
  • Stainless Steel 30'' x 36'' door kick-plate
  • Standard features
  • Full 4” thick panels foamed-in-place with HFC-245fa polyurethane insulation which is CFC and HCFC free
  • Free electronic controls and digital thermometer
  • Note! Refrigeration systems weigh 175lbs to 350lbs. and may require a hoist. The electrical hook-up may require a licensed electrician.

Nor-Lake KLB77610-C Specifications

Nominal Depth10 Feet
Nominal Width6 Feet
BrandNor-Lake
Refrigerant TypeR-290
Refrigeration MountedTop
Made inUSA
ShippingQuick Ship Model
CategoryWalk In Cooler, Modular, Self-Contained
Compressor LocationTop Mounted
With FloorFloor Included
UsageIndoor
Voltage115 Volts
Width (in)72
Height (in)91
Depth (in)120
Weight1483.00

Nor-Lake KLB77610-C Description

Kold Locker™, Indoor +35°F Cooler, 6' x 10' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, self-closing door, locking deadbolt handle, CPB075PC-S-0, R290 Capsule Pak Refrigeration, 115v/60/1-ph

The NorLake KLB77610-C 6' x 10' x 7'-7" H Kold Locker is a dependable indoor walk-in unit that can quickly expand your business’ refrigerated storage capacity. In total, this walk-in cooler offers 344 cu. ft. of refrigerated space.

The interior and exterior sides of the 4" panels that make up this walk-in coolers with top mounted compressor are made from 26 gauge steel finished with a corrosion-resistant embossed stucco coating. The space between the steel panels is filled with foamed-in-place polyurethane insulation with an R-Value of 25. For ease-of-installation, each panel has male and female rails that come together to ensure proper alignment. To maintain an air-tight seal between each panel foamed-in-place cam locking fasteners are used. A continuous panel gasket wraps around outer perimeter free from breaks or cuts at the corners

Each ceiling and floor panel has foamed-in-place edge caps that can’t come loose compared to those that are overlapped or mechanically fastened. The stock door that comes with this walk-in unit is 26” wide and features a stepped profile design to provide a barrier to airflow. The standard door kit can be replaced with the optional 30” wide door kit with stainless steel kick plate with no additional cost. Two cam-lift hinges are included with the door and can be installed on the right or left. These hinges are field-adjustable to make sure the door swings freely while providing an airtight seal. A spring-assisted door closer is included to keep the door from being left ajar.

The 4-foot wide door panel comes with the door pre-hung and includes a vapor-proof LED lighting fixture activated by a switch connected to an external indicator light, replaceable heating wire, stainless steel trim, and a digital thermometer. To keep items inside secure, an NL 9800 deadbolt handle is included with an independent key/padlock feature. To prevent lock-ins there is a safety release inside.

To keep items inside between 35°F and 38°F this walk-in features the RCPB050JC-S-0-EV Capsule Pak Refrigeration system that produces 4060 BTU/hr. The Enviro-Control™ electronic controller system sets the temperature inside the walk-in and also sets the automatic defrost timer. To remove the need for a drain line, an automatic condensate vaporizer is shipped loose with the unit and needs to be field wired.

Nor-Lake KLB77610-C Walk-In Cooler & Top Mounted Compressor

Kold Locker *Walk-In Coolers with Top Mounted Compressor*
Standard Features:
  • STANDARD MODELS SHIP THE SAME DAY
  • DOE compliant
  • USDA accepted
  • Magnetic gasket
  • 15 year panel warranty
  • Cooler or freezer models
  • Indoor or outdoor models
  • 26" wide, self-closing door
  • CN UL flame spread listed
  • Perimeter door heater wire
  • Floor double sweep gasket
  • Spring actuated door closer
  • Sizes from 4' x 6' to 10' x 14'
  • Two temperatures: +35°F, -10°F
  • 18 months parts & labor warranty
  • Digital thermometer and light switch
  • Heavy duty adjustable cam-lift hinges
  • Three heights: 6'7" & 7'7" with floor; 7'4" floorless
  • Air-cooled condensing unit (wall mount - 10 day ship)
  • Smooth aluminum interior floor (on models with floor)
  • Floorless models supplied with NSF listed vinyl sealers
  • Oregon State listed, City of Houston listed & California State listed
  • Automatic condensate vaporizer. No drain line required on indoor units
  • Capsule Pak™ refrigeration system (ceiling or wall mount) (ordered separately)
  • Full 4" thick panels foamed-in-place with EPA-compliant polyurethane insulation
  • Deadbolt locking handle with independent key/padlock feature and inside safety release
  • Time clock or electronic control provided for automatic defrost on both coolers and freezers
  • 26 gauge corrosion resistant stucco embossed coated steel on all surfaces except interior floor
  • NSF, UL flame spread 25 or less on all foam cores; UL and CSA electrical listing on door sections
  • UL, C-UL listing on complete Capsule Pak™ refrigeration systems (see page 11 for listed components)
  • High output low profile LED light positioned above the door to prevent interference with shelving or product
Indoor Models
  • Hot gas condensate vaporizer available on many models
Outdoor Models
  • Refrigeration hood
  • -20°F ambient controls
  • White membrane roof and trim
Optional Features
  • Exterior ramp
  • Electric vaporizer
  • Floor tread plate kit
  • U-shaped shelving system
  • Door hood (outdoor models)
  • Five year compressor warranty
  • Condensing unit air deflector kit
  • Heights: 8'7" with floor, 8'4" without floor
  • Leak detector/alarm (may be a requirement in some areas)
  • Heater kit for outdoor use where ambient conditions may go below 32°F
  • Note: (Most options are available two weeks from receipt of order. Please contact us for specific questions)

Options for Nor-Lake KLB77610-C

Door width
Celsius thermometer, lights & trim
Door ramp & non-skid strips
Flat freight program
Lift gate delivery
NOTE:
Capsule Pak refrigeration
What is included
  • Temperature NOTE:: NOTE: Coolers are designed for +35 degree room temperature with 90 degree ambient and 100 degree temperature at condensing unit. Less floor coolers assumed no insulation under floor slab.
  • Install note: NOTE: A licensed electrician and refrigeration installer may be required to make all necessary refrigeration and electrical connections
  • Panel warranty: 15 year original equipment panel warranty
  • Manufacturer Note: Pricing is valid for 60 days upon receipt of purchase order AND approved drawing (if applicable). Order must ship per our current standard lead time or pricing will be subject to change. All shipments will be FOB Hudson, WI or New Albany, MS.
  • Capsule Pak NOTE:: Capsule Pak™ refrigeration is sized for holding duty only. If the ambient is higher than 100 degrees F or pull down capacity is required, a regular (non-Quick Ship) quote will be needed.
  • Compressor warranty: 18 Month Labor/Service and original equipment parts warranty
Door hinging
