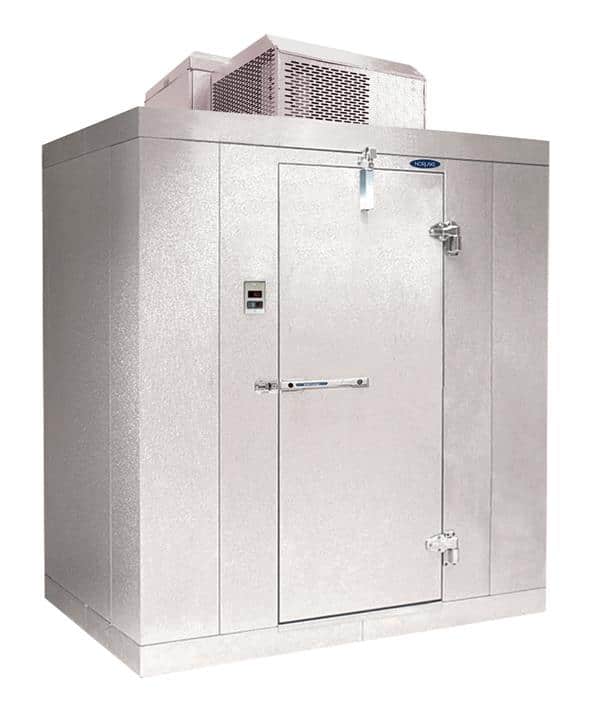

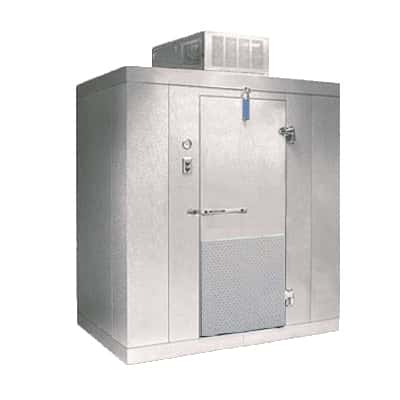

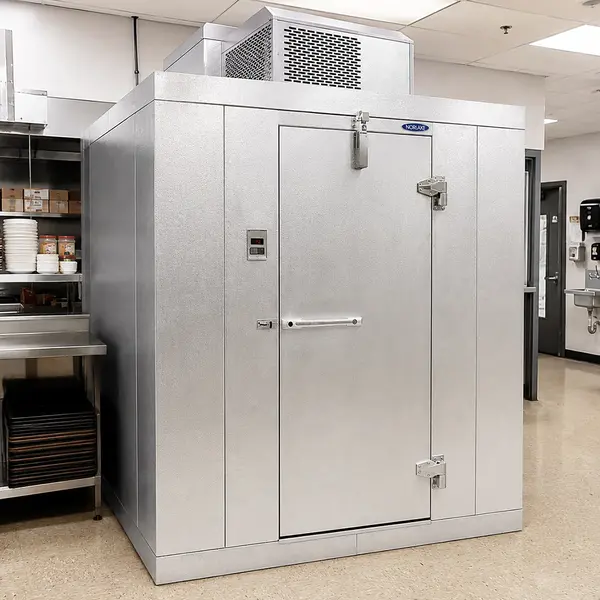

Nor-Lake KLB7468-C Walk-In Cooler & Top Mounted Compressor

(2)
KLB7468-C
Made in USA
Stock Status
Updating. Please wait...
Free Freight
$12,853.05

for more information

$8,665.89

You will earn 12853 Reward Points.

Product Protection
Coverage starting at
FINANCE

Monthly Payment *

Finance Payment Calculator
$186.23
* The above amount may vary depending on the applicant's credit history.
  • 2023 model, meets the newest EPA and DOE codes.
  • A refrigeration Technician is not required.
  • Our Exclusive FREE extras:
  • Stainless Steel 30'' x 36'' door kick-plate
  • Standard features
  • Full 4” thick panels foamed-in-place with HFC-245fa polyurethane insulation which is CFC and HCFC free
  • Free electronic controls and digital thermometer
  • Note! Refrigeration systems weigh 175lbs to 350lbs. and may require a hoist. The electrical hook-up may require a licensed electrician.

Nor-Lake KLB7468-C Specifications

Nominal Width6 Feet
Nominal Depth8 Feet
BrandNor-Lake
Refrigerant TypeR-290
Refrigeration MountedTop
Made inUSA
ShippingQuick Ship Model
CategoryWalk In Cooler, Modular, Self-Contained
Capacity270 Cubic Feet
Compressor LocationTop Mounted
Door TypeSolid
Door DesignSwing
With FloorFloor Included
Temperature Range35 - 38 Degrees F
UsageIndoor
Voltage208/230 Volts
Width (in)72
Height (in)88
Depth (in)96
Weight1148.00

Nor-Lake KLB7468-C Description

Kold Locker™, Indoor +35°F Cooler, 6' x 8' x 7'-4" H, floorless, 26 gauge embossed coated steel interior & exterior finish, self-closing door, locking deadbolt handle, KL2 QUALIFIER, CPB050PC-S-0, R290 Capsule Pak Refrigeration, 115v/60/1-ph

The KLB7468-C 6' x 8' x 7'-4" H Kold Locker from NorLake is an easy pick for anyone looking for a dependable 7’4” high indoor walk-in unit without a floor. In total, this walk-in coolers with top mounted compressor offers 231 cu. ft. of refrigerated space.

The cooler is constructed from 4” thick panels that feature 26 gauge steel with a stucco embossed, corrosion-resistant coating. EPA-compliant foamed-in-place polyurethane insulation is used. Connecting panels together is easy with female and male rails that provide a perfect fit that allows the foamed-in-place cam locking fasteners to fully tighten to make an airtight connection. Around the outer perimeter, a continuous panel gasket provides a barrier that is free from cuts or breaks. The ceiling panels feature foamed-in-place edge caps that will stay in place for the life of the cooler.

Kold Locker walk-in units come standard with a 26” wide door, this door is designed with a stepped profile that acts as a barrier decreasing airflow for better energy-efficiency. A wider 30” door can be selected at no extra cost. It comes with a stainless steel kick plate for additional protection. The door is mounted on two cam-lift hinges that can be installed on the left or right of the unit. The hinges are field-adjustable to adjust how the door hangs for smooth opening and closing and can be locked in with a set screw. A spring-actuated door closer is included to make sure the door is never left ajar. The door panel is 4’ wide with the door pre-hung from the factory. A replaceable perimeter heating wire is included as well as a vapor proof LED lighting fixture that is activated by a switch complete with an exterior indicator light, a digital thermometer, and magnetic stainless steel trim. The interior is secured with an NL 9800 deadbolt handle with an independent key/padlock feature. To keep workers safe, the interior has a safety release to make sure they are never locked in.

A temperature between 35°F and 38°F is efficiently maintained by the ceiling-mounted RCPB050JC-S-0-EV Capsule Pak Refrigeration System that produces 4060 BTU/hr of heat rejection. The Enviro-Control™ electronic controller system sets the temperature inside the walk-in and also sets the automatic defrost timer. To remove the need for a drain line, an automatic condensate vaporizer is shipped loose with the unit and needs to be field wired.

Nor-Lake KLB7468-C Walk-In Cooler & Top Mounted Compressor

Kold Locker *Walk-In Coolers with Top Mounted Compressor*
Standard Features:
  • STANDARD MODELS SHIP THE SAME DAY
  • DOE compliant
  • USDA accepted
  • Magnetic gasket
  • 15 year panel warranty
  • Cooler or freezer models
  • Indoor or outdoor models
  • 26" wide, self-closing door
  • CN UL flame spread listed
  • Perimeter door heater wire
  • Floor double sweep gasket
  • Spring actuated door closer
  • Sizes from 4' x 6' to 10' x 14'
  • Two temperatures: +35°F, -10°F
  • 18 months parts & labor warranty
  • Digital thermometer and light switch
  • Heavy duty adjustable cam-lift hinges
  • Three heights: 6'7" & 7'7" with floor; 7'4" floorless
  • Air-cooled condensing unit (wall mount - 10 day ship)
  • Smooth aluminum interior floor (on models with floor)
  • Floorless models supplied with NSF listed vinyl sealers
  • Oregon State listed, City of Houston listed & California State listed
  • Automatic condensate vaporizer. No drain line required on indoor units
  • Capsule Pak™ refrigeration system (ceiling or wall mount) (ordered separately)
  • Full 4" thick panels foamed-in-place with EPA-compliant polyurethane insulation
  • Deadbolt locking handle with independent key/padlock feature and inside safety release
  • Time clock or electronic control provided for automatic defrost on both coolers and freezers
  • 26 gauge corrosion resistant stucco embossed coated steel on all surfaces except interior floor
  • NSF, UL flame spread 25 or less on all foam cores; UL and CSA electrical listing on door sections
  • UL, C-UL listing on complete Capsule Pak™ refrigeration systems (see page 11 for listed components)
  • High output low profile LED light positioned above the door to prevent interference with shelving or product
Indoor Models
  • Hot gas condensate vaporizer available on many models
Outdoor Models
  • Refrigeration hood
  • -20°F ambient controls
  • White membrane roof and trim
Optional Features
  • Exterior ramp
  • Electric vaporizer
  • Floor tread plate kit
  • U-shaped shelving system
  • Door hood (outdoor models)
  • Five year compressor warranty
  • Condensing unit air deflector kit
  • Heights: 8'7" with floor, 8'4" without floor
  • Leak detector/alarm (may be a requirement in some areas)
  • Heater kit for outdoor use where ambient conditions may go below 32°F
  • Note: (Most options are available two weeks from receipt of order. Please contact us for specific questions)

Options for Nor-Lake KLB7468-C

Door width
Celsius thermometer, lights & trim
Flat freight program
Non-skid strips
Lift gate delivery
NOTE:
Capsule Pak refrigeration
What is included
  • Temperature NOTE:: NOTE: Coolers are designed for +35 degree room temperature with 90 degree ambient and 100 degree temperature at condensing unit. Less floor coolers assumed no insulation under floor slab.
  • Install note: NOTE: A licensed electrician and refrigeration installer may be required to make all necessary refrigeration and electrical connections
  • Panel warranty: 15 year original equipment panel warranty
  • Manufacturer Note: Pricing is valid for 60 days upon receipt of purchase order AND approved drawing (if applicable). Order must ship per our current standard lead time or pricing will be subject to change. All shipments will be FOB Hudson, WI or New Albany, MS.
  • Capsule Pak NOTE:: Capsule Pak™ refrigeration is sized for holding duty only. If the ambient is higher than 100 degrees F or pull down capacity is required, a regular (non-Quick Ship) quote will be needed.
  • Compressor warranty: 18 Month Labor/Service and original equipment parts warranty
  • NOTE:: This model may be applicable for our KL2 2-day leadtime program. **Program applies to models with R290 or R449A Capsule Paks, 26” doors and no additional accessories (30" & 36" doors available with a 10-day leadtime). Contact your Inside Sales Specialist for details and qualification requirements.
