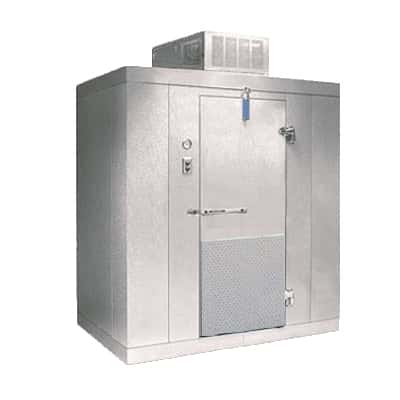

Nor-Lake KLB77612-C Walk-In Cooler & Top Mounted Compressor

KLB77612-C
Made in USA
Stock Status
Updating. Please wait...
Free Freight
$16,282.35

for more information

$10,978.03

You will earn 16282 Reward Points.

Product Protection
Coverage starting at
FINANCE

Monthly Payment *

Finance Payment Calculator
$235.92
* The above amount may vary depending on the applicant's credit history.
  • 2023 model, meets the newest EPA and DOE codes.
  • A refrigeration Technician is not required.
  • Our Exclusive FREE extras:
  • Stainless Steel 30'' x 36'' door kick-plate
  • Standard features
  • Full 4” thick panels foamed-in-place with HFC-245fa polyurethane insulation which is CFC and HCFC free
  • Free electronic controls and digital thermometer
  • Note! Refrigeration systems weigh 175lbs to 350lbs. and may require a hoist. The electrical hook-up may require a licensed electrician.

Nor-Lake KLB77612-C Specifications

Nominal Depth12 Feet
Nominal Width6 Feet
BrandNor-Lake
Refrigerant TypeR-290
Refrigeration MountedTop
Made inUSA
ShippingQuick Ship Model
CategoryWalk In Cooler, Modular, Self-Contained
Compressor LocationTop Mounted
With FloorFloor Included
UsageIndoor
Voltage115 Volts
Width (in)72
Height (in)91
Depth (in)144
Weight1655.00

Nor-Lake KLB77612-C Description

Kold Locker™, Indoor +35°F Cooler, 6' x 12' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, self-closing door, locking deadbolt handle, CPB075PC-S-0, R290 Capsule Pak Refrigeration, 115v/60/1-ph

To efficiently store and easily access refrigerated goods in bulk, a walk-in cooler like the KLB77612-C 6' x 12' x 7'-7" H Kold Locker from NorLake is a great option. The interior of this walk-in coolers with top mounted compressor offers 418 cu. ft. of refrigerated space.

The 4” thick panels that make up this cooler are made from 26 gauge steel encasing foamed-in-place insulation to achieve an R-value of 25, Both sides of the 25 gauge steel feature an embossed stucco finish for corrosion resistance. The panels have male and female rails that mate together to ensure proper alignment during installation. Foamed-in-place cam locking fasteners provide an air-tight seal while a continuous panel gasket goes around the outer perimeter without breaks or cuts at the corners. The ceiling and floor panels on this unit have edge caps that are foamed-in-place rather than mechanically fastened to prevent them from coming loose.

The door that ships standard with this walk-in unit is 26” wide and comes with a stepped profile providing a barrier against airflow. The two hinges can be installed on the right or left of the door and include field-adjustable cam-lifts with a locking set screw. A spring-actuated door closer makes sure it’s never left ajar to keep cooling costs low. The 4-foot wide door panel comes with the door pre-hung and includes a vapor-proof LED lighting fixture activated by a switch connected to an external indicator light, replaceable heating wire, stainless steel trim, and a digital thermometer. To keep items inside secure, an NL 9800 deadbolt handle is included with an independent key/padlock feature. To prevent lock-ins there is a safety release inside.

Cooling is provided by a ceiling-mounted RCPB050JC-S-0-EV Capsule Pak Refrigeration System producing 4060 BTU/hr that will maintain a temperature from 35°F to 38°F efficiently.  The Enviro-Control™ system allows the interior temperature to be set and maintained efficiently. The controller is also used to set the defrost timer and activate a manual defrost cycle. To eliminate the need for drain lines, a condensate vaporizer is included.

Kold Locker *Walk-In Coolers with Top Mounted Compressor*
Standard Features:
  • STANDARD MODELS SHIP THE SAME DAY
  • DOE compliant
  • USDA accepted
  • Magnetic gasket
  • 15 year panel warranty
  • Cooler or freezer models
  • Indoor or outdoor models
  • 26" wide, self-closing door
  • CN UL flame spread listed
  • Perimeter door heater wire
  • Floor double sweep gasket
  • Spring actuated door closer
  • Sizes from 4' x 6' to 10' x 14'
  • Two temperatures: +35°F, -10°F
  • 18 months parts & labor warranty
  • Digital thermometer and light switch
  • Heavy duty adjustable cam-lift hinges
  • Three heights: 6'7" & 7'7" with floor; 7'4" floorless
  • Air-cooled condensing unit (wall mount - 10 day ship)
  • Smooth aluminum interior floor (on models with floor)
  • Floorless models supplied with NSF listed vinyl sealers
  • Oregon State listed, City of Houston listed & California State listed
  • Automatic condensate vaporizer. No drain line required on indoor units
  • Capsule Pak™ refrigeration system (ceiling or wall mount) (ordered separately)
  • Full 4" thick panels foamed-in-place with EPA-compliant polyurethane insulation
  • Deadbolt locking handle with independent key/padlock feature and inside safety release
  • Time clock or electronic control provided for automatic defrost on both coolers and freezers
  • 26 gauge corrosion resistant stucco embossed coated steel on all surfaces except interior floor
  • NSF, UL flame spread 25 or less on all foam cores; UL and CSA electrical listing on door sections
  • UL, C-UL listing on complete Capsule Pak™ refrigeration systems (see page 11 for listed components)
  • High output low profile LED light positioned above the door to prevent interference with shelving or product
Indoor Models
  • Hot gas condensate vaporizer available on many models
Outdoor Models
  • Refrigeration hood
  • -20°F ambient controls
  • White membrane roof and trim
Optional Features
  • Exterior ramp
  • Electric vaporizer
  • Floor tread plate kit
  • U-shaped shelving system
  • Door hood (outdoor models)
  • Five year compressor warranty
  • Condensing unit air deflector kit
  • Heights: 8'7" with floor, 8'4" without floor
  • Leak detector/alarm (may be a requirement in some areas)
  • Heater kit for outdoor use where ambient conditions may go below 32°F
  • Note: (Most options are available two weeks from receipt of order. Please contact us for specific questions)

Options for Nor-Lake KLB77612-C

Door width
Celsius thermometer, lights & trim
Door ramp & non-skid strips
Flat freight program
Lift gate delivery
NOTE:
Capsule Pak refrigeration
What is included
  • Temperature NOTE:: NOTE: Coolers are designed for +35 degree room temperature with 90 degree ambient and 100 degree temperature at condensing unit. Less floor coolers assumed no insulation under floor slab.
  • Install note: NOTE: A licensed electrician and refrigeration installer may be required to make all necessary refrigeration and electrical connections
  • Panel warranty: 15 year original equipment panel warranty
  • Manufacturer Note: Pricing is valid for 60 days upon receipt of purchase order AND approved drawing (if applicable). Order must ship per our current standard lead time or pricing will be subject to change. All shipments will be FOB Hudson, WI or New Albany, MS.
  • Capsule Pak NOTE:: Capsule Pak™ refrigeration is sized for holding duty only. If the ambient is higher than 100 degrees F or pull down capacity is required, a regular (non-Quick Ship) quote will be needed.
  • Compressor warranty: 18 Month Labor/Service and original equipment parts warranty
Door hinging
