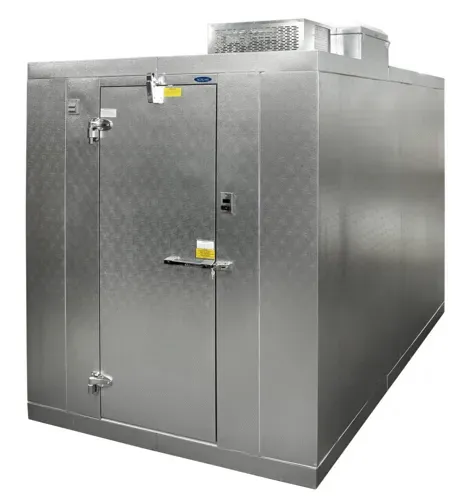

Nor-Lake KLB7766-C Walk-In Cooler & Top Mounted Compressor

KLB7766-C
Made in USA
Stock Status
Updating. Please wait...
Free Freight
$12,771.68

for more information

$8,611.03

You will earn 12772 Reward Points.

Product Protection
Coverage starting at
FINANCE

Monthly Payment *

Finance Payment Calculator
$185.05
* The above amount may vary depending on the applicant's credit history.
  • A refrigeration Technician is not required.
  • 2023 model, meets the newest EPA and DOE codes.
  • Our Exclusive FREE extras:
  • Stainless Steel 30'' x 36'' door kick-plate
  • Standard features
  • Full 4” thick panels foamed-in-place with HFC-245fa polyurethane insulation which is CFC and HCFC free
  • Free electronic controls and digital thermometer
  • Note! Refrigeration systems weigh 175lbs to 350lbs. and may require a hoist. The electrical hook-up may require a licensed electrician.

Nor-Lake KLB7766-C Specifications

Nominal Depth6 Feet
Nominal Width6 Feet
BrandNor-Lake
Refrigerant TypeR-290
Refrigeration MountedTop
Made inUSA
ShippingQuick Ship Model
CategoryWalk In Cooler, Modular, Self-Contained
Compressor LocationTop Mounted
With FloorFloor Included
UsageIndoor
Voltage115 Volts
Width (in)72
Height (in)91
Depth (in)72
Weight991.00

Nor-Lake KLB7766-C Description

Kold Locker™, Indoor +35°F Cooler, 6' x 6' x 7'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, self-closing door, locking deadbolt handle, KL2 QUALIFIER, CPB050PC-S-0, R290 Capsule Pak Refrigeration, 115v/60/1-ph

An indoor walk-in cooler like the NorLake KLB7766-C 6' x 6' x 7'-7" H Kold Locker is the most efficient way to manage and stoor refrigerated goods in bulk. This walk-in coolers with top mounted compressor offers a total of 196 cu. ft. of refrigerated space.

For superior insulation, each panel is 4” thick with foamed-in-place polyurethane insulation that is EPA-compliant. The interior and exterior sides of the panel feature 26 gauge steel with a corrosion-resistant embossed stucco finish. Kold Locker walk-in units are easy to assemble, each panel has male and female mating rails that make alignment easy while foamed-in-place cam locking fasteners lock the panels together for an airtight seal. The corners feature panel gaskets that go around the exterior perimeter continuously without any breaks or cuts. Edge caps on ceiling and floor panels are foamed-in-place that keep them in place through the life of the unit.

The standard 26” wide door has a stepped profile that acts as a barrier to airflow resulting in an energy-efficient door system. Two cam-lift hinges are included with the door and can be installed on the right or left. These hinges are field-adjustable to make sure the door swings freely while providing an airtight seal. A spring-assisted door closer is included to keep the door from being left ajar. The door is pre-hung in a 4-foot wide panel and features a magnetic stainless steel trim, digital thermometer, replaceable perimeter heating wire, and vapor proof LED light fixture actuated by a switch with external indicator light. Everything inside the walk-in is kept secure by an NL 9800 deadbolt handle with an independent key/padlock feature. To keep workers safe, a safety release inside the door panel makes sure no-one gets locked inside.

To efficiently maintain temperatures between 35°F and 38°F this walk-in unit has a ceiling-mounted RCPB050JC-S-0-EV Capsule Pak Refrigeration system that produces 4060 BTU/hr of cooling. The temperature inside the walk-in is adjusted with the Enviro-Control™ electronic controller system, it is also used to set the automatic defrost timer. Drain lines are not required thanks to the automatic condensate vaporizer included with the unit. The automatic condensate vaporizer ships loose and needs to be wired in the field.

Nor-Lake KLB7766-C Walk-In Cooler & Top Mounted Compressor

Kold Locker *Walk-In Coolers with Top Mounted Compressor*
Standard Features:
  • STANDARD MODELS SHIP THE SAME DAY
  • DOE compliant
  • USDA accepted
  • Magnetic gasket
  • 15 year panel warranty
  • Cooler or freezer models
  • Indoor or outdoor models
  • 26" wide, self-closing door
  • CN UL flame spread listed
  • Perimeter door heater wire
  • Floor double sweep gasket
  • Spring actuated door closer
  • Sizes from 4' x 6' to 10' x 14'
  • Two temperatures: +35°F, -10°F
  • 18 months parts & labor warranty
  • Digital thermometer and light switch
  • Heavy duty adjustable cam-lift hinges
  • Three heights: 6'7" & 7'7" with floor; 7'4" floorless
  • Air-cooled condensing unit (wall mount - 10 day ship)
  • Smooth aluminum interior floor (on models with floor)
  • Floorless models supplied with NSF listed vinyl sealers
  • Oregon State listed, City of Houston listed & California State listed
  • Automatic condensate vaporizer. No drain line required on indoor units
  • Capsule Pak™ refrigeration system (ceiling or wall mount) (ordered separately)
  • Full 4" thick panels foamed-in-place with EPA-compliant polyurethane insulation
  • Deadbolt locking handle with independent key/padlock feature and inside safety release
  • Time clock or electronic control provided for automatic defrost on both coolers and freezers
  • 26 gauge corrosion resistant stucco embossed coated steel on all surfaces except interior floor
  • NSF, UL flame spread 25 or less on all foam cores; UL and CSA electrical listing on door sections
  • UL, C-UL listing on complete Capsule Pak™ refrigeration systems (see page 11 for listed components)
  • High output low profile LED light positioned above the door to prevent interference with shelving or product
Indoor Models
  • Hot gas condensate vaporizer available on many models
Outdoor Models
  • Refrigeration hood
  • -20°F ambient controls
  • White membrane roof and trim
Optional Features
  • Exterior ramp
  • Electric vaporizer
  • Floor tread plate kit
  • U-shaped shelving system
  • Door hood (outdoor models)
  • Five year compressor warranty
  • Condensing unit air deflector kit
  • Heights: 8'7" with floor, 8'4" without floor
  • Leak detector/alarm (may be a requirement in some areas)
  • Heater kit for outdoor use where ambient conditions may go below 32°F
  • Note: (Most options are available two weeks from receipt of order. Please contact us for specific questions)

Options for Nor-Lake KLB7766-C

Door width
Celsius thermometer, lights & trim
Door ramp & non-skid strips
Flat freight program
Lift gate delivery
NOTE:
Capsule Pak refrigeration
What is included
  • Temperature NOTE:: NOTE: Coolers are designed for +35 degree room temperature with 90 degree ambient and 100 degree temperature at condensing unit. Less floor coolers assumed no insulation under floor slab.
  • Install note: NOTE: A licensed electrician and refrigeration installer may be required to make all necessary refrigeration and electrical connections
  • Panel warranty: 15 year original equipment panel warranty
  • Manufacturer Note: Pricing is valid for 60 days upon receipt of purchase order AND approved drawing (if applicable). Order must ship per our current standard lead time or pricing will be subject to change. All shipments will be FOB Hudson, WI or New Albany, MS.
  • Capsule Pak NOTE:: Capsule Pak™ refrigeration is sized for holding duty only. If the ambient is higher than 100 degrees F or pull down capacity is required, a regular (non-Quick Ship) quote will be needed.
  • Compressor warranty: 18 Month Labor/Service and original equipment parts warranty
  • NOTE:: This model may be applicable for our KL2 2-day leadtime program. **Program applies to models with R290 or R449A Capsule Paks, 26” doors and no additional accessories (30" & 36" doors available with a 10-day leadtime). Contact your Inside Sales Specialist for details and qualification requirements.
Door hinging
