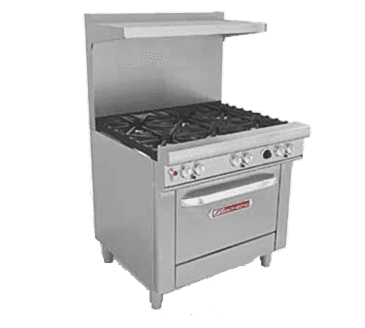

Southbend H4361A-2GR Ultimate Restaurant Range 114,000 BTU

Southbend H4361A-2GR Ultimate Restaurant Range 114,000 BTU

Southbend H4361A-2GR Ultimate Restaurant Range 114,000 BTU
Request a Quote

You will earn 6,307 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $158.18/mo.
Free Freight

  • Please see specification sheet for installation clearance requirements

This 36" wide with a 37” high cooking top ultimate range is available in either gas or electric with 2 non-clog burners, standard grates, (1) 24" griddle left, standing pilot, 1 electric hybrid convection oven.  It also includes 3 racks and 22 1/2" flue riser with shelf. This is very easy to clean with its stainless steel front, sides and shelf standard. Also comes with 6” stainless steel adjustable legs standard (casters optional). This unit also features a standing pilot for open top burners, battery spark ignition for oven bases, front located manual gas shut-off to entire range and factory installed regulator.  The oven interior is double sided with full porcelain enamel oven cavity for superior cleanability and corrosion protection. Coved corners for easy cleaning and enhanced airflow eliminating hot/cold spots.

The range top has 27” deep cooking surface. Center-to-center measurements between burners are not less than 12”, side-to-side or front-to-back. For easy cleaning, removable one piece drip tray is provided under burners to catch grease drippings.  This is known to be one of the toughest commercial ranges in the industry. This ultimate range is built to last and 100% made in the USA.

Options & Accessories

5" Flue riser

10” Flue Riser

Extra Oven Racks

Rear step up burners

Casters-all swivel-front with locks

Hot Top plate - plate replaces 2 Open burners

Cabinet base doors (No Charge) Dimensions -in (mm)

Flame Failure available (Contact factory for available model numbers)

Battery spark ignition for open tops, charbroilers,  griddles and hot tops

Various salamander & cheesemelter mounts available. (Please refer to the price list)

3/4” quick disconnect with flexible hose complies with ANSI Z 21.69 (specify 3ft, 4ft, 5ft)

Optional 33K Non-clog Burners (Burner Option 1)

33,000 BTU NAT

(6) patented, one piece, lifetime clog free, cast iron burners

Optional Wavy Grates (Burner Option 2)

Allows full use of entire range top

Cast bowl design for better efficiency

Available only with 27K BTU Non-clog burners

Optional Cast Iron Star/Saute' Burners (Burner Option 3)

(6) 33,000 BTU NAT star burners

Port arrangement allows for even distribution of flame

Optional Split Burner Configuration (Burner Option 4)

(3) Star/Saute’ burners in front and (3) standard 33K burners in rear

Optional 5 Burner Configuration (Burner Options 5 and 6)

33K burners (Opt 5) or (3) star 33K burners (Opt 6) in the front

Combine (2) Pyromax burners in the rear with either (3) standard

Optional Pyromax Burners (Burner Option 7)

40,000 BTU NAT

Group of 4 burners available

Built in port protection drip ring

PATENTED high output, three piece, easy clean Non-clog burner

Optional Griddle Top (L or R)

12”, 24" or 36" Available

Manual or thermostatically controlled

1/2" thick cold rolled steel griddle plate

Optional Charbroiler (L or R)

24” or 36” Available

Removable, cast iron grates

Back riser options
Flex hoses & restraining device
Auxiliary griddle
Spark ignition
Correction & prison options
Additional oven rack
Top options
Gas types
Factory note
Standard warranty
Extended warranty
Heat Gas/Electric
Width (in)36.5
Height (in)59.5
Depth (in)43.6
