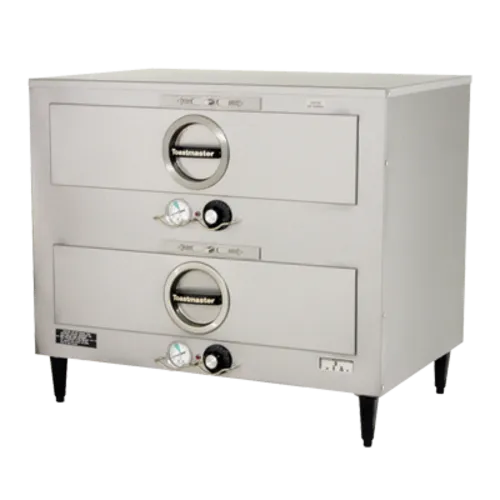

Toastmaster 3B84DT72 Food Warming Drawer Unit

Food Warming Drawer Unit, free standing, (2) drawers, (2) 12" x 20" x 5" pan capacity, thermostatic controls, fully insulated, stainless steel exterior finish, 4" legs, 208/240v, cETLus, ETL-Sanitation, Made in USA (not available with 120V)

Standard Features:

Controls:

• Temperature is regulated by hydraulic thermostat adjustable from 100oF to 200oF, with “OFF” position. Thermostat control is mounted on front below the drawer and is equipped with adjacent signal light. Thermostat knob is protected by a knob guard.

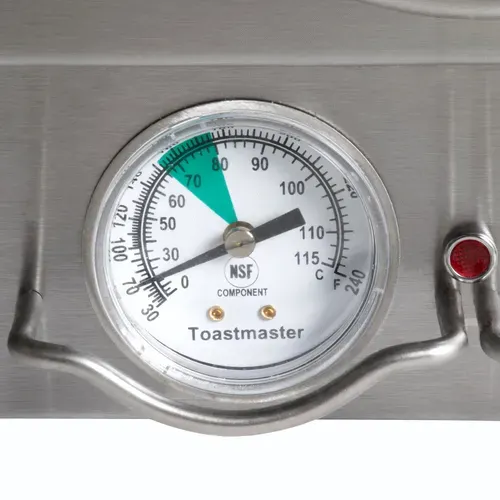

• The moisture control adjustment knob is located at the center front above the drawer. A thermometer accurately reflects the temperature at the coolest point inside the server. This safety feature helps ensure that food products are being held at a temperature above the bacterial growth level, and at temperatures below those that may over cook or dry out food product.

Controls:

• Unit is designed to hold precooked foods at serving temperature, ideal for baked potatoes, vegetables, ribs, buns and rolls. Each drawer holds one 12” x 20” pan, 5-1/4” deep.

Warranty:

• Warranty includes one year parts and labor, on-site service. (USA only) Call factory for warranty authorization.

Application:

• Hot food servers are designed to hold cooked foods at a safe, thermometer verified serving temperature and proper moisture content. Hot food can be placed into the drawer either directly or in separate open pans or containers. Holding temperature and moisture content can be set for the type of food being held.

General Information:

• Freestanding, drawer-type hot food server. The drawer is furnished with a removable, deep drawn stainless steel pan. This model includes a set of 4” NSF approved adjustable legs.

Heating:

• Heating is accomplished with performed tubular heating elements.

Construction:

• The frame is of welded and reinforced sheet steel. The exterior cabinet and drawer fronts are of stainless steel with an aluminized steel inner lining. Drawers are equipped with a handle operated latching mechanism and positive stop. Drawers glide on third member suspension system rails. Third members have five (5) roller bearings (load support) and five (5) guide bearings (smooth operation) each (i.e. twenty (20) bearings per drawer).

Insulation:

• Fully insulated on all six sides, including drawer fronts.

Electrical:

• Provide with a factory installed 3 foot cord and plug: NEMA 5-15 plug for 120V, NEMA 6-15 plug for 208/240V. Single phase only. See electrical data chart on reverse side.
