Traulsen RHF232WP-HHS 55.8 cu. ft. Solid Half Height Door 2 Section Pass-Thru Heated Cabinet

SKU#: RHF232WP-HHS
Traulsen RHF232WP-HHS 55.8 cu. ft. Solid Half Height Door 2 Section Pass-Thru Heated Cabinet
Free Freight?
Quick Ship
Energy Star Energy Star ?
Products with Energy Star certification are designed to be more energy-efficient to maximize savings.
$24,959.88

Contact us for your price

Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET

Why don't we show the price for this item?

$23,825.34

Contact us for your price

Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET

Why don't we show the price for this item?

or enjoy small payments $512.01/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 24960
  • Usually ships in 4-6 weeks
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

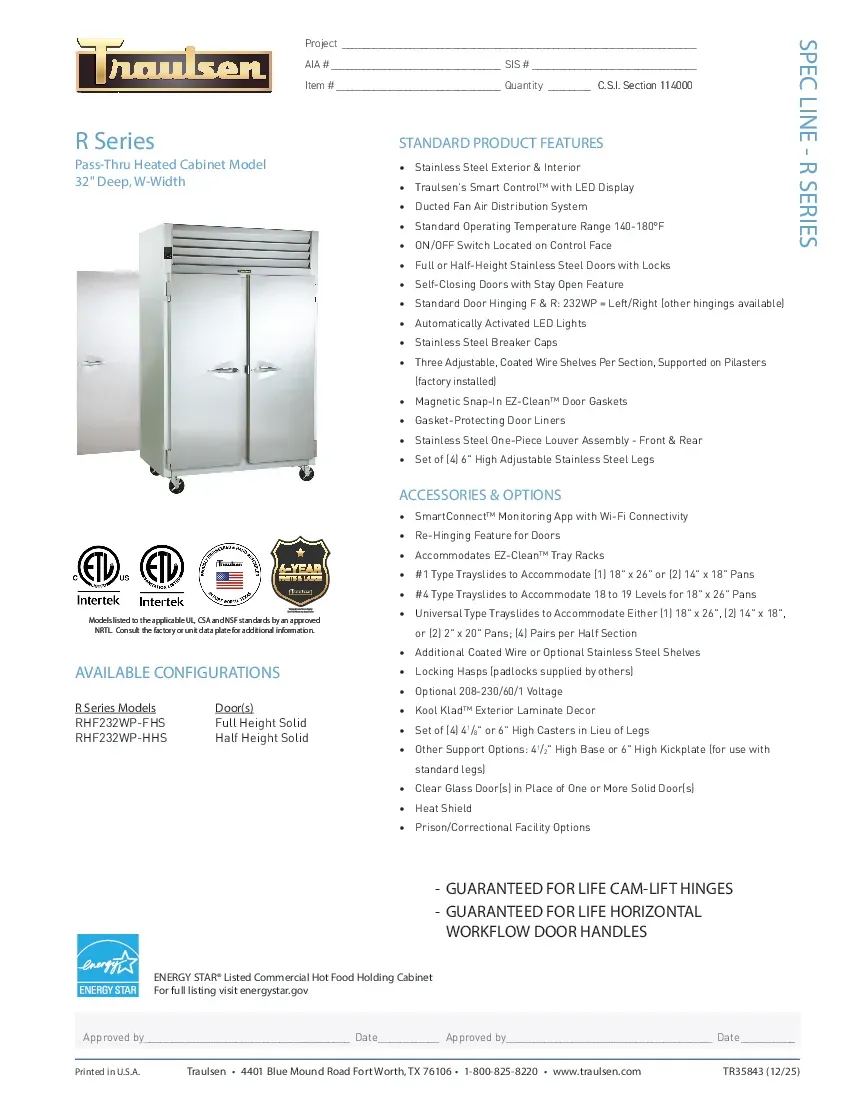

Traulsen RHF232WP-HHS Specifications

Door SizeHalf Height
SizeHalf Height
Cabinet TypeHeated Cabinets
TypeHolding Cabinets
Interior ConstructionShelves
Product LineSpec Series
ConstructionStainless Steel
InsulatedYes
BrandTraulsen
Energy EfficiencyEnergy Star
CertificationsETL
Split DoorsYes
Controlled HumidityYes
Number of Doors8
Control TypeMicroprocessor
ControlsMicroprocessor
Capacity55.8 cu. ft.
Door TypeSolid
MaterialStainless Steel
Sections2
StylePass-Thru
Voltage115/208 Volts
Wattage3,000 Watts
Width (in)58
Height (in)83.25
Depth (in)37.94
Weight725

Traulsen RHF232WP-HHS Certifications

ETL

ETL

The ETL Mark is proof of product compliance to North American safety standards.

ETL-Sanitation

ETL-Sanitation

This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

Traulsen RHF232WP-HHS Description

Spec-Line Heated Cabinet, Pass-thru, two-section, stainless steel exterior and interior, standard depth cabinet, half-height doors, with EZ-Clean Gaskets, (3) clear coated adjustable shelves per section, microprocessor controls, 6' adjustable stainless steel legs, cETLus, ETL-Sanitation
Spec-Line Pass-Thru Holding Cabinet, two-section, stainless steel exterior and interior, standard depth cabinet, half-height door or doors with Santoprene® EZ-Clean Gaskets, (3) chrome plated adjustable shelves per section, INTELA-TRAUL™ microprocessor controls, 6" adjustable stainless steel legs, NSF, UL rated (more holding cabinets and food holding and warming equipment available)

Standard Features:
Traulsen dependable pass-thru hot food holding cabinets are built using our high-performance ducted fan air distribution system. Unlike designs which simply radiate heat, this minimizes temperature stratification inside the cabinet, while providing for quicker daily start-up, lower energy usage, and reduced lifetime service costs. Each is supplied standard with easy to operate microprocessor controls, stainless steel exteriors, and are communications capable.
  • Stainless Steel Breaker Caps
  • Ducted Fan Air Distribution System
  • Gasket-Protecting Metal Door Liner
  • Guaranteed For Life Cam-Lift Hinges
  • Three-Year Parts And Labor Warranty
  • ON/OFF Switch Located On Control Face
  • R-Series: Stainless Steel Exterior & Interior
  • Automatically Activated Incandescent Lights
  • Magnetic Snap-In EZ-Clean Door Gasket(s)
  • INTELA-TRAUL® Microprocessor Control System
  • 9' Cord & Plug Attached (one section models only)
  • Full or Half-Length Stainless Steel Doors With Locks
  • One-Time Start-Up Temperature Adjustment Feature
  • Standard Operating Temperature Range 140 to 180°F
  • Set of Four (4) 6" High Adjustable Stainless Steel Legs
  • Guaranteed For Life Horizontal Work Flow Door Handles
  • Stainless Steel One-Piece Louver Assembly - Front & Rear
  • Self-Closing Doors With Stay Open Feature At 120 Degrees
  • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
  • Three Adjustable Wire Shelves Per Section, Supported On Pilasters (installed at the factory)
  • Standard Door Hinging F & R: 132W = Right, 232W = Left/Right, 332W = Left/Right/Right (other hingings available)
Options & Accessories:
  • Additional Wire Shelves
  • Export 220/50/1 Voltage
  • Re-Hinging Feature For Door(s)
  • Kool Klad Exterior Laminate Decor
  • Prison/Correctional Facilities Options
  • EZ-Open Foot Pedal (full height doors only)
  • Locking Hasps (padlocks supplied by others)
  • 115/60/1 Voltage (single section models only)
  • Set of Four (4) 6" High Casters In Lieu of Legs
  • 4-1/2" High Stainless Steel Base In Lieu of Legs
  • Stainless Steel Shelves In Lieu of Standard Wire
  • Set of Four (4) 4-5/8" High Casters In Lieu of Legs
  • Clear Glass Door(s) In Place Of One Or More Solid Door(s)
  • 6" High Stainless Steel Kickplate (for use with standard legs)
  • EZ-Change Interiors (#1, universals, universal heavy duty tray slides and shelves)
  • No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Pans
  • No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Pans (rod type, equips 1/2 section)
  • Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18", or (2) 12" x 20" Pans
Specifications:
Construction, Hardware and Insulation
  • Cabinet exterior front, one-piece sides, louver assembly and doors are constructed of 20-gauge stainless steel with a #4 finish. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with a gasket protecting metal door pan, removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a concealed switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handles are mounted horizontally over recess in door which limits protrusion from door face into aisleways. Doors have seamless, polished metal corners. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Both the cabinet and doors are insulated with an average of 2" thick high-density, non-CFC, foamed-in-place polyurethane.
Heating System
  • A low-watt density, serpentine-style heater is employed for the generation of electric heat. Low-velocity air is forced across its large surface area to efficiently move heat radiating away from these through a down-air distribution duct, where it is then evenly distributed throughout the cabinet, assuring the proper holding environment for hot food product, without drying. A vent, located at the top of the cabinet, is included for positive humidity control.
Controller
  • The easy-to-use water-resistant INTELA-TRAUL® microprocessor control system is supplied standard. RS485 data port enables data communications for remote monitoring such as NAFEM Data Protocol, E-Control Systems® and others. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.
Interior
  • Standard interior arrangements include three (3) wire shelves per section, mounted on pilasters. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Both standard and EZ-Change interior arrangements are installed at the factory.
Warranties
  • A three-year parts and labor warranty is provided standard.

Options for Traulsen RHF232WP-HHS

Tray slides & shelves
Export crating
Fluorescent lights
Correctional
Fluorescent light
Glass door
Locking devices
Rear door hinging
Front door hinging
Options & accessories
Mounting options
Voltages
What is included
  • Warranty: 6-year parts & labor, standard. Visit www.traulsen.com for details
