Cleveland Range Range KDL125 Kettle

Cleveland Range Range KDL125 Kettle
Free Freight
Price $22,126

for more information

Price $18,058

You will earn 18,058 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $426.53/mo.

  • Free Start-Up Program: Includes a performance check-out by Factory Authorized Servicer after installation and equipment demonstration by factory trained sales rep.

BrandCleveland Range
Kettle MaterialStainless Steel
Exterior FinishStainless Steel
Capacity125 Gallon
You May Also Need

Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

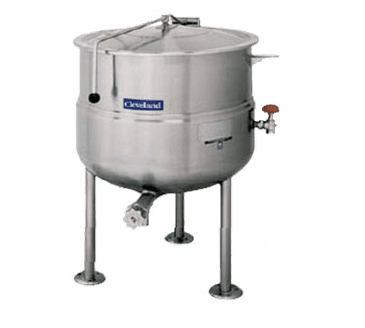

Kettle, direct steam, 125-gallon capacity, 2/3 steam jacket design, open tri-leg base, stainless steel exterior finish, 2" tangent draw-off, spring assist cover, 35 psi rating
Standard Features:
  • Faucet Mounting Bracket
  • Steam Control Inlet Valve
  • Typical approvals include NSF and ASME
  • Condensate Drain Valve with insulated handle
  • 2˝ diameter Tangent Draw-off Valve with Drain Strainer
  • Type 304 Stainless Steel construction, #4 finish on kettle and supports
  • Spring-assisted Cover: domed, hinged, one-piece rotatable (not available on KDL-250)
  • 50 psi Steam Jacket Rating on 25 - 100 gal. models, 35 psi Steam Jacket Rating on 125 - 250 gal. models
  • 50 psi chrome plated Safety Valve on 25 - 100 gal. models, 35 psi chrome plated Safety Valve on 125 - 250 gal. models
  • For Tri-leg Models: Tri-leg supports of 1.63˝O.D., Type 304 Stainless Steel tubular construction, with level adjustable Flanged Feet for Floor Bolting
  • For Pedestal Models: Pedestal support of Type 304 Stainless Steel with .75˝ thick floor plate, (level adjustable for sloping floors), comes with Stainless Steel Collar for sealing
Options & Accessories:
  • Lift-off Covers (CL)
  • Drain Strainers (DS-)
  • Gallon Markings (KM)
  • Measuring Strips (MS)
  • Correctional Packages
  • Water Meter Stand (SWM)
  • Insulated Outer Jacket (IOJ)
  • Swing Funnels for drain (SF)
  • 3" diameter Butterfly Valve (BV3)
  • Automatic Water Meter (GMF or LMF)
  • Pre-Rinse Spray Head and Hose (PRSK)
  • 3" diameter Tangent Draw-Off Valve w/Strainer (TD3)
  • Cooking Baskets and Tri-Basket Supports (BS and TBS)
  • 100 psi Pressure Option (PO) (for 125 gallons and larger)
  • Hot and cold or cold only Kettle Filler with 60˝ Hose (DKF-K or SKF-K)
  • Type 316 Stainless Steel Kettle Liner for high acid food products (316-G)
  • Pressure Reducing Valve for regulating incoming steam pressure of over 45 psi (PRV-K)
  • Chrome plated Steam Control Kit includes: Steam Traps, Condensate Strainers, Check Valves, nipples and fittings, factory assembled and mounted on kettle (SCK1)
  • Kettle Accessory Kit (KAK) includes:
    • 24 oz. Ladle (KL)
    • Draw-off Brush (DB)
    • Clean-up Brush (CB)
    • 36˝ Kettle Whip (KW)
    • 36˝ Kettle Brush (KB)
    • 36˝ Kettle Paddle (KP)
Correctional packages
Heat deflector
Kettle kits & accessories
Steam control
K-12 warranty
Draw-off valves
Extended warranty
