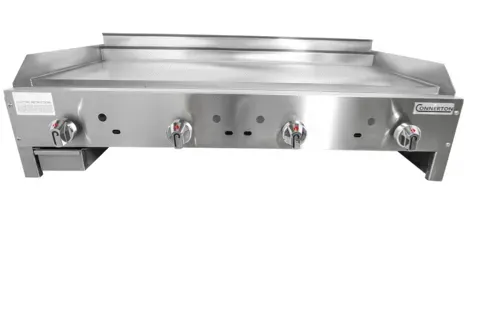

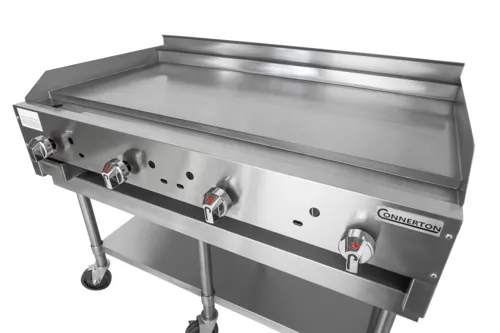

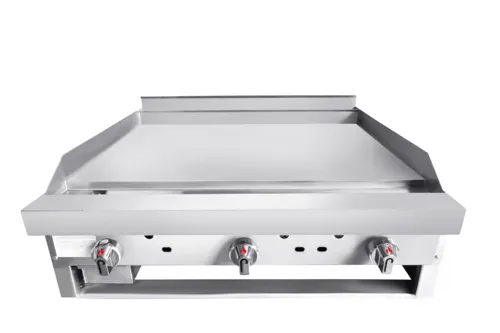

Connerton CG-42-M-S 1" 42.00'' Countertop Gas Griddle with Manual Controls - 110,000 BTU
MPN#: CG-42-M
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Description
Connerton CG-42-M Description
Commercial Griddle, countertop, gas, 42"W x 32"D, 1" thick highly polished steel griddle plate, manual controls, 3/4" NPT rear gas connection, full welded stainless steel body, fire box, front panel, gutter, 3" high splash & drip pan, 90,000 BTU, NSF, CSA
Standard Features:
- ¾ NPT Gas Inlet
- 18 Gauge #304 Stainless Steel Drip Pan
- 3/4” Highly Polished Steel Plate (1” available)
- Heavy Duty Countertop Griddle Brass Valves
- 16 Gauge #304 Stainless Steel Body, Fully Welded
- Removable 18 Gauge #304 Stainless Steel Front Panel
- 16 Gauge #304 Stainless Steel Fire Box, Welded to Body
- 22,000 BTU Tubular Aluminized Steel Burners, U-Shaped
- 14 Gauge #304 Stainless Steel Gutter & Splash with 3” High
- 4.0” Natural, 11.0” Propane Gas Pressure (Inches Water Column)
- 1-1/2” sq. X 16 Gauge #304 Stainless Steel Legs (Floor Model) tubing welded to body with Stainless Steel undershelf and adjustable feet
- Note: More Restaurant Equipment, Cooking Equipment & Commercial Grills are available.
Available Options
- 4” Legs (welded to body)
- Stainless Steel Plate Shelf
Options
Q & A
Connerton CG-42-M Specifications
| Plate Thickness | 1 Inch |
|---|---|
| Total BTU | 56000 - 104000 |
| Installation Type | Countertop |
| Power Type | Liquid Propane |
| Cooking Surface Material | Polished Steel |
| Construction | Stainless Steel |
| With Griddle | Yes |
| Brand | Connerton |
| Certifications | NSF |
| Number of Burners | 3 |
| Control Type | Manual |
| BTU | 66,000 BTU |
| Heat | Gas |
| Usage | Standard Duty |
| Width (in) | 42 |
| Height (in) | 15.02 |
| Depth (in) | 320 |
| Weight | 265 |
Additional Information on Connerton CG-42-M
Connerton CG-42-M Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
