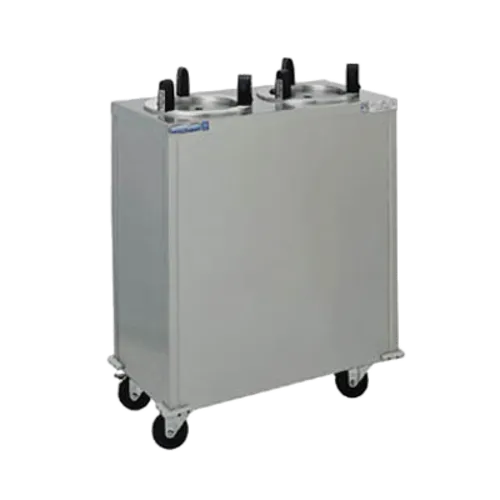

Delfield CAB2-650 Stainless Steel Enclosed Base 2 Stack Unheated Mobile Plate Dish Dispenser for 5-3/4" to 6-1/2" Dishes

Delfield CAB2-650 Stainless Steel Enclosed Base 2 Stack Unheated Mobile Plate Dish Dispenser for 5-3/4" to 6-1/2" Dishes

CAB2-650
Stock Status
Updating. Please wait...

Call us for price

1-800-555-0666

Delfield CAB2-650 Specifications

ModelCabinet
Base StyleEnclosed
Dispenser TypePlatter Dispenser
SeriesShelleymaticВ®
Heat TypeUnheated
BrandDelfield
Number of Compartments2
CertificationsNSF
TypeMobile
Casters4" casters
Dish Diameter5-3/4" to 6-1/2"
MaterialStainless Steel Construction & Plastic Guide Posts
Width (in)28.25
Height (in)36
Depth (in)17
Weight127

Additional Information on Delfield CAB2-650

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Delfield CAB2-650 Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

Delfield CAB2-650 Description

Shelleymatic® Dispenser, Plate, enclosed mobile design, two self-elevating dish dispensing tubes, maximum dish size approximately 6-1/2" diameter, stainless steel construction, 4" casters, cUL, UL, NSF (contact factory for price)
Shelleymatic® Plate Dispenser, enclosed mobile design, two self-elevating dish dispensing tubes, maximum dish size approximately 6-1/2" diameter, stainless steel construction, 4" casters, cUL, UL, NSF (more food holding and warming equipment available)

Standard Features:
  • Non-marring gray corner bumpers
  • Spring supports to be 14-gauge S/S
  • Field adjustable self-leveling mechanism
  • (4) 4.00” locking polyolefin swivel casters
  • One year parts and 90 day labor warranty
  • Cabinet top to be 16-gauge stainless steel
  • High impact plastic guide posts mounted to flange
  • Outer body and corners to be 20-gauge stainless steel
  • Dispenser flange, channels and bottom to be integrally welded
  • Carrier head made of welded rods with a removable 18-gauge top plate
  • Dispenser top flange, vertical side channels and bottom brace are stainless steel
  • Heated, QT & ET Features
    • 9’ cord and plug
    • Air intake shall be filtered
    • On/off switch on each dispense
    • ET maintains 120-140°F (49-60°C)
    • QT maintains 150-170°F (66-77°C)
    • Adjustable thermostat per dispenser
    • QT- stainless steel cover per dispenser
    • 22-gauge stainless steel jacket around dispenser
    • Convection heating module and fan motor per dispenser
Options & Accessories
  • Wrap-around bumpers
  • Four 4” or 5” polyurethane casters
  • Hold-down rod for dispenser tubes
  • Flange-mount feet in lieu of casters
  • Shorten dispenser tubes to special length
  • 220 volt, 50/60 cycle, single phase electrical connections
  • Stainless steel tube cover (-500 through -725 models only)
  • Stainless steel dome cover (-813 through -1450 models only)
  • 12” diameter S/S dish dispenser tray (-1200 and -1450 models only)
  • Rods for oval dishes and diameter adjustment (-813 through -1450 only)
  • Note: Inclusion of these options will alter the electrical specifications of unit
Specifications
Cabinet top shall be 16-gauge stainless steel with all corners welded and polished and reinforced with heavy-gauge channels. Cabinet exterior panels and corner support angles shall be 20-gauge stainless steel. Unit shall have four 4.00" (10cm) diameter polyolefin swivel casters (all locking), and non-marking gray bumpers at each corner. Dispenser tube shall have 3 vertical side channels and a bottom brace of 22-gauge stainless steel. Top supporting flange shall be 18-gauge stainless steel. Flange, channels and bottom brace shall be integrally welded together. Flange shall have 3 guide posts molded from high impact plastic. Self-leveling mechanisms shall be field adjustable by adding or removing stainless steel extension springs on perimeter of vertical side channels. The dish carrier head shall be stainless steel welded rods with a removable 18-gauge stainless steel top plate.

Options for Delfield CAB2-650

Casters or flanged feet
Exterior panels
Lift gate option
Shorten dispenser
