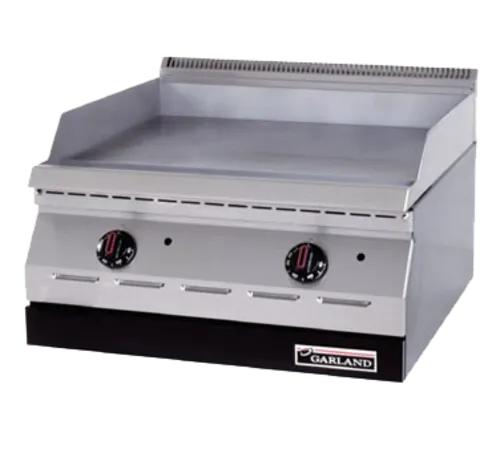

Garland US Range GD-24GTH Designer Series 24'' Countertop Gas Griddle with Thermostatic Controls - 40,000 BTU
SKU#: GD-24GTH
1/2
Free Freight?
Quick Ship
$4,060.00
Contact us for details
Calculate
Product Protection
Starting at
Attention!
Order by 10/15/2023 to save before the price increases!
Order by 10/15/2023 to save before the price increases!
- Please see specification sheet for installation clearance requirements
Garland US Range GD-24GTH Specifications
| Plate Thickness | 1/2 Inch |
|---|---|
| Total BTU | 12000 - 55000 |
| Installation Type | Countertop |
| Series | Designer Series |
| Power Type | Liquid Propane |
| Cooking Surface Material | Polished Steel |
| Construction | Stainless Steel |
| With Griddle | Yes |
| Brand | Garland/US Range |
| Number of Burners | 2 |
| Certifications | NSF |
| Control Type | Thermostatic |
| BTU | 40,000 BTU |
| Controls | Thermostatic |
| Heat | Gas |
| Usage | Standard Duty |
| Width (in) | 24 |
| Height (in) | 15 |
| Depth (in) | 24 |
| Weight | 146.00 |
Additional Information on Garland US Range GD-24GTH
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Garland US Range GD-24GTH Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Garland US Range GD-24GTH Description
Designer Series Griddle, countertop, gas, 24" W x 18" D cooking surface, 1/2" thick polished steel griddle, 2-5/8" welded splash guard on sides & rear of plate, thermostatic controls, piezo spark ignition, stainless steel front and sides, internal grease drawer with magnetic door, 4" adjustable legs, 40,000 BTU (Garland), CSA, NSF
Designer Series Griddle, countertop, gas, 24" W x 18" D cooking surface, 1/2" thick polished steel griddle, 2-5/8" welded splash guard on sides & rear of plate, thermostatic controls, piezo spark ignition, stainless steel front and sides, internal grease drawer with magnetic door, 4" adjustable legs, 40,000 BTU (Garland), CSA, NSF
Gas designer series Commercial Griddles in three widths: models GD-15G(GTH), 15" (381mm) wide; GD-24G(GTH), 24"(610mm) wide and GD-36G(GTH), 36" (914mm) wide. Designed as free standing or to be banked with other GD series equipment. 24" (610mm) deep x 15" (381mm) high, easy clean design with stainless steel front and sides, fully grooved or grooved section griddle available. Griddles valve (G) or thermostat (GTH) controlled, piezo spark ignition, natural or propane gas, input ratings of 20,000, 40,000 and 60,000 BTU. "CE" approved models have suffix FF and are equipped with Flame-Failure protection. Flame Failure protection is not available on thermostat controlled (GTH) models. Gas Input ratings shown here are for installations up to 2,000 ft. (610m) above sea level. Specify altitudes over 2,000 ft. Garland products are not approved or authorized for home or residential use, but are intended for commercial applications only. Garland will not provide service, warranty, maintenance or support of any kind other than in commercial applications.
Standard Features:
- Easy clean design
- Piezo spark ignition
- Natural or propane gas
- 4" (102mm) Sanitary legs
- Stainless steel front and sides
- 18" (457mm) deep cooking surface
- Hi-Lo Valve control, models have suffix G
- 20,000, 40,000 or 60,000 BTU total input
- Rear gas connection w/pressure regulator
- Thermostat control models have suffix GTH
- 1/2" (13mm) thick polished steel griddle with 2-5/8" (67mm) welded splash guard on sides and rear of plate
- "CE" approved models have suffix FF and are equipped with Flame-Failure protection, Flame Failure protection is not available on thermostat controlled (GTH) models
- Stainless steel back and bottom
- Fully grooved griddle, add suffix U (i.e. GD-15GU) or grooved sections, add U1 for 12"(305mm) on left side and U2 for 24" (610mm) on left side
- Note: Stands are available, see form # CS24/CSD
Gas designer series Commercial Griddles in three widths: models GD-15G(GTH), 15" (381mm) wide; GD-24G(GTH), 24"(610mm) wide and GD-36G(GTH), 36" (914mm) wide. Designed as free standing or to be banked with other GD series equipment. 24" (610mm) deep x 15" (381mm) high, easy clean design with stainless steel front and sides, fully grooved or grooved section griddle available. Griddles valve (G) or thermostat (GTH) controlled, piezo spark ignition, natural or propane gas, input ratings of 20,000, 40,000 and 60,000 BTU. "CE" approved models have suffix FF and are equipped with Flame-Failure protection. Flame Failure protection is not available on thermostat controlled (GTH) models. Gas Input ratings shown here are for installations up to 2,000 ft. (610m) above sea level. Specify altitudes over 2,000 ft. Garland products are not approved or authorized for home or residential use, but are intended for commercial applications only. Garland will not provide service, warranty, maintenance or support of any kind other than in commercial applications.
