Garland US Range MCO-E-25-C Double Deck Electric Convection Oven with Dials / Buttons Contols, 208-240 Volts
Contact us for details
Calculate
Order by 10/15/2023 to save before the price increases!
- Free after installation performance check
- Please see specification sheet for installation clearance requirements
Garland US Range MCO-E-25-C Specifications
| Range Base Style | Convection Oven |
|---|---|
| Control Type | Dials / Buttons |
| Deck | Double |
| Installation Type | Freestanding |
| Oven Interior Style | Standard Depth |
| Brand | Garland/US Range |
| Certifications | NSF |
| Power Type | Electric |
| Size | Half |
| Legs | 4" stainless steel legs |
| Interior Finish | Porcelain |
| Controls | Solid State |
| Timer | 60 Minute |
| Heat | Electric |
| Material | Stainless Steel |
| Voltage | 208/240 Volts |
| Wattage | 0.92 - 11 Kilowatts |
| Width (in) | 30.5 |
| Height (in) | 72.75 |
| Depth (in) | 25.25 |
| Weight | 680.00 |
Additional Information on Garland US Range MCO-E-25-C
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Garland US Range MCO-E-25-C Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

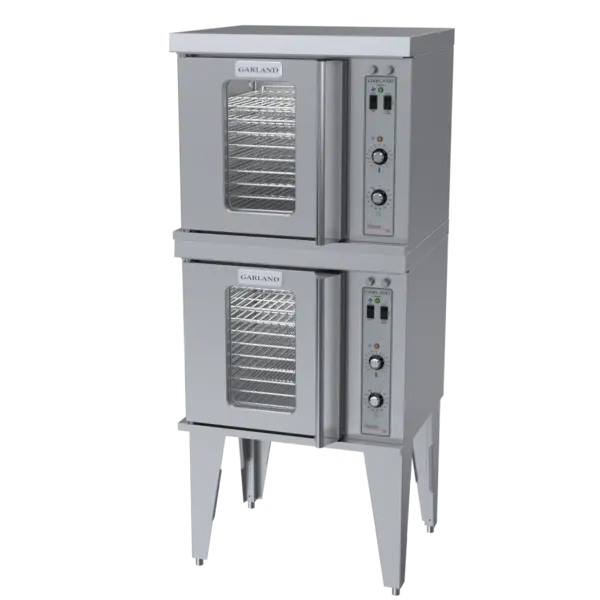

Garland US Range MCO-E-25-C Description
With two (2) porcelain-enameled interiors, this 15.5" wide MCO-E-25-C electric half-size double-deck convection oven by Garland is built for fast-paced kitchens!
With a stainless steel front, top, and sides, this cUL and NSF-certified unit promises excellent performance in tough kitchen conditions! The air-baffling system spreads the heat around the cavity to ensure proper temperatures and precise cooking. Heated at 5.6 kW elements, each section is concealed behind a double-pane thermal window that not only makes for an energy-efficient operation, but also allows you to check on the progress instantly.
Maximize the interior for improved productivity using the five (5) chrome-plated oven racks in each oven cavity that you can move up and down on the nine (9) rack guides.
Powered by a 2-speed 1/3 hp convection fan motor, this oven maintains temperatures between 150° to 500°F, which you can adjust using the Master 200 solid-state control complete with a one-hour timer.
This Delfield convection oven is mounted on 4" stainless steel legs with adjustable bullet leveling leg insert. This unit uses a 208 or 240-volt electrical connection with either single or three-phase.
Standard Features:
- Porcelain enameled oven interior
- Stainless steel front, sides, and top
- Total of 5.6 kW elements per oven cavity
- Double deck models available -Suffix 25-C
- Single door with double pane thermal window
- 5 chrome plated oven racks on 9-position rack guides
- 208 or 240 volt, single or three phase (please specify)
- 2 year limited parts & 1 year labor warranty (USA only)
- 1 year limited parts & labor warranty (USA & Canada only)
- 5 year limited door warranty, excluding window (USA & Canada only)
- 4” (102mm) stainless steel legs with adjustable bullet leveling leg insert
- 2-Speed 1/3 HP motor with thermal hi-limit and centrifugal switch protection
- 2 year limited parts & labor warranty (USA Kindergarden to Grade 12 schools only)
- Master 200 Solid State Control with 150° (66°C) to 500°F (260°C) temperature range
- 7.5 kW elements
- Extra oven racks
- Cord and plug set
- Stainless steel main back
- Solid stainless steel door, (no charge)
- 21 1/4” (540mm) stainless steel legs (double deck models only)
- Stainless steel equipment stand 34” (864mm) high with rack guides. (only for single deck models only)
- Swivel casters w/front brakes (single decks overall height 31 3/4” (806mm) double stacked units overall height 57” (1448mm) (Note: Casters can not be installed onto stands or stacked models with 21 1/4” legs.)
Garland Master Half-Size electric convection oven. 5.6 kW/ cavity, 1/3 HP fan motor with two-speed control. Porcelain enameled oven, 5 oven racks and 9-position rack guides, measures 15-1/2" (470mm)W x 20" (508mm)H x 21-1/8" (536mm)D. Stainless steel front, top, and sides. UL, CUL and NSF Listed.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
